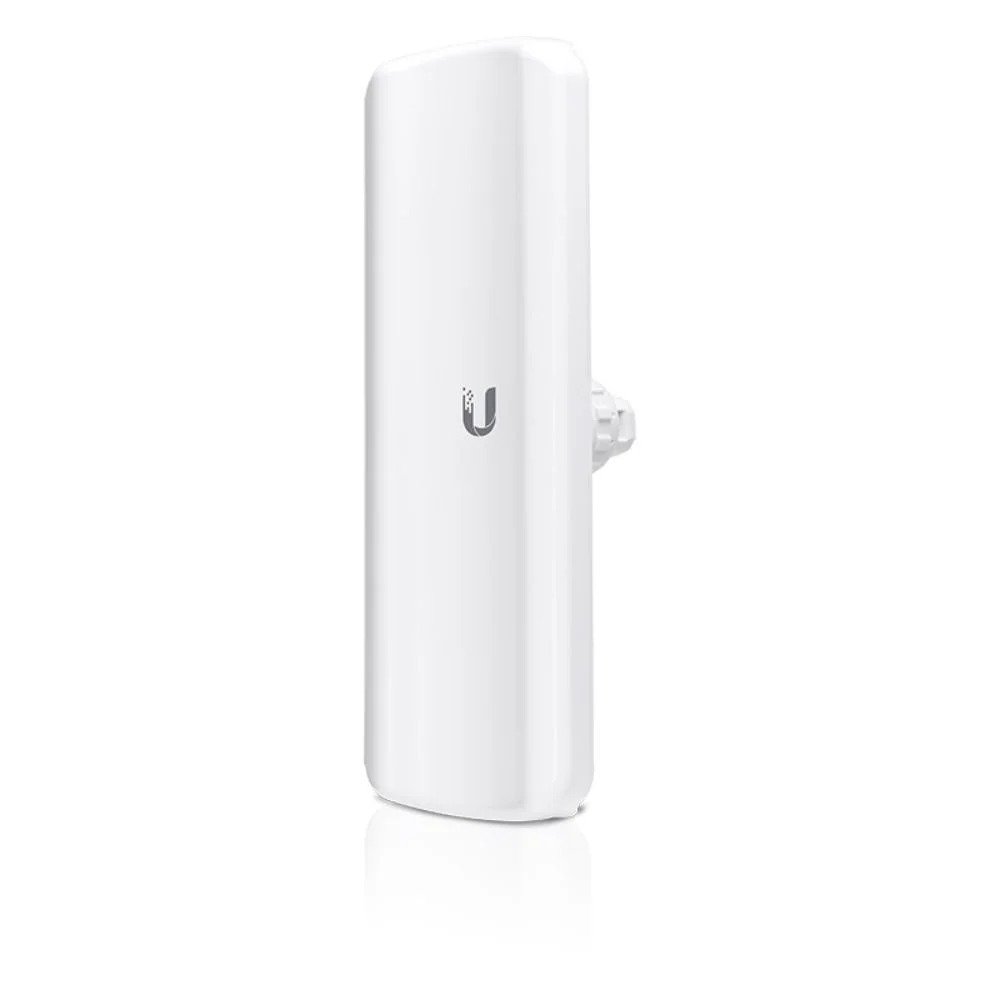

Ubiquiti LAP-GPS – airMAX Lite AP GPS 5GHz Sector Access Point
Short Description
- 5 GHz High-Performance airMAX AC Sector Access Point
- Up to 450+ Mbps Data Throughput
- 17 dBi Antenna Gain
- GPS Synchronization Support
- 5.15–5.875 GHz Operating Frequency
- Dedicated 2.4 GHz Management Radio
- 1 × 10/100/1000 Mbps Gigabit Ethernet Port
- 25 dBm Maximum TX Power
- airMAX AC Mode with TDMA Technology
- Access Point and Station Operating Modes
- 24V 0.3A Gigabit PoE Adapter Included
- Passive PoE Power
- 200 km/h Wind Survivability
- -40°C to +70°C Operating Temperature
- 752 g Weight
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti LAP-GPS – airMAX Lite AP GPS 5GHz Sector Access Point
Product Description
The Ubiquiti LAP-GPS is a high-performance 5 GHz airMAX Lite Access Point with GPS synchronization, designed for outdoor wireless broadband and Point-to-Multipoint (PtMP) network deployments. It combines a lightweight sector access point design with 17 dBi antenna gain, GPS synchronization, airMAX AC technology, and a dedicated 2.4 GHz management radio for reliable outdoor wireless networking.
Key Features
- 5 GHz airMAX AC sector access point
- Up to 450+ Mbps throughput
- 17 dBi integrated antenna
- GPS synchronization
- Dedicated 2.4 GHz management radio
- 25 dBm maximum TX power
- 1 × Gigabit Ethernet port
- Access Point and Station modes
- airMAX AC technology
- Passive PoE
- 24V 0.3A Gigabit PoE adapter included
- 20–27V DC supported voltage
- ±24 kV ESD/EMP protection
- 200 km/h wind survivability
- -40°C to +70°C operating temperature
- NDAA compliant
Technical Specifications
| Specification | Details |
|---|---|
| Model | LAP-GPS |
| Product Type | 5 GHz Sector Access Point |
| Product Series | airMAX Lite AP GPS |
| Wireless Technology | airMAX AC |
| Operating Frequency | 5150–5875 MHz Worldwide |
| Management Radio | 2.4 GHz |
| Management Radio Frequency | 2412–2472 MHz Worldwide |
| Antenna Gain | 17 dBi |
| Maximum TX Power | 25 dBm |
| Maximum Throughput | 450+ Mbps |
| Operating Modes | Access Point, Station |
| GPS | Yes |
| GPS Synchronization | Supported |
| Networking Interface | 1 × 10/100/1000 Mbps Gigabit Ethernet |
| Power Method | Passive PoE |
| PoE Adapter | 24V, 0.3A Gigabit PoE Adapter |
| Supported Voltage | 20–27V DC |
| Maximum Power Consumption | 7.1W |
| ESD/EMP Protection | ±24 kV Air/Contact |
| Wind Survivability | 200 km/h |
| Wind Loading | 77 N @ 200 km/h |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | 5–95% Non-Condensing |
| Dimensions | 361 × 129.6 × 71.3 mm |
| Weight | 752 g |
| Certifications | CE, FCC, IC, Anatel |
| NDAA Compliant | Yes |
Applications
- Wireless Internet Service Provider (WISP) networks
- Point-to-Multipoint wireless networks
- Outdoor broadband distribution
- Rural wireless internet deployments
- Long-distance wireless networking
- Multi-sector wireless base stations
- Campus and industrial wireless networks
- GPS-synchronized wireless deployments
- Outdoor broadband access networks
Advantages
- 450+ Mbps throughput for high-capacity wireless deployments
- 17 dBi integrated antenna for focused 5 GHz coverage
- GPS synchronization for coordinated wireless deployments
- Dedicated 2.4 GHz management radio
- Gigabit Ethernet for high-speed wired uplink
- airMAX AC technology for efficient outdoor networking
- Compact and lightweight design
- 200 km/h wind survivability
- Wide -40°C to +70°C operating temperature range
- Includes 24V 0.3A Gigabit PoE adapter
