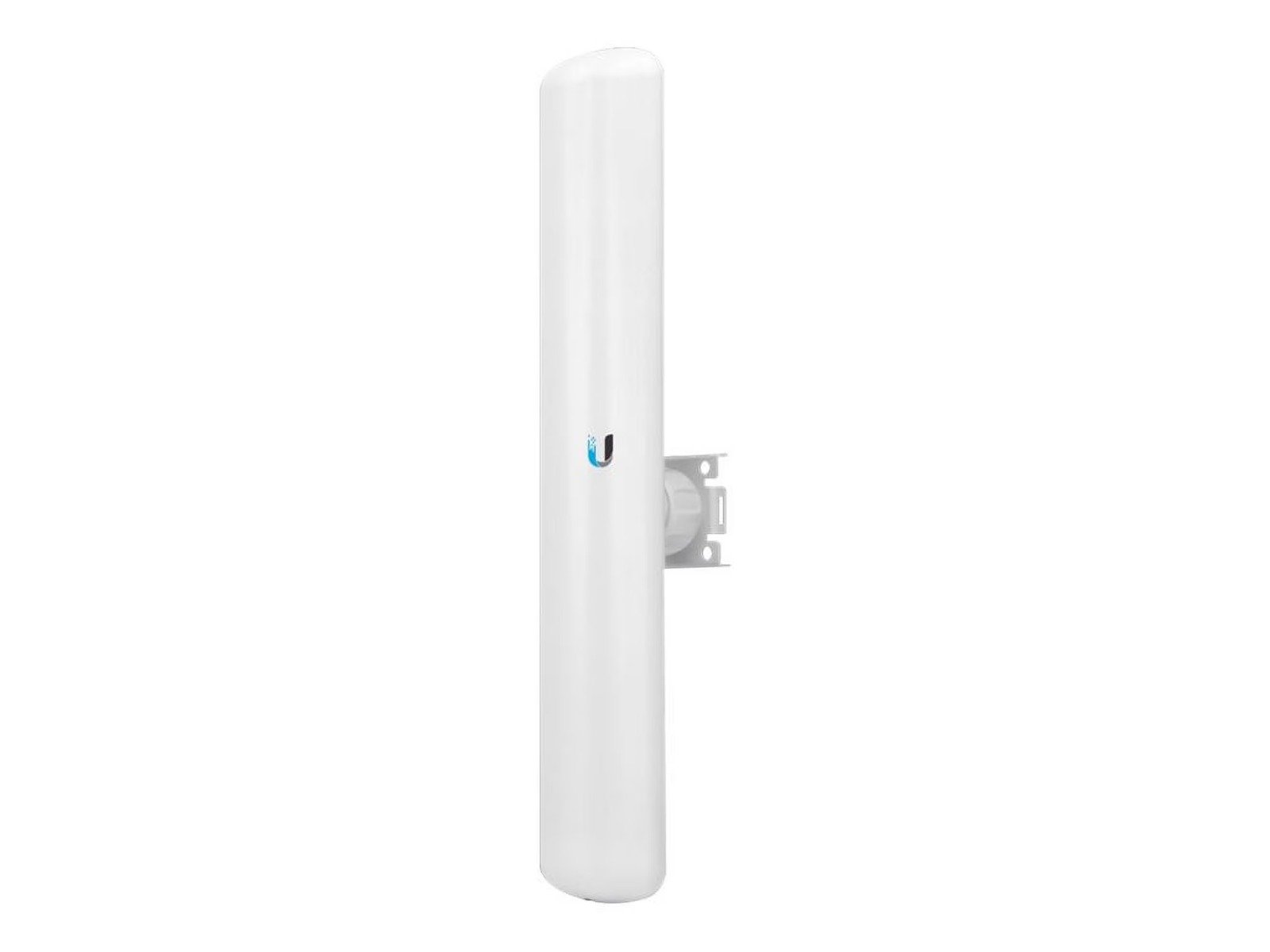

Ubiquiti LAP-120 – airMAX Lite AP 5GHz 16dBi 120° Access Point
Short Description
- 5 GHz High-Performance airMAX AC Access Point
- Up to 450+ Mbps Real TCP/IP Throughput
- 16 dBi Antenna Gain
- 120° Sector Coverage
- 5.15–5.875 GHz Frequency Range
- airMAX AC Mode with TDMA Technology
- Access Point and Station Operating Modes
- 1 × 10/100/1000 Mbps Gigabit Ethernet Port
- 25 dBm Maximum TX Power
- 24V 0.5A Gigabit PoE Adapter Included
- Passive PoE Power
- Ultra-Lightweight 420 g Design
- Ball-Joint Mount for Flexible Installation
- 200 km/h Wind Survivability
- -40°C to +70°C Operating Temperature
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti LAP-120 – airMAX Lite AP 5GHz 16dBi 120° Access Point
Product Description
The Ubiquiti LAP-120 is a lightweight 5 GHz airMAX AC Access Point designed for outdoor wireless broadband and Point-to-Multipoint networking. It combines a 16 dBi integrated antenna, up to 450+ Mbps real TCP/IP throughput, Gigabit Ethernet connectivity, and airMAX AC technology in a compact outdoor design.
Key Features
- 5 GHz airMAX AC Access Point
- Up to 450+ Mbps real TCP/IP throughput
- 16 dBi integrated antenna
- 120° sector coverage
- 5.15–5.875 GHz worldwide frequency range
- 25 dBm maximum TX power
- airMAX AC Mode
- Access Point and Station modes
- 1 × Gigabit Ethernet port
- Passive PoE
- 24V 0.5A Gigabit PoE adapter included
- Ball-joint pole mounting
- 420 g lightweight design
- ±24 kV ESD/EMP protection
- 200 km/h wind survivability
- -40°C to +70°C operating temperature
- No GPS
- No dedicated management radio
Technical Specifications
| Specification | Details |
|---|---|
| Model | LAP-120 |
| Product Type | 5 GHz Outdoor Access Point |
| Product Series | airMAX Lite AP |
| Wireless Technology | airMAX AC |
| Frequency Range | 5150–5875 MHz Worldwide |
| Antenna Gain | 16 dBi |
| Sector Coverage | 120° |
| Maximum TX Power | 25 dBm |
| Real TCP/IP Throughput | 450+ Mbps |
| Operating Modes | Access Point, Station |
| Networking Interface | 1 × 10/100/1000 Mbps Gigabit Ethernet |
| Management Radio | No |
| GPS | No |
| Power Method | Passive PoE, 2-Pair |
| PoE Adapter | 24V, 0.5A Gigabit PoE Adapter |
| Supported Voltage | 20–27V DC |
| Maximum Power Consumption | 8W |
| Memory | 64 MB |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Wind Survivability | 200 km/h |
| Wind Loading | 77 N @ 200 km/h |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | 5–95% Non-Condensing |
| Dimensions | 452.3 × 78.7 × 54.4 mm |
| Weight | 420 g |
| Mounting | Pole Mount / Ball-Joint Mount |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
Specifications are based on Ubiquiti’s current LAP-120 technical specifications and supporting manufacturer documentation.
Applications
- Wireless Internet Service Provider (WISP) networks
- Point-to-Multipoint wireless networks
- Outdoor broadband distribution
- Rural wireless internet deployments
- Wireless broadband bridging
- Campus and industrial wireless networks
- Multi-sector wireless deployments
- Outdoor network expansion
- Long-distance wireless connectivity
Advantages
- 450+ Mbps real TCP/IP throughput
- 16 dBi integrated antenna
- Wide 120° sector coverage
- 25 dBm maximum TX power
- airMAX AC technology for efficient outdoor wireless networking
- Integrated Gigabit Ethernet port
- Lightweight 420 g design
- Flexible ball-joint mounting
- Passive PoE with included 24V adapter
- 200 km/h wind survivability
- Wide -40°C to +70°C operating temperature range
- Simple and cost-effective outdoor deployment
