Ubiquiti AM-5AC21-60 – airMAX AC 5GHz 21dBi 60° Sector Antenna
Short Description
- 5 GHz 2×2 MIMO BaseStation Sector Antenna
- 21 dBi High-Gain Antenna
- 60° Horizontal and Vertical Beamwidth
- 5.10–5.85 GHz Frequency Range
- 4° Electrical Beamwidth
- 2° Electrical Downtilt
- Dual-Linear Polarization
- 25 dB Minimum Cross-Polarization Isolation
- 1.5:1 Maximum VSWR
- Supports Point-to-Multipoint (PtMP) Networks
- Universal Pole Mount and RocketM Bracket Included
- Weatherproof RF Jumpers Included
- 200 km/h Wind Survivability
- 750 × 173 × 78 mm Dimensions
- 4.8 kg Weight
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

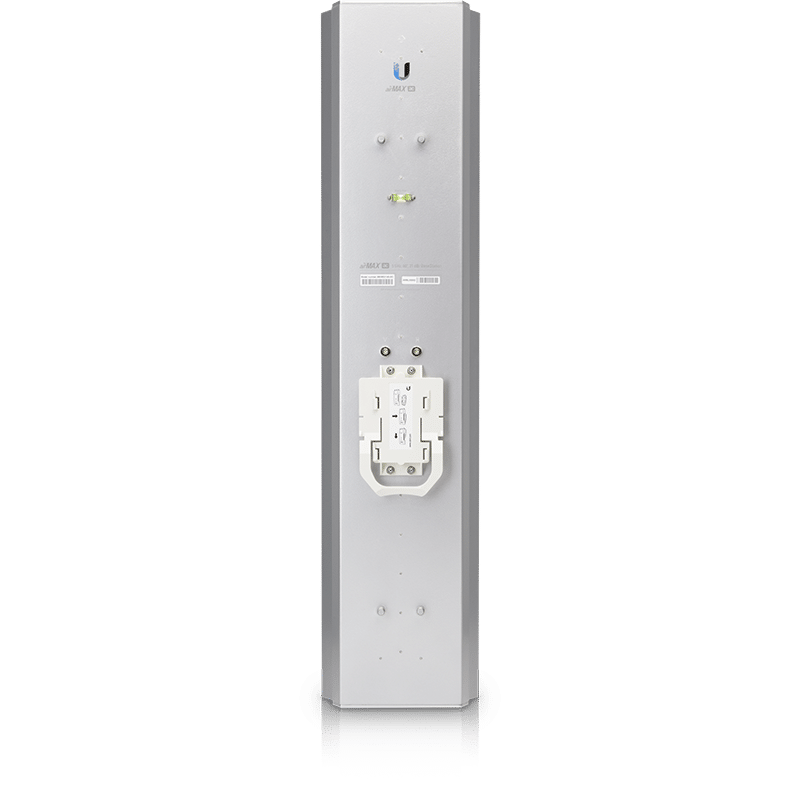

Ubiquiti AM-5AC21-60 – airMAX AC 5GHz 21dBi 60° Sector Antenna
Product Description
The Ubiquiti AM-5AC21-60 is a high-performance 5 GHz airMAX AC 21 dBi 60° sector antenna designed for carrier-class outdoor wireless networking and Point-to-Multipoint (PtMP) deployments. It provides focused 60° sector coverage and is designed to work with compatible Ubiquiti Rocket radios for high-capacity wireless networks.
Key Features
- 5 GHz airMAX AC sector antenna
- 21 dBi antenna gain
- 60° HPOL and VPOL beamwidth
- 2×2 MIMO sector antenna design
- 5.10–5.85 GHz frequency range
- 4° electrical beamwidth
- 2° electrical downtilt
- Dual-linear polarization
- 25 dB minimum cross-polarization isolation
- 1.5:1 maximum VSWR
- Point-to-Multipoint (PtMP) deployment
- Universal pole mount
- RocketM bracket
- Weatherproof RF jumpers
- 200 km/h wind survivability
- NDAA compliant
Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-5AC21-60 |
| Product Type | 5 GHz Sector Antenna |
| Product Series | airMAX AC |
| Application | Point-to-Multipoint (PtMP) |
| Frequency Range | 5.10–5.85 GHz |
| Antenna Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dBi) |
| VPOL Beamwidth | 60° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 25 dB minimum |
| Maximum VSWR | 1.5:1 |
| Wind Survivability | 200 km/h |
| Wind Loading | 391 N @ 200 km/h |
| Dimensions | 750 × 173 × 78 mm |
| Weight | 4.8 kg |
| Mounting | Universal Pole Mount |
| Radio Mount | RocketM Bracket |
| RF Accessories | Weatherproof RF Jumpers |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
Specifications are based primarily on Ubiquiti’s current technical specifications.
Applications
- Wireless Internet Service Provider (WISP) networks
- Point-to-Multipoint wireless networks
- Outdoor broadband distribution
- 5 GHz wireless BaseStation deployments
- Campus and large-area wireless connectivity
- Rural and long-distance wireless networks
- Multi-sector wireless tower installations
- High-capacity outdoor wireless networks
Advantages
- 21 dBi gain for focused outdoor wireless coverage
- 60° sector coverage for controlled PtMP deployments
- 2×2 MIMO antenna architecture
- Dual-linear polarization for compatible airMAX systems
- 2° electrical downtilt for optimized coverage
- 25 dB cross-polarization isolation for improved RF performance
- 200 km/h wind survivability for demanding outdoor installations
- Includes pole mounting and RocketM mounting hardware
- Designed for integration with compatible Ubiquiti Rocket radios
