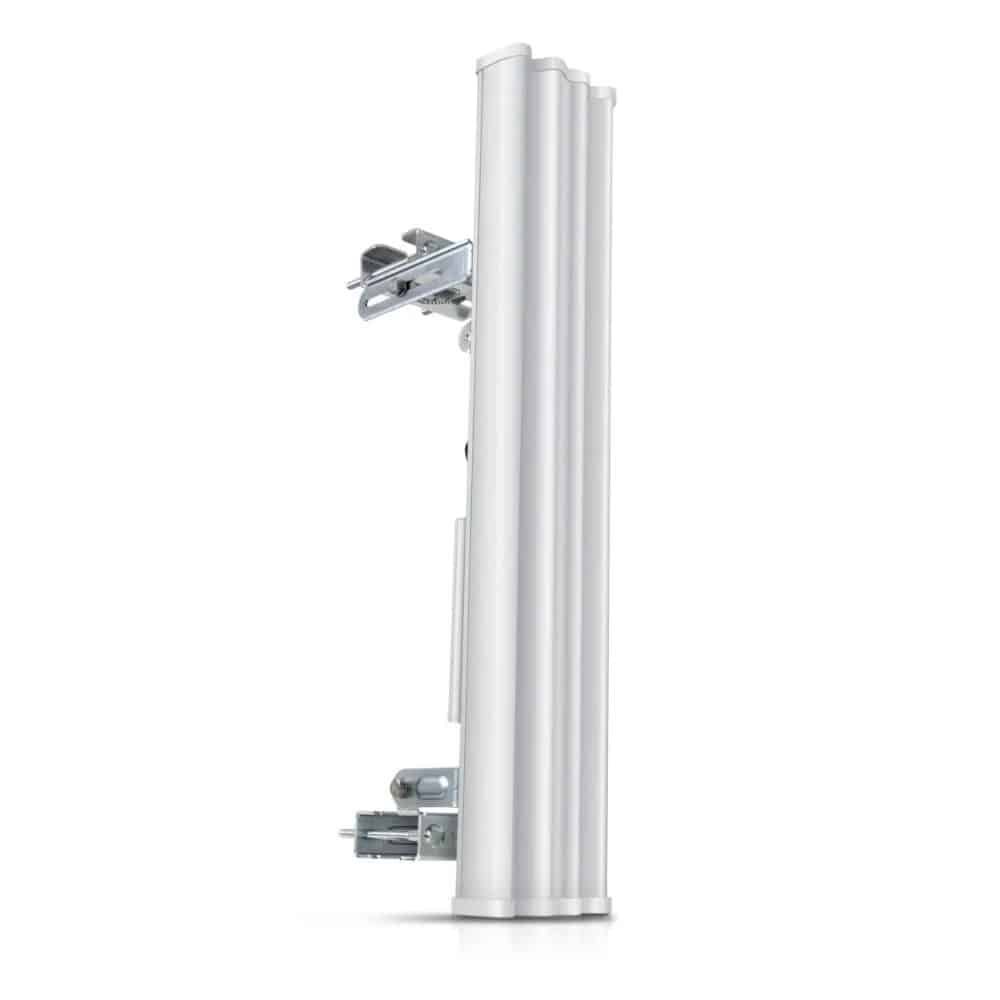

Ubiquiti AM-5G19-120 – airMAX 5GHz 19dBi 120° 2×2 MIMO Sector Antenna
Short Description
- 5 GHz 2×2 MIMO BaseStation Sector Antenna
- 120° Sector Coverage
- 18.6–19.1 dBi Antenna Gain
- 5.15–5.85 GHz Frequency Range
- 123° HPOL Beamwidth
- 123° VPOL Beamwidth
- 4° Elevation Beamwidth
- 2° Electrical Downtilt
- Dual-Linear Polarization
- 28 dB Minimum Cross-Polarization Isolation
- 1.5:1 Maximum VSWR
- 700 × 135 × 73 mm Dimensions
- 5.9 kg Weight Including Mount
- Universal Pole Mount Included
- Rocket Bracket Included
- Weatherproof RF Jumpers Included
- 200 km/h Wind Survivability
- Designed for Point-to-Multipoint (PtMP) Networks
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti AM-5G19-120 – airMAX 5GHz 19dBi 120° 2×2 MIMO Sector Antenna
Product Description
The Ubiquiti AM-5G19-120 is a high-performance 5 GHz 2×2 MIMO airMAX BaseStation Sector Antenna designed for Point-to-Multipoint (PtMP) wireless networks. It provides 18.6–19.1 dBi antenna gain with approximately 120° sector coverage, making it suitable for wireless broadband distribution, ISP/WISP networks, outdoor access networks, and large-area wireless deployments.
The antenna uses dual-linear polarization, wide 123° HPOL and VPOL beamwidths, a 4° elevation beamwidth, and 2° electrical downtilt to provide broad and controlled sector coverage.
Key Features
- 5 GHz 2×2 MIMO BaseStation sector antenna
- 120° sector coverage
- 18.6–19.1 dBi antenna gain
- 5.15–5.85 GHz frequency range
- 123° HPOL beamwidth
- 123° VPOL beamwidth
- 4° elevation beamwidth
- 2° electrical downtilt
- Dual-linear polarization
- 28 dB minimum cross-polarization isolation
- 1.5:1 maximum VSWR
- 700 × 135 × 73 mm dimensions
- 5.9 kg weight including mount
- Universal pole mount
- Rocket bracket
- Weatherproof RF jumpers
- 200 km/h wind survivability
- ETSI EN 302 326 DN2 specification
- Compatible with Rocket BaseStation radios
Technical Specifications
| Specification | Details |
|---|---|
| Model | AM-5G19-120 |
| Product Type | 5 GHz 2×2 MIMO BaseStation Sector Antenna |
| Sector Coverage | 120° |
| Frequency Range | 5.15–5.85 GHz |
| Antenna Gain | 18.6–19.1 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 123° (6 dB) |
| Elevation Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Polarization | Dual-Linear |
| Maximum VSWR | 1.5:1 |
| Cross-Polarization Isolation | 28 dB Min. |
| Dimensions | 700 × 135 × 73 mm |
| Weight | 5.9 kg including mount |
| Wind Survivability | 200 km/h |
| Wind Loading | 137.9 N @ 200 km/h |
| Mounting | Universal Pole Mount |
| Radio Bracket | Rocket Bracket |
| RF Connections | Weatherproof RF Jumpers |
| ETSI Specification | EN 302 326 DN2 |
| MIMO Technology | 2×2 MIMO |
Applications
- ISP and WISP wireless networks
- Point-to-Multipoint broadband networks
- 5 GHz outdoor wireless access
- Wireless Internet service distribution
- Tower-mounted sector networks
- Rural broadband deployments
- Campus wireless infrastructure
- Outdoor enterprise networks
- Community wireless networks
- Multi-sector wireless deployments
Advantages
- Broad 120° sector coverage
- 18.6–19.1 dBi antenna gain
- 2×2 MIMO support
- Dual-linear polarization
- Wide 123° HPOL and VPOL beamwidth
- Controlled 4° elevation beamwidth
- 2° electrical downtilt
- 28 dB minimum cross-polarization isolation
- Compatible with Ubiquiti Rocket BaseStation radios
- Universal pole mounting
- Weatherproof RF jumpers included
- 200 km/h wind survivability
- Designed for professional outdoor PtMP deployments
