Ubiquiti RD-5G30-LW – 30 dBi 5GHz airMAX RocketDish LW Antenna
Short Description
- 5 GHz High-Performance RocketDish Antenna
- 30 dBi High-Gain Directional Antenna
- 5.1–5.9 GHz Frequency Range
- Extended-Depth Dish Reflector for Improved Noise Rejection
- 5.8° HPOL / 5.8° VPOL Beamwidth
- 30 dB Front-to-Back Ratio
- 1.6:1 Maximum VSWR
- Dual-Linear Polarization
- 35 dB Minimum Cross-Polarization Isolation
- 650 × 650 × 386 mm Dimensions
- 7.4 kg Weight Including Mount
- Universal Pole Mount Included
- Rocket Bracket Included
- Weatherproof RF Connectors Included
- 200 km/h Wind Survivability
- Designed for Outdoor Point-to-Point Wireless Links
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

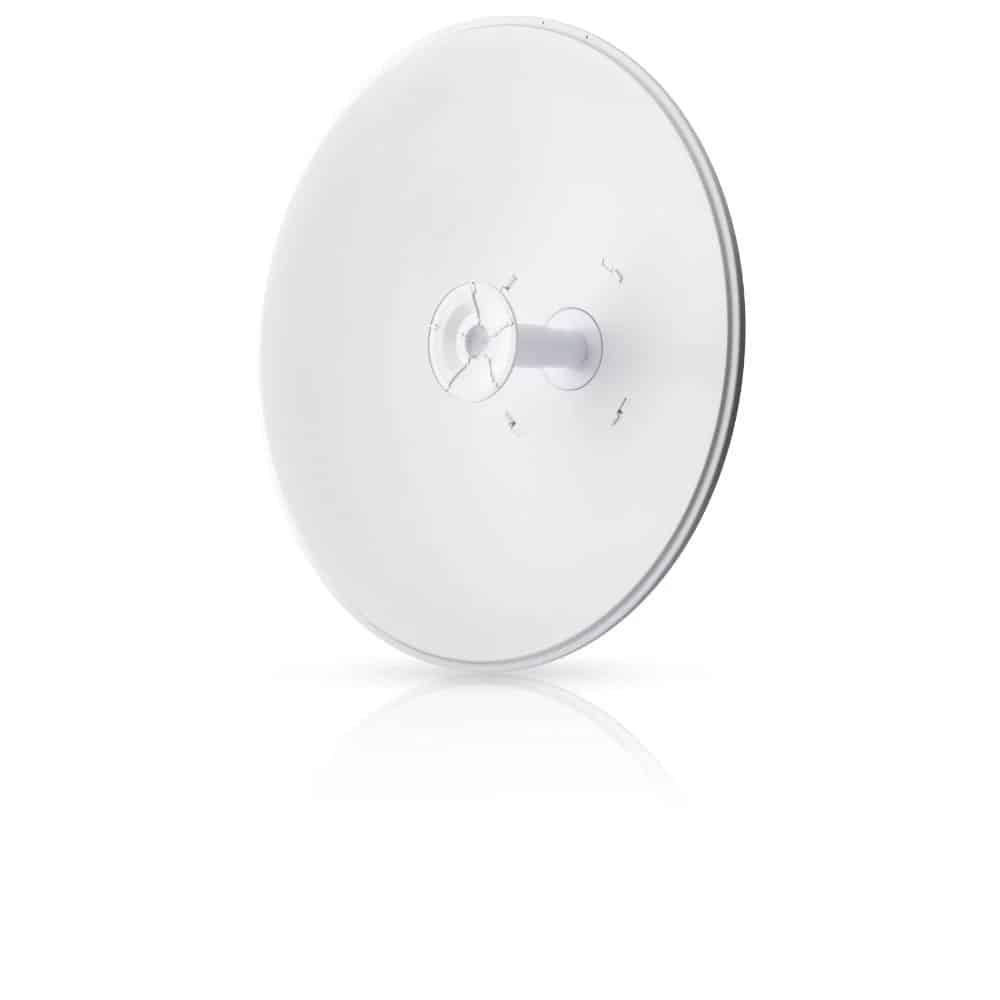

Ubiquiti RD-5G30-LW – 30 dBi 5GHz airMAX RocketDish LW Antenna
Product Description
The Ubiquiti RD-5G30-LW RocketDish is a high-performance 5 GHz, 30 dBi directional dish antenna designed for long-range wireless networking and high-capacity outdoor Point-to-Point deployments. It is designed to work with compatible Ubiquiti Rocket radios and provides high antenna gain with a narrow beamwidth for focused wireless links.
The RD-5G30-LW features an extended-depth dish reflector that helps reject unwanted RF noise, making it particularly suitable for co-location environments where multiple wireless systems operate near each other. Its lightweight construction and versatile mounting system also simplify installation on poles and towers.
Key Features
- 5 GHz high-performance directional dish antenna
- 30 dBi antenna gain
- 5.1–5.9 GHz operating frequency
- Extended-depth reflector for improved noise rejection
- 5.8° HPOL and VPOL beamwidth
- 30 dB front-to-back ratio
- 1.6:1 maximum VSWR
- Dual-linear polarization
- 35 dB minimum cross-polarization isolation
- Universal pole mounting system
- Rocket bracket included
- Weatherproof RF connectors included
- 200 km/h wind survivability
- 790 N wind loading at 200 km/h
- 650 × 650 × 386 mm dimensions
- 7.4 kg weight including mount
- Suitable for long-range outdoor wireless links
Technical Specifications
| Specification | Details |
|---|---|
| Model | RD-5G30-LW |
| Product Type | 5 GHz Directional Dish Antenna |
| Product Series | RocketDish LW |
| Frequency Range | 5.1–5.9 GHz |
| Antenna Gain | 30 dBi |
| HPOL Beamwidth | 5.8° (3 dB) |
| VPOL Beamwidth | 5.8° (3 dB) |
| Front-to-Back Ratio | 30 dB |
| Maximum VSWR | 1.6:1 |
| Polarization | Dual-Linear |
| Cross-Polarization Isolation | 35 dB Minimum |
| Wind Loading | 790 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount + Rocket Bracket |
| RF Connections | Weatherproof RF Connectors |
| Dimensions | 650 × 650 × 386 mm |
| Weight | 7.4 kg (Mount Included) |
| NDAA Compliant | Yes |
Applications
- Long-range Point-to-Point wireless links
- High-capacity wireless backhaul
- ISP and WISP network infrastructure
- Building-to-building wireless connectivity
- Tower-to-tower wireless links
- Enterprise outdoor wireless networks
- Co-location wireless deployments
- Broadband wireless infrastructure
- Outdoor airMAX network deployments
- Long-distance network bridging
Advantages
- High 30 dBi directional gain
- Focused 5.8° beamwidth
- Extended-depth reflector helps reject RF noise
- Suitable for high-density co-location environments
- Dual-linear polarization
- Strong 30 dB front-to-back ratio
- High cross-polarization isolation
- Universal pole mounting system
- Rocket bracket included
- Weatherproof RF connections
- Lightweight construction
- 200 km/h wind survivability
- Suitable for long-range wireless backhaul
