Ubiquiti AF-5G34-S45 – airFiber X 5GHz 34dBi Slant 45 Antenna
Short Description
- 5 GHz High-Performance airFiber X Antenna
- 34 dBi High-Gain Directional Antenna
- 5.1–5.8 GHz Frequency Range
- Designed for Long-Range Point-to-Point (PtP) Links
- Slant 45° Dual-Linear Polarization
- 42 dB Front-to-Back Ratio
- 1.4:1 Maximum VSWR
- 35 dB Minimum Cross-Polarization Isolation
- 3° HPOL / 3° VPOL Beamwidth
- 1050 × 1050 × 421 mm Large-Dish Design
- 13.5 kg Weight Including Mount
- Universal Pole Mount Included
- airFiber Radio Bracket Included
- Weatherproof RF Jumpers Included
- 200 km/h Wind Survivability
- NDAA Compliant
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

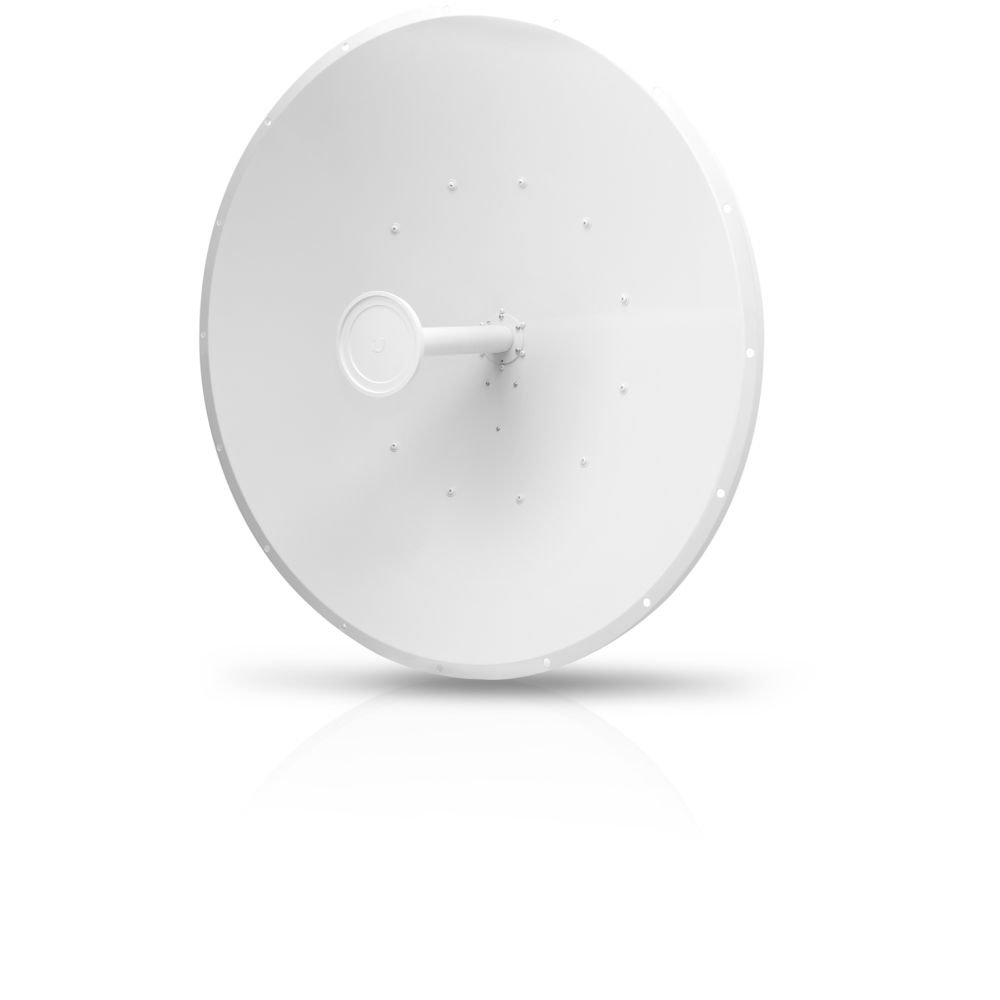

Ubiquiti AF-5G34-S45 – airFiber X 5GHz 34dBi Slant 45 Antenna
Product Description
The Ubiquiti AF-5G34-S45 is a high-performance 5 GHz airFiber X directional antenna designed for long-range Point-to-Point (PtP) wireless links and carrier-grade network backhaul applications. It provides up to 34 dBi antenna gain and uses a large 1050 mm diameter-class reflector to deliver highly focused wireless coverage and strong link performance.
The AF-5G34-S45 features dual-linear polarization with Slant 45° configuration, a 42 dB front-to-back ratio, and 35 dB minimum cross-polarization isolation, helping reduce unwanted signal interference and improve link isolation in demanding wireless deployments.
The antenna is designed to be paired with a compatible airFiber X radio, which is sold separately.
Key Features
- 5 GHz airFiber X directional antenna
- 34 dBi maximum antenna gain
- 5.1–5.8 GHz frequency range
- Slant 45° dual-linear polarization
- 3° HPOL beamwidth
- 3° VPOL beamwidth
- 42 dB front-to-back ratio
- 1.4:1 maximum VSWR
- 35 dB minimum cross-polarization isolation
- 1050 × 1050 × 421 mm dimensions
- 13.5 kg weight including mount
- Universal pole mount
- airFiber radio bracket
- Weatherproof RF jumpers
- 200 km/h wind survivability
- NDAA compliant
Technical Specifications
| Specification | Details |
|---|---|
| Model | AF-5G34-S45 |
| Product Type | 5 GHz airFiber X Directional Antenna |
| Frequency Range | 5.1–5.8 GHz |
| Antenna Gain | 34 dBi |
| Polarization | Dual Linear, Slant 45° |
| HPOL Beamwidth | 3° (3 dB) |
| VPOL Beamwidth | 3° (3 dB) |
| Front-to-Back Ratio | 42 dB |
| Maximum VSWR | 1.4:1 |
| Cross-Polarization Isolation | 35 dB Min. |
| Dimensions | 1050 × 1050 × 421 mm |
| Weight | 13.5 kg including mount |
| Wind Loading | 1,779 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| Mounting | Universal Pole Mount |
| Radio Mount | airFiber Radio Bracket |
| RF Connections | Weatherproof RF Jumpers |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | Yes |
Applications
- Long-range Point-to-Point wireless links
- Carrier-grade wireless backhaul
- ISP and WISP network backhaul
- Building-to-building wireless connectivity
- Tower-to-tower wireless links
- High-capacity outdoor network infrastructure
- Enterprise wireless backhaul
- Remote site connectivity
- Long-distance network bridging
Advantages
- High 34 dBi directional antenna gain
- Narrow beamwidth for precise long-range links
- Dual-linear Slant 45° polarization
- Excellent 42 dB front-to-back ratio
- 35 dB minimum cross-polarization isolation
- Designed for airFiber X radio systems
- Robust outdoor construction
- 200 km/h wind survivability
- Universal pole mounting
- Weatherproof RF jumpers included
- Suitable for professional wireless backhaul networks
