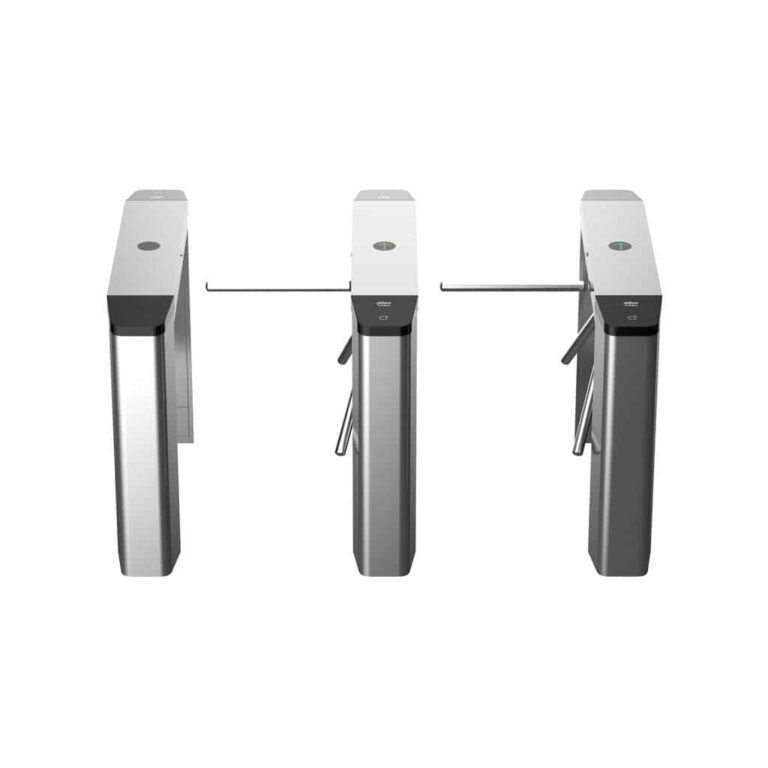

Dahua Tripod Turnstile DHI-ASGG120T

Dahua Tripod Turnstile DHI-ASGG120T

Product Overview

The DHI-ASGG120T is a semi-automatic tripod turnstile with a robust stainless steel body and stable mechanical structure. It unlocks electronically upon authorization and allows users to push the arm to pass through.

It supports bi-directional (IN/OUT) access control and integrates seamlessly with modern security and attendance systems.

Product Description

The Dahua DHI-ASGG120T Tripod Turnstile is a durable and cost-effective pedestrian access control solution designed for secure and orderly entry/exit management. Featuring a three-arm (tripod) rotating mechanism, it allows only one person per passage, ensuring controlled access in medium to high-traffic environments.

This model is widely used in office buildings, factories, schools, public transport stations, and commercial facilities, where reliable access control is essential.

> 304 stainless steel cabinet with a thickness of 0.8 mm.

> Automatically opens the barrier when the device is powered off.

> MCBF (Mean Cycles between Failures) is no less than 3 million times.

> Mechanical anti-tailing.

> Automatically closes barriers when no one enters the turnstile after the specified time.

> Supports configuring the passing time for people.

> Restores the system settings to their default values.

> Memorizes passing data for entry and exit.

> Features 9 modes for entry and exit including controlled, prohibited, and free. Combine these modes for more options.

> Supports being connected to multiple types of modules such as face, fingerprint and QR code. Combine these modules for more options.

Key Features

1. Tripod Arm Mechanism
Three rotating arms ensure one-person-at-a-time access, preventing tailgating and unauthorized entry.

2. Durable Stainless Steel Construction
Made from SUS304 stainless steel, providing high resistance to corrosion, wear, and environmental conditions.

3. Bi-Directional Access Control (IN/OUT)
Configurable for:

• Entry only
• Exit only
• Both directions

4. Access Control Integration
Compatible with:

• RFID card readers
• Biometric systems (fingerprint & face recognition)
• QR code and ticketing systems

5. Anti-Tailgating Security
Ensures controlled passage by allowing only one person per rotation cycle.

6. LED Direction Indicators
Clear visual indicators guide users for entry and exit.

7. Emergency Drop Arm Function
Arms automatically drop during power failure or emergency, allowing free passage for evacuation.

8. Smooth & Reliable Operation
Stable mechanical structure ensures low noise and long service life.

9. Compact & Space-Saving Design
Ideal for installations where space is limited.

10. Easy Installation & Maintenance
Simple design allows quick installation and minimal upkeep.

Technical Specifications (Typical)

• Model: DHI-ASGG120T
• Type: Tripod Turnstile
• Material: SUS304 Stainless Steel
• Passage Width: ~550 mm
• Throughput: 25–30 persons per minute
• Operation: Semi-automatic
• Power Supply: 100–240V AC
• Control Interface: Dry contact / RS485
• Operating Temperature: -20°C to +60°C
• Direction Control: Bi-directional (IN/OUT)
• Emergency Mode: Drop-arm feature

Applications

• Corporate offices and business centers
• Factories and industrial sites
• Educational institutions
• Metro and bus stations
• Gyms and fitness centers
• Government buildings
• Construction sites

Frequently Asked Questions (FAQs)

1. What is the DHI-ASGG120T used for?
It is used for controlling pedestrian entry and exit in secure areas.

2. Is it automatic or manual?
It is semi-automatic—unlocks electronically but rotates manually.

3. Can it integrate with biometric systems?
Yes, it supports RFID, fingerprint, face recognition, and QR systems.

4. Does it prevent tailgating?
Yes, it allows only one person per rotation.

5. What happens during power failure?
The arms drop automatically for free passage.

6. Is it suitable for outdoor use?
Yes, its stainless steel body supports both indoor and outdoor installation.

7. What is the throughput?
Approximately 25–30 persons per minute.

8. Does it require maintenance?
Very low maintenance is required.

9. How wide is the passage?
Around 550 mm, suitable for standard pedestrian access.

10. Where is it commonly installed?
In offices, factories, schools, and transport hubs.

Why Choose Dahua DHI-ASGG120T?

The DHI-ASGG120T offers a perfect balance of affordability, durability, and security. It is ideal for organizations that need a reliable and straightforward access control system without the complexity of advanced gate types.
