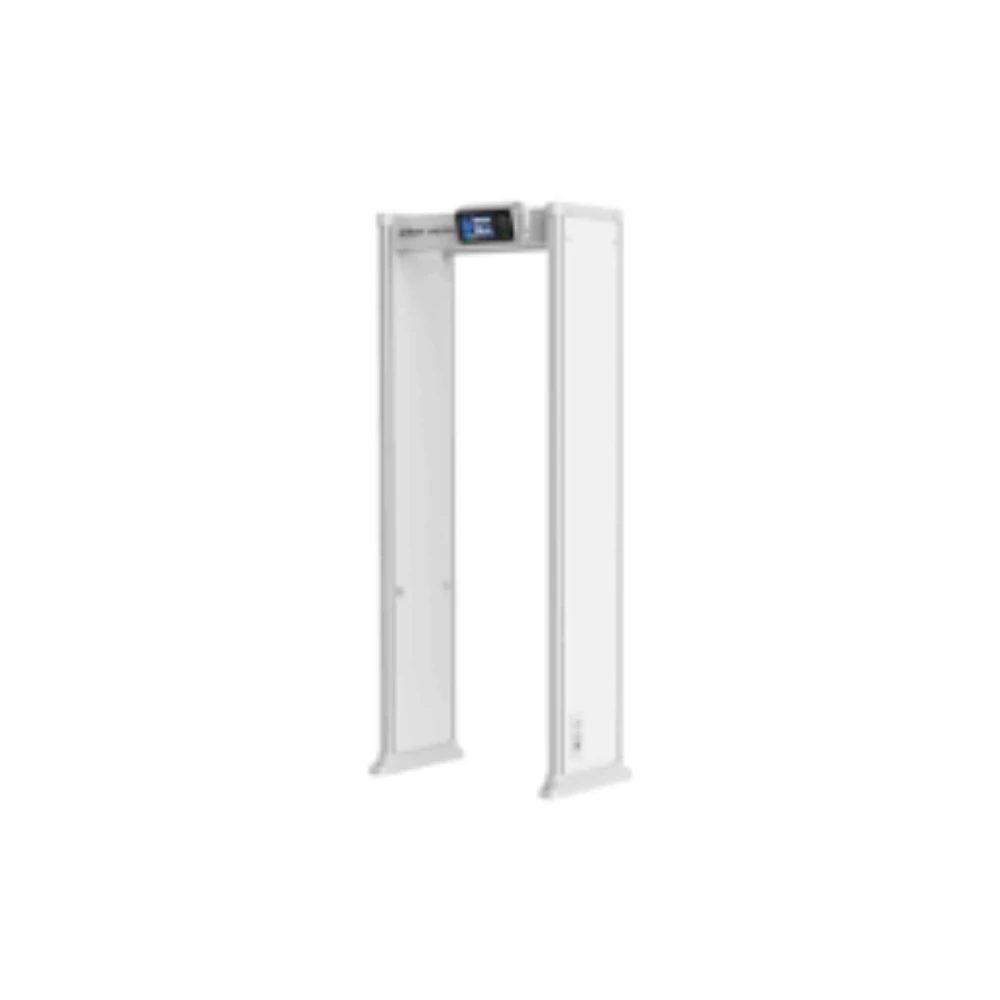

DAHUA DHI-ISC-D733 WALK THROUGH GATE 33 Zone

DAHUA DHI-ISC-D733 WALK THROUGH GATE 33 Zone

Product Overview

The DHI-ISC-D733 uses advanced multi-zone electromagnetic detection technology to identify metallic objects carried on the human body. When metal is detected, the system not only triggers an alarm but also shows the exact body location using a human-shaped zone indicator.

This model is part of Dahua’s high-end ISC-D7xx series, known for high sensitivity, strong anti-interference performance, and intelligent detection capabilities.

According to Dahua specifications, it features:

• 33 overlapping detection zones for precise localization
• Ultra-high sensitivity (detects even small metal objects)
• Advanced signal processing with multi-frequency operation

Product Description

The DAHUA DHI-ISC-D733 Walk Through Metal Detector is a high-performance advanced security screening gate designed for accurate and fast detection of concealed metal objects on individuals. With its 33 independent detection zones, it provides precise location-based alarm indication, making it suitable for high-security environments.

It is widely used in airports, government buildings, prisons, stadiums, corporate offices, and large public events, where maximum security and fast passenger flow management are required.

Key Features

1. 33 Independent Detection Zones
Provides highly accurate detection with precise metal location mapping across the body (head, chest, waist, legs, etc.).

2. Ultra-High Sensitivity Detection
Capable of detecting very small metallic objects, including low-weight items depending on configuration.

3. Human-Shaped Alarm Display
The system visually indicates the exact zone of metal detection on a human silhouette, helping operators respond quickly.

4. 7-Inch Full Color Touch Screen
Easy-to-use interface for:

• System configuration
• Alarm monitoring
• Statistics and reports

5. Multi-Frequency Anti-Interference Technology
Supports up to 100 selectable operating frequencies to avoid interference in multi-gate environments.

6. Adjustable Sensitivity Per Zone
Each detection zone can be tuned from 0 to 255 sensitivity levels for customized security settings.

7. Intelligent Traffic Control System
Built-in IR sensors help manage:

• Entry/exit flow
• People counting
• Alarm counting

8. Multiple Alarm Modes
Supports:

• Sound alarm
• LED visual indicators
• Adjustable volume and tone options

9. Environmental Interference Monitoring
Real-time detection of surrounding electromagnetic noise for stable performance.

10. Modular & Easy Installation Design
Designed for quick setup, easy transport, and maintenance-friendly structure.

Technical Specifications (Typical)

• Model: DHI-ISC-D733
• Detection Zones: 33
• Display: 7-inch color touchscreen LCD
• Detection Technology: Multi-zone electromagnetic field
• Sensitivity Levels: 0–255 per zone
• Security Level Settings: 0–99 adjustable
• Operating Frequencies: Up to 100 selectable
• Power Supply: 100–240V AC
• Power Consumption: ~8–10W (low power design)
• Operating Temperature: -20°C to +65°C
• Alarm System: Audio + LED zone indicators
• Structure: Modular archway design
• Installation: Floor-mounted

Applications

• Airports and aviation security
• Government and embassy buildings
• Military and defense installations
• Prisons and correctional facilities
• Stadiums and large public venues
• Corporate headquarters
• Border and customs checkpoints
• High-security industrial sites

Frequently Asked Questions (FAQs)

1. What is the DHI-ISC-D733 used for?
It is used for detecting concealed metal objects on people in secure areas.

2. How many detection zones does it have?
It has 33 independent detection zones for precise location tracking.

3. Can it detect small objects?
Yes, it has ultra-high sensitivity capable of detecting very small metal items.

4. Does it show where the metal is located?
Yes, it displays the exact body zone using a human-shaped indicator.

5. Is it suitable for airports and high-security zones?
Yes, it is designed for high-security and high-traffic environments.

6. Does it reduce false alarms?
Yes, it uses multi-frequency anti-interference technology.

7. Can multiple gates operate nearby?
Yes, it supports up to 100 working frequencies to avoid interference.

8. Is it safe for humans?
Yes, it is completely safe for all individuals.

9. Does it support data tracking?
Yes, it tracks people count, alarm count, and pass/return statistics.

10. Is installation complex?
No, it has a modular design for easy installation and setup.

Why Choose DAHUA DHI-ISC-D733?

The DHI-ISC-D733 is a premium-grade walk-through metal detector designed for maximum accuracy and operational efficiency. Its 33-zone precision, intelligent display system, and advanced anti-interference technology make it ideal for environments where security cannot be compromised.
