Description

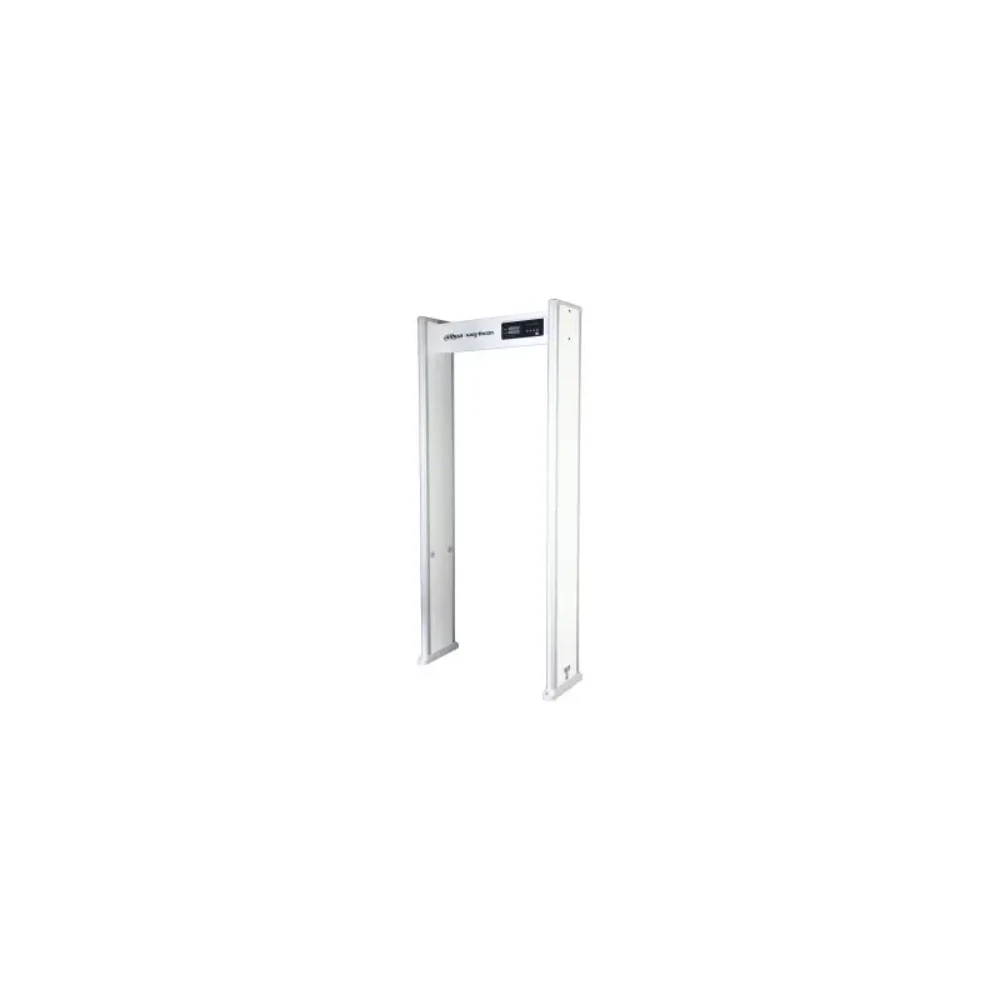

DAHUA DHI-ISC-D106 WALK THROUGH GATE 6 Zone
Product Overview
The DAHUA DHI-ISC-D106 uses electromagnetic field detection technology to identify metallic objects carried on a person. When a threat is detected, the system triggers an alarm and indicates the general zone where the metal is located.
Even though it is a 6-zone model, it still provides stable performance, strong anti-interference capability, and fast processing speed, making it suitable for medium-security environments.
According to Dahua specifications, it supports 6 independent detection zones with simultaneous multi-object detection and high sensitivity adjustment levels for accurate screening.
Product Description
The DAHUA DHI-ISC-D106 Walk Through Metal Detector is a professional walk-through security screening system designed for efficient and reliable metal detection at entry and exit points. With its 6-zone detection technology, it provides basic body-area identification while ensuring smooth pedestrian flow.
It is widely used in airports, government buildings, schools, factories, stadiums, and public security checkpoints where fast and accurate screening is required.
Walk through gate 6 Zone Technical Description | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Precise Positioning | 6 overlapping detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Zone Indication | 6 independent zones, and multiple metal items can be located simultaneously | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Sensor | Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Adjustable Sensitivity | 255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Control | Comes with a infrared remote controller with the maximum remote control range of 2 m (6.56 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leakage Current | < 0.5 mA, complying with safety requirements for electronic devices | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage | 12 V DC, power adapter (included): 100 V–240 V AC, 50/60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Power Consumption | 11 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Typical Power Consumption | 7.8 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 47 kg (103.62 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 37.5 kg (82.67 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Passageway Interior Size | 2003 mm x 720 mm x 393 mm (87.0″ × 28.3″ × 15.5″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overall Exterior Size | Bare: 2208 mm × 866 mm × 488 mm (86.93″ × 34.09″ × 19.21″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing Size | 2271 mm × 695 mm × 215 mm (89.41″ × 27.36″ × 8.46″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –20 °C to +65 °C (–4 °F to +149 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Key Features
1. 6 Independent Detection Zones
Divides the body into 6 sections for basic metal location detection and quick identification.
2. High Sensitivity Adjustment (Up to 255 Levels)
Allows precise tuning for detecting:
- Weapons
- Metallic objects
- Small or large items depending on configuration
3. Multi-Object Detection Capability
Can detect multiple metal items simultaneously in different zones.
4. Infrared Sensor System
Automatically detects passing individuals and helps reduce false alarms.
5. Audio & LED Alarm System
Provides sound alerts and visual indicators for quick response.
6. Anti-Interference Technology
Ensures stable operation even in environments with electromagnetic noise.
7. LCD Control Interface
Displays:
- Pass count
- Alarm count
- System status
- Environmental interference level
8. Adjustable Operating Frequency
Automatically or manually adjusts frequency to reduce interference between multiple gates.
9. Self-Diagnostic Function
System performs automatic checks for reliable operation.
10. Safe for Humans
Uses low-frequency electromagnetic fields and is safe for:
- Pregnant women
- People with pacemakers
- Electronic devices
Technical Specifications (Typical)
- Model: DHI-ISC-D106
- Detection Zones: 6
- Sensitivity Levels: Up to 255
- Display: LCD interface
- Power Supply: AC 100–240V
- Operating Power: Low consumption (~7–11W range)
- Operating Temperature: -20°C to +65°C
- Detection Type: Electromagnetic field scanning
- Alarm System: Audio + LED zone indicators
- Throughput: High-speed pedestrian screening
- Installation Type: Floor-mounted arch gate
Applications
- Schools and universities
- Corporate offices
- Government buildings
- Airports and transport terminals
- Factories and warehouses
- Public events and stadiums
- Basic security checkpoints
Frequently Asked Questions (FAQs)
1. What is the DAHUA DHI-ISC-D106 used for?
It is used for detecting metal objects on people at security checkpoints.
2. How many detection zones does it have?
It has 6 detection zones.
3. Can it detect multiple objects at once?
Yes, it can detect multiple metal items simultaneously.
4. Does it show exact metal location?
It shows general zone-based detection (6 zones).
5. Is it suitable for high-security areas?
It is best for low to medium security environments.
6. Is it safe for humans?
Yes, it is completely safe for all individuals.
7. Does it reduce false alarms?
Yes, it includes anti-interference and IR sensor technology.
8. Can it work with multiple gates together?
Yes, it supports frequency adjustment to avoid interference.
9. What is its main advantage?
It is cost-effective, stable, and easy to operate.
10. Where is it commonly installed?
In schools, offices, factories, and public entry points.
Why Choose DAHUA DHI-ISC-D106 (6 Zone)?
The DHI-ISC-D106 is ideal for organizations that need a reliable and affordable security screening solution. It provides:
- Fast pedestrian flow handling
- Basic zone-based detection
- Stable performance with low maintenance
It is best suited for medium-security environments where cost-efficiency is important.
