Description

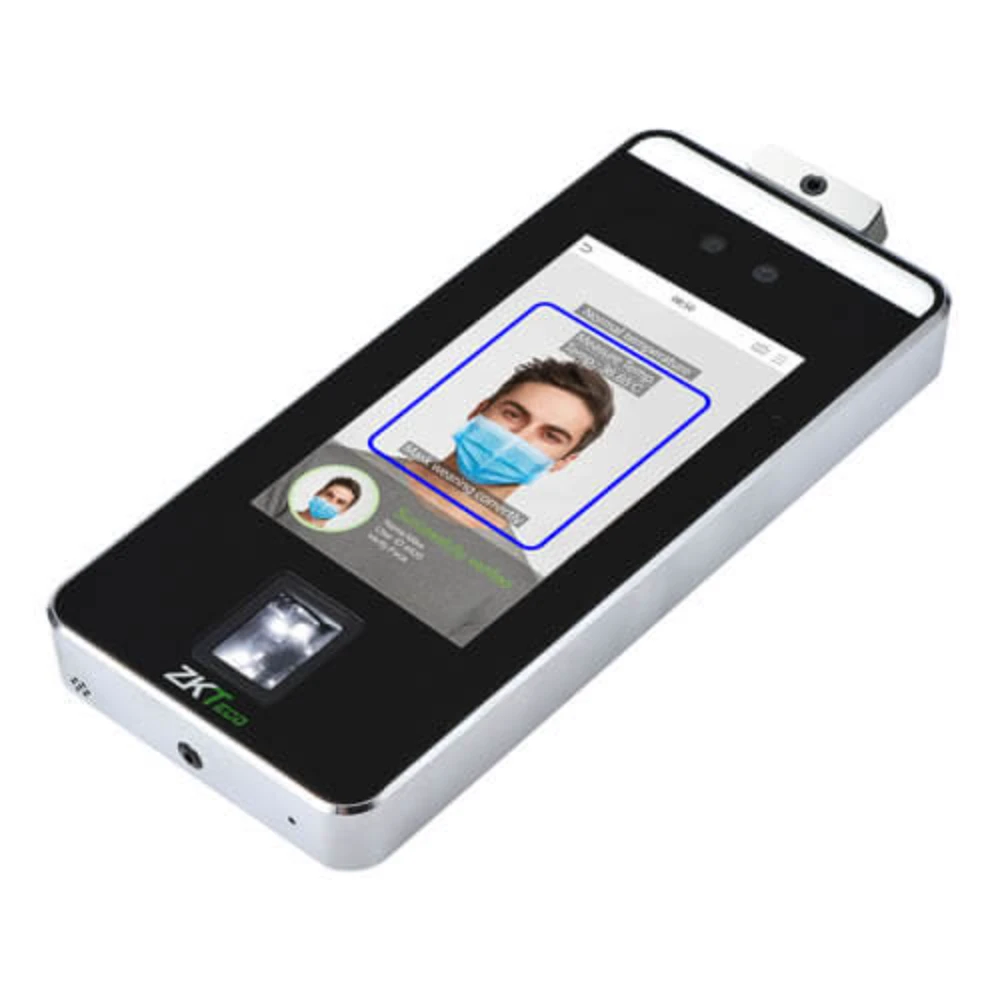

ZKTeco SpeedFace-V5L Parameters

• ModelSpeedFace-V5L; SpeedFace-V5L[TD]; SpeedFace-V5L[TI]
• Display5″@ ISP Color LCD Screen (720*1280)
• CameraWDR Low Light Camera @ 2MP
• Operation SystemLinux
• HardwareCPU: 1.GHz Dual Core
  RAM: 1GB; ROM: 8GB
  Supplement Light: Yes
  Virtual Keypad: 12 Keys
  Fingerprint Sensor: Z-ID
• Authentication MethodFace / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)
• Fingerprint Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
• Face Template Capacity6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)
• Palm Template Capacity【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)
• Card Capacity10,000 (1:N) (Optional) / 10,000 (1:1)
• Transaction Capacity200,000 (1:N) (Optional for Capacity Expansion)
• Biometric Verification Speedless than 0.3 sec (Fingerprint)
  less than 1 sec (Facial Recognition)
  less than 0.35 Sec (Palm)
• Touchless Biometric Recognition Distance1cm to 100cm (Facial Recognition)
  Up to 50cm(Palm)
• False Acceptance Rate (FAR) %FAR ≤ 0.01% ( Visible Light Facial Recognition)
  FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)
  FAR ≤ 0.05% (ZKPalm V12.0)
• False Rejection Rate (FRR) %FRR ≤ 0.02% ( Visible Light Facial Recognition)
  FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)
  FRR ≤ 1.8% ( ZKPalm V12.0)
• Biometric AlgorithmZKFace 3.5
  ZKPalm V12.0 (Customized)
  ZKFingerprint V10.0
• Card TypeID Card@125 kHz (Optional)
  IC Card@13.56 MHz (Optional)
  CEPAS(Optional)
• QR CodeDynamic or Static QR codes on the ZKBioSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects(Support QR500/600 Series).
• CommunicationTCP/IP*1
  Wiegand (Input & Output)*1
  RS485: ZKTeco RS485*1*
  Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1
• Standard FunctionsADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
  Record Query, Tamper Switch Alarm, Multiple Verification Methods
• Power SupplyDC 12V 3A
• Operating Temperature-10°C ~ 45°C (14°F ~ 113°F)
• Operating Humidity10% to 90% RH (Non-condensing)
• Dimensions91.93mm * 202.93mm * 21.5mm (L*W*H)
• Gross Weight1.3 Kg
• Net Weight0.6 Kg
• Supported SoftwareSoftware: ZKBio CVAccess / ZKBioTalk
  Mobile App: ZKBio Zlink / ZSmart
  Cloud Service: ZKBio Zlink
• InstallationWall-mount (Compatible with Asian Gang-box / Single Gang-Box)
• CertificationsISO14001, ISO9001, CE, FCC
