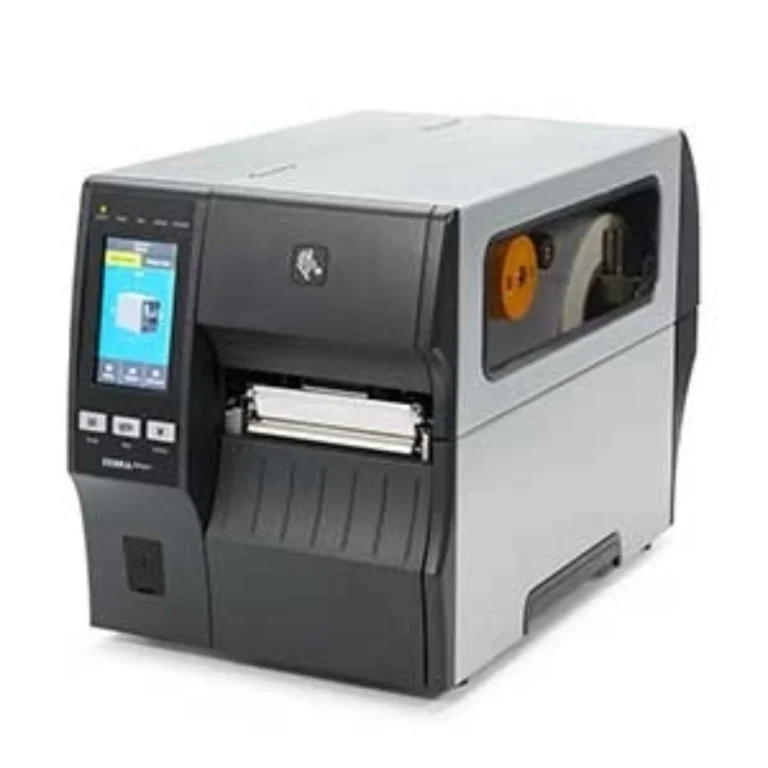

Zebra ZT411 (203 dpi) Description
Description
ZT411 -4-Inch-Thermal Transfer and Direct Thermal print modes – 203 dpi – 8 dot/mm – Max Print Width: 104mm – Media Handling: Peeler – UK and Euro Cords – USB 2.0, USB Host, Serial, 10/100 Ethernet, Bluetooth 2.1 – 256 MB RAM / 512 MB Flash – Adjustable Transmissive and Fixed Reflective Sensor – Real Time Clock – ZPL and EPL firmware.
Zebra ZT400 Series ZT411 Specifications
General
Printer Type
Label printer – direct thermal / thermal transfer – monochrome
Localisation
United Kingdom, Europe
Printer
Print Speed
Up to 356 mm/sec – max speed
Built-in Devices

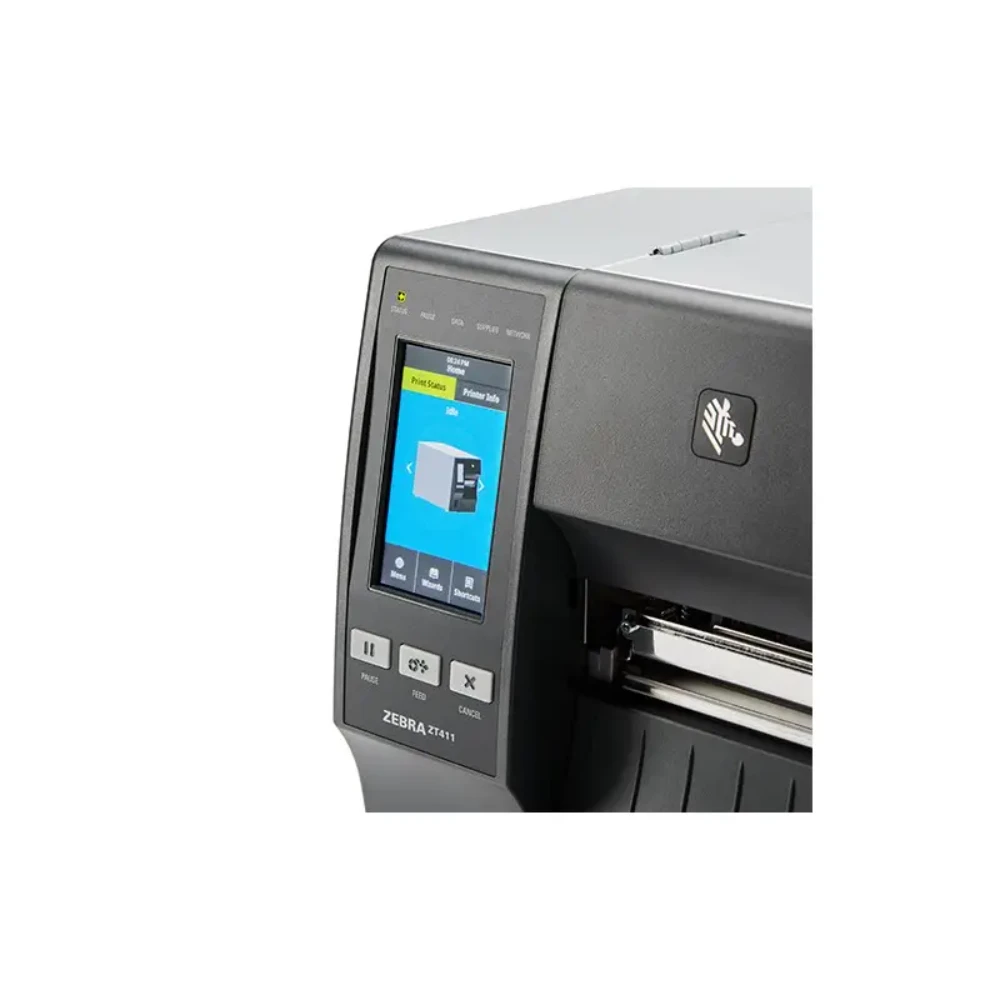

4.3 inch LCD touch screen
Connectivity Technology
Wireless
Interface
USB 2.0, LAN, serial, USB host, Bluetooth 4.1
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EZPL, ZBI 2.0
Features
Realtime clock, transmissive media sensor, reflective media sensor
Fonts Included
16 x bitmapped ¦ 2 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
RAM
RAM Installed (Max)
256 MB
Flash Memory
Flash Memory
512 MB
Media Handling
Media Type
Continuous labels, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
25.4 mm
Max Media Size (Custom)
114 mm
Media Sizes
Roll (2.54 – 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3988 mm
Media Thickness Range
0.058 mm – 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual – 1 roll – Roll (11.4 cm)
Networking
Networking
Print server
Expansion / Connectivity
Connections
1 x RS-232 ¦ 1 x USB 2.0 – 4 pin USB Type B ¦ 1 x LAN – RJ-45 ¦ 2 x USB host – 4 pin USB Type A
Miscellaneous
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, SABS, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, CCC, KCC, S Mark, cTUVus, MFI
Power
Power Device
Power supply – internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 – 85% (non-condensing)
Dimensions & Weight
Width
26.9 cm
Depth
49.5 cm
Height
32.4 cm
Weight
16.33 kg
