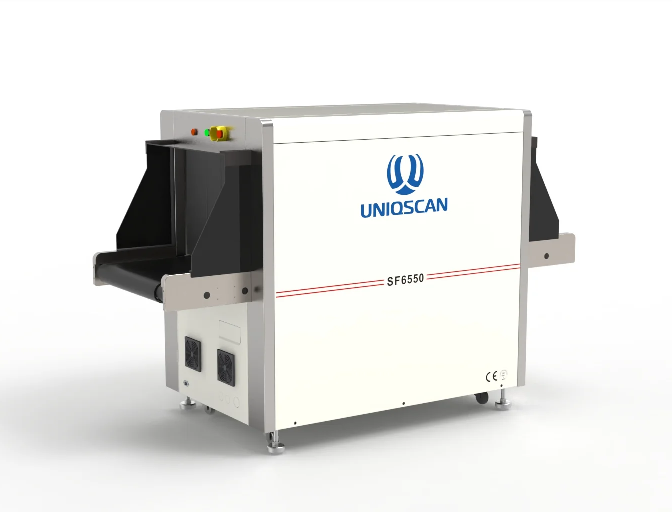

X-ray Baggage Scanner UNIQSCAN SF6550

X-ray Baggage Scanner UNIQSCAN SF6550

Product Description

The UNIQSCAN SF6550 X-Ray Baggage Scanner is a high-performance medium-size security inspection system designed for fast and accurate screening of hand luggage, backpacks, parcels, and small-to-medium cargo items. It is widely used in airports, government buildings, hotels, courts, metro stations, and high-security checkpoints where reliable threat detection and high throughput are required.

Built with advanced X-ray imaging technology and intelligent material discrimination features, the SF6550 ensures efficient detection of prohibited items such as weapons, explosives, drugs, and restricted materials.

The UNIQSCAN SF6550 is another model of X-ray baggage scanner that is widely used for security screening purposes in airports, train stations, government buildings, and other high-security facilities. This scanner is designed to provide efficient and reliable screening of baggage and various items.
The SF6550 boasts a sturdy construction with a spacious scanning tunnel, allowing for the screening of a wide range of baggage sizes and shapes. It employs advanced X-ray imaging technology to produce high-resolution images of the baggage contents. These images are displayed on a color monitor for analysis by trained operators.

Features and Benefits

One of the notable features of the UNIQSCAN SF6550 is its fast scanning speed, enabling rapid and streamlined screening operations, particularly in high-volume environments. The user-friendly interface and intuitive controls make it easy for operators to navigate through the X-ray images and identify potential threats with accuracy.
Similar to other modern X-ray baggage scanners, the SF6550 incorporates advanced capabilities such as automatic threat detection and image enhancement. These technologies enhance the accuracy and efficiency of the screening process, enabling operators to quickly identify potential threats and ensure the safety of the screening area.

The UNIQSCAN SF6550 is designed to meet international safety and security standards. It incorporates safety features such as radiation shielding and interlocks to safeguard the operators and passengers. The manufacturing process of the scanner undergoes rigorous testing and quality control measures to ensure its compliance with stringent security requirements.
UNIQSCAN X-ray baggage scanners like the SF6550 have become indispensable tools for enhancing security across various settings. By utilizing non-intrusive scanning technology, they enable the detection of dangerous items, such as weapons or explosives, without the need for physical searches. Consequently, they play a vital role in maintaining the safety and security of transportation hubs and other high-risk locations.
Please note that specific features and benefits of the SF6550 may vary depending on the manufacturer and model specifications. For accurate and up-to-date information about the SF6550 or any specific model, it is advisable to consult the official documentation or contact the UNIQSCAN directly.

Key Features

1. Medium Tunnel Size for Versatile Scanning
Equipped with a 650mm × 500mm tunnel, suitable for scanning a wide range of baggage sizes including suitcases, backpacks, and parcels.

2. High-Resolution X-Ray Imaging System
Uses advanced L-shaped detector array and 24-bit imaging technology to deliver clear, detailed internal images of scanned items.

3. Strong Penetration Capability
Capable of penetrating up to 36–40mm steel thickness, allowing detection of dense and hidden objects inside baggage.

4. Fast Conveyor System
Supports a conveyor speed of approximately 0.22 m/s, enabling smooth and continuous passenger flow in busy environments.

5. High Load Capacity
Can handle baggage weight up to 170 kg, making it suitable for heavy luggage and bulk scanning operations.

6. Advanced Image Processing Functions
Includes intelligent features such as:

• Color differentiation of materials
• High/low penetration view
• Edge enhancement
• Zoom in/out
• Threat image enhancement

7. Low Radiation & Safe Operation
Designed with controlled radiation leakage levels and safety compliance for secure operation in public environments.

8. Operator-Friendly Interface
Comes with a high-resolution monitor and intuitive control system for easy inspection and threat identification.

9. Image Storage & Review System
Allows storage, retrieval, and analysis of scanned images for security auditing and investigation.

10. Network Integration Capability
Supports LAN connectivity for centralized monitoring and multi-terminal security management.

Technical Specifications

• Model: SF6550
• Tunnel Size: 650 × 500 mm
• Conveyor Speed: 0.22 m/s
• Max Load Capacity: 170 kg
• Wire Resolution: 40 AWG
• Steel Penetration: 36–40 mm
• X-ray System: Single-energy (industrial grade)
• Detector Type: L-shaped array detector
• Display: High-resolution color LCD monitor
• Power Supply: 220V AC (standard industrial use)
• Operating System: Industrial embedded system
• Data Interface: LAN / USB support
• Noise Level: Low operational noise (<58 dB typical)

Applications

• Airports and aviation security
• Government buildings and embassies
• Metro and railway stations
• Hotels and corporate security checkpoints
• Customs and border control
• Public events and stadiums
• Parcel and cargo inspection centers

Frequently Asked Questions (FAQs)

1. What is the UNIQSCAN SF6550 used for?
It is used to scan baggage and parcels for security threats such as weapons, explosives, and prohibited items.

2. What size luggage can it scan?
It can scan medium to large hand luggage and parcels using a 650 × 500 mm tunnel.

3. Is the SF6550 suitable for airports?
Yes, it is widely used in airports, transport hubs, and high-security facilities.

4. What is its scanning speed?
It operates at a conveyor speed of 0.22 m/s, suitable for continuous screening.

5. Can it detect hidden weapons or explosives?
Yes, it uses high-resolution imaging and strong penetration capability to detect concealed threats.

6. Does it store scanned images?
Yes, it supports image storage and retrieval for security review and reporting.

7. Is it safe for operators?
Yes, it operates with controlled low radiation levels and safety shielding.

8. What type of detector does it use?
It uses an L-shaped array detector with 24-bit imaging technology.

9. Can it be connected to a network?
Yes, it supports LAN connectivity for centralized monitoring.

10. Does it require trained operators?
Yes, trained security personnel are recommended for effective threat identification and operation.
