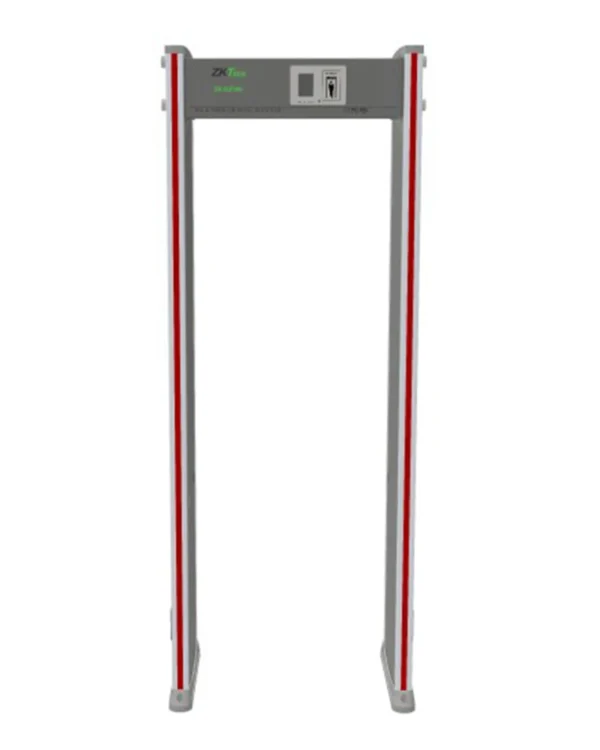

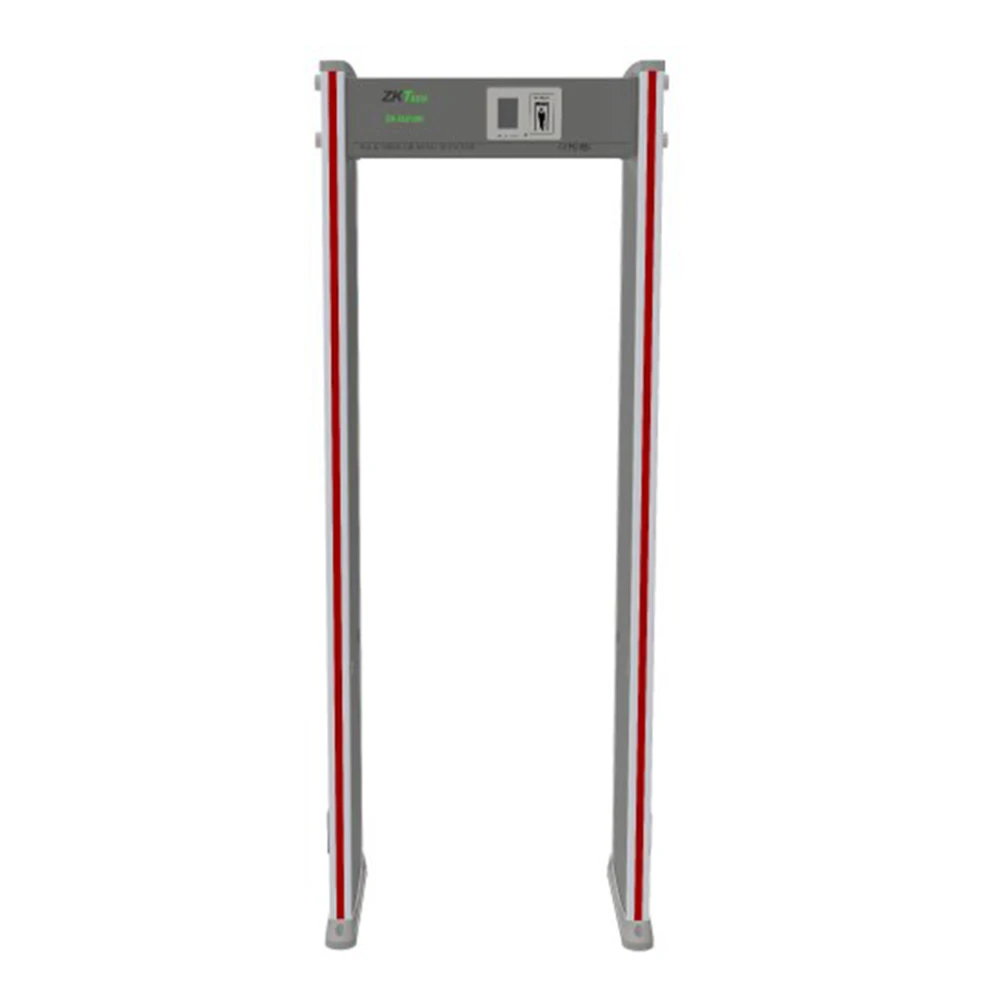

WALK THROUGH METAL DETECTOR ZK-D1065S 6 Zones Standard

WALK THROUGH METAL DETECTOR ZK-D1065S 6 Zones Standard

Product Overview

The ZK-D1065S uses electromagnetic field detection technology to identify metallic objects on a person’s body. When metal is detected, the system triggers an alarm and indicates the general zone location, helping security staff quickly identify threats.

Its 6-zone configuration makes it a standard entry-level walk-through detector, ideal for environments that do not require advanced multi-zone precision.

Product Description

The ZKTeco ZK-D1065S Walk Through Metal Detector is a reliable and cost-effective walk-through security screening system designed for basic to medium-level security applications. With its 6 detection zones, it provides accurate metal detection on individuals while maintaining smooth passenger flow.

It is widely used in schools, offices, factories, events, government buildings, and public entry points where fast and simple screening is required.

Key Features

1. 6 Detection Zones (Standard Model)
Divides the body into 6 overlapping zones for basic location-based detection of metal objects.

2. Adjustable Sensitivity (100 Levels per Zone)
Allows fine tuning to detect:

• Weapons
• Large metal objects
• While ignoring small harmless items like keys or coins (when configured)

3. Audio & LED Alarm System
Triggers sound alarms and LED indicators to notify security staff instantly.

4. People & Alarm Counting Function
Tracks:

• Number of people passing through
• Number of alarm events

5. Infrared Sensor Technology
Automatically detects movement and helps manage entry flow efficiently.

6. Anti-Interference Design
Stable performance even in environments with electrical noise or interference.

7. Simple Installation Structure
Designed for quick assembly with minimal components, making installation easy.

8. Safe for Humans
Harmless to:

• Pregnant women
• Individuals with pacemakers
• Electronic devices

9. Fire-Resistant Material Body
Built with high-density fire-retardant material for safety and durability.

10. Self-Diagnostic System
Automatically checks system status on startup, reducing maintenance needs.

Features

• Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones
• Sensitivity adjustable: Each zone has 100 sensitivity levels
• Sound & LED alarm: Both Side LED indicators, easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on the control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cablesand 8 screws, simply-to-follow instruction.
• Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
• Using high-density fireproof material
• Program Self-diagnostic when power on, no need for initial or periodic calibration
• Modularization design is easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• 4-8 hours backup battery (Option)

Technical Specifications (Typical)

• Model: ZK-D1065S
• Detection Zones: 6
• Sensitivity Levels: 100 per zone
• Power Supply: AC 100–240V
• Operating Temperature: -20°C to +50°C
• Working Frequency: 4–8 KHz
• Alarm System: Sound + LED indicators
• Display: LED / basic control panel
• Throughput: Medium to high passenger flow
• Structure Size: Approx. 2200mm height standard archway

Applications

• Schools and universities
• Corporate offices
• Factories and warehouses
• Public events and exhibitions
• Government buildings
• Transport entry points
• Basic security checkpoints

Frequently Asked Questions (FAQs)

1. What is the ZK-D1065S used for?
It is used to detect metal objects on people passing through security checkpoints.

2. How many detection zones does it have?
It has 6 detection zones for basic body coverage.

3. Can it detect small objects?
Yes, but it is mainly optimized for medium and large metal objects.

4. Does it show exact metal location?
It shows general zone-based detection, not highly detailed pinpointing.

5. Is it safe for humans?
Yes, it is completely safe for all users.

6. What is its main advantage?
It is simple, affordable, and easy to operate.

7. Where is it commonly used?
In schools, offices, factories, and public entry points.

8. Does it count people?
Yes, it includes people and alarm counting features.

9. Is it suitable for high-security areas?
It is better suited for low to medium security environments.

10. Is installation complicated?
No, it is designed for quick and easy installation.

Why Choose ZK-D1065S (6 Zone)?

The ZK-D1065S is designed for organizations that need a simple, affordable, and reliable security screening solution. It is ideal for basic entry control, offering fast throughput, easy operation, and dependable detection without the complexity of advanced multi-zone systems.
