Uniqscan UB500 – Walk Through Metal Detector
Short Description
- Walk Through Metal Detector for Security Screening
- Available in 6-Zone and 18-Zone Configurations
- 100 Adjustable Sensitivity Levels per Zone
- Bilateral Transmission and Bilateral Reception
- Frequency Adjustable from 5.9KHz to 8.6KHz
- 5-Digit LED Pass Count and Alarm Count Display
- Infrared Passing Sensor
- Detection Speed up to 60 Persons per Minute
- Automatic Self-Diagnostic Function
- Sound and LED Alarm Indication
- Password Protection for Authorized Operation
- Easy Modular Installation and Maintenance
- Safe for Human Body
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

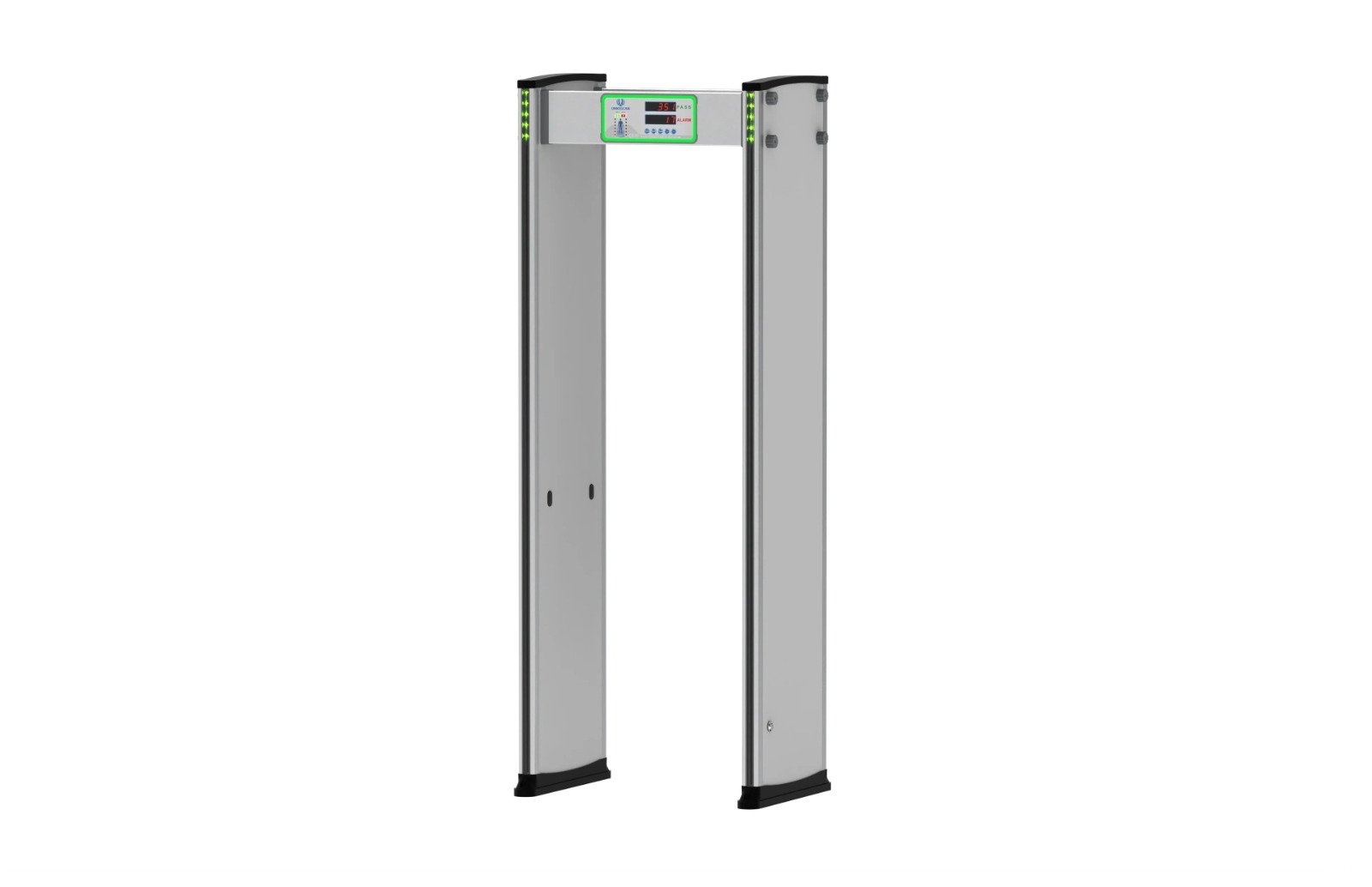

Uniqscan UB500 – Walk Through Metal Detector
Product Description
The Uniqscan UB500 is a professional walk-through metal detector designed for efficient security screening at entrances and checkpoints. It is available in 6-zone and 18-zone configurations, with adjustable sensitivity for different security requirements. The manufacturer lists the UB500 within its UB Series of walk-through metal detectors.
The detector is suitable for locations requiring controlled security screening and efficient pedestrian flow, including airports, railway stations, shopping malls, banks, schools, offices, hotels, factories and other security-sensitive facilities.
Key Features
- Walk Through Metal Detector
- 6-Zone / 18-Zone Options
- 100 Sensitivity Levels per Zone
- Sensitivity Adjustable from 0–99
- Bilateral Transmission and Reception
- 5.9KHz–8.6KHz Adjustable Frequency
- 5-Digit LED Display
- Pass Count and Alarm Count
- Sound and LED Alarm
- Infrared Passing Sensor
- Up to 60 Persons/Minute Passing Speed
- Automatic Self-Diagnostic
- Password Protection
- Modular Construction
- Easy Installation
- Safe for Human Body
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Uniqscan |
| Model | UB500 |
| Product Type | Walk Through Metal Detector |
| Detection Zones | 6 Zone / 18 Zone |
| Detection Mode | Bilateral Transmission & Bilateral Reception |
| Sensitivity | 0–99, 100 Levels Adjustable per Zone |
| Frequency | 5.9KHz–8.6KHz Continuously Adjustable |
| Visual Display | 5-Digit LED Display |
| Display Functions | Pass Count & Alarm Count |
| Alarm | Sound & LED Alarm |
| Infrared Sensor | Included |
| Passing Speed | Up to 60 Persons/Minute |
| Self-Diagnostic | Supported |
| Password Protection | Supported |
| Multi-Unit Synchronization | Manual |
| Remote Control | Not Included |
| Protection Class | IP53 listed for the UB500 specification |
| Operating Temperature | -20°C to +45°C |
| Working Humidity | 0–95%, Non-Condensing |
| Power Supply | AC 110V/220V, 50/60Hz |
| Power Consumption | Less than 12W |
| Construction | MDF, Gray |
| Cable Connector | DB25 |
| Installation | Vertical Installation |
Specifications can vary between UB500 configurations and regional versions; the above technical values are based primarily on the published UB500 specification and supporting product documentation.
Applications
The Uniqscan UB500 is suitable for security screening at airports, railway stations, schools, offices, hotels, shopping malls, banks, factories, government facilities, event venues and other controlled-access locations.
Advantages
- Multi-Zone Security Screening
- Adjustable Sensitivity
- Sound & LED Alarm Indication
- 5-Digit Passenger & Alarm Counter
- Infrared Passing Detection
- High Throughput up to 60 Persons/Minute
- Automatic Self-Diagnostic
- Password-Protected Controls
- Modular and Easy-to-Maintain Design
- Suitable for High-Traffic Security Checkpoints
