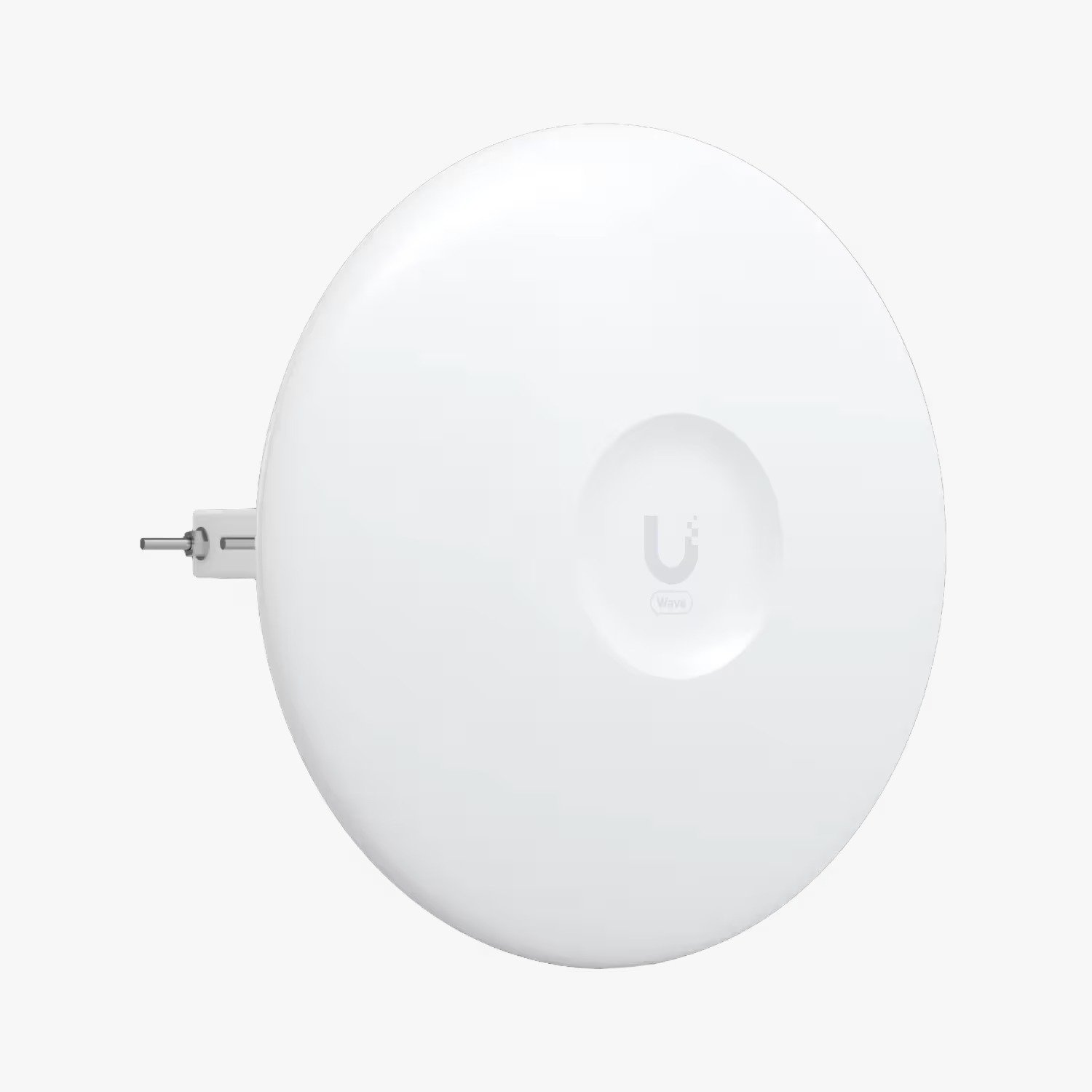

Ubiquiti Wave Pro – 60GHz 5.4Gbps Long-Range Point-to-Point Wireless Radio
Short Description
- High-Capacity 60 GHz Point-to-Point Wireless Radio
- Up to 5.4 Gbps Total Throughput
- Up to 15 km Point-to-Point Link Range
- 46 dBi Integrated Antenna Gain
- 1.3° Narrow Beamwidth
- 5 GHz 800+ Mbps Weather-Resilient Backup Radio
- WiFi 6 Backup Radio with 22 dBi Antenna Gain
- 2 × 2.5 GbE RJ45 Ports
- 1 × 10G SFP+ Port
- Integrated GPS and Bluetooth
- GPS Synchronization Support
- 2160 / 1080 / 540 MHz Channel Bandwidth
- 512 MB DDR3L Memory
- Quad-Core 1.4 GHz ARM Cortex-A53 Processor
- IPX6 Weatherproofing
- 48V 0.65A 2.5 GbE PoE Adapter Included
- 26W Maximum Power Consumption
- -40°C to +60°C Operating Temperature
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti Wave Pro – 60GHz 5.4Gbps Long-Range Point-to-Point Wireless Radio
Product Description
The Ubiquiti Wave Pro is a high-capacity 60 GHz wireless radio designed for long-distance point-to-point (PtP) and point-to-multipoint station deployments. It provides up to 5.4 Gbps total throughput with a maximum PtP link range of up to 15 km, making it suitable for high-speed wireless backhaul, enterprise connectivity, ISP infrastructure, and building-to-building network links.
Key Features
- 60 GHz High-Capacity Wireless Radio
- Up to 5.4 Gbps Total Throughput
- 2.7 Gbps Duplex Throughput
- Up to 15 km PtP Range
- 46 dBi Integrated 60 GHz Antenna
- 1.3° Narrow Beamwidth
- 5 GHz 800+ Mbps Backup Radio
- WiFi 6 Weather-Resilient Backup
- 22 dBi 5 GHz Backup Antenna
- Integrated GPS and Bluetooth
- GPS Synchronization
- 2 × 2.5 GbE RJ45 Ports
- 1 × 10G SFP+ Port
- UISP Management
- Precision Alignment Mount
- IPX6 Weatherproofing
- Passive PoE
- 48V 0.65A PoE Adapter Included
- 200 km/h Wind Survivability
Technical Specifications
| Specification | Details |
|---|---|
| Model | Wave Pro |
| Product Type | 60 GHz High-Capacity Wireless Radio |
| Primary Application | Point-to-Point Wireless Bridge |
| Operating Modes | PtP, PtMP Station |
| Primary Frequency | 57–71 GHz |
| Primary Throughput | 5.4 Gbps Total |
| Duplex Throughput | 2.7 Gbps |
| Maximum PtP Range | Up to 15 km |
| 60 GHz Channel Bandwidth | 2160 / 1080 / 540 MHz |
| 60 GHz Modulation | 16QAM, QPSK |
| 60 GHz Antenna Gain | 46 dBi |
| 60 GHz Polarization | Vertically Linear |
| 60 GHz Beamwidth | 1.3° Azimuth / 1.3° Elevation |
| Backup WiFi Standard | 802.11ax / WiFi 6 |
| Backup Frequency | 5150–5875 MHz Worldwide |
| Backup Channel Bandwidth | 20 / 40 / 80 MHz |
| Backup Maximum TX Power | 27 dBm |
| Backup Antenna Gain | 22 dBi |
| Backup Polarization | Dual-Linear |
| Backup Beamwidth | 8° Azimuth / 8° Elevation |
| Backup Modulation | Up to 1024QAM |
| Networking Interfaces | 2 × 2.5 GbE RJ45 + 1 × 10G SFP+ |
| Processor | Quad-Core ARM Cortex-A53, 1.4 GHz |
| Memory | 512 MB DDR3L |
| GPS | Yes |
| Bluetooth | Yes |
| Encryption | WPA2-PSK (AES) |
| Power Method | Passive PoE |
| PoE Adapter | 48V DC, 0.65A, 2.5 GbE |
| Maximum Power Consumption | 26W |
| Weatherproofing | IPX6 |
| Dimensions | Ø424.4 × 166.2 mm |
| Weight Without Mount | 2.8 kg |
| Weight With Mount | 4 kg |
| Pole Mount Diameter | 25–76.2 mm |
| Wind Loading | 369 N @ 200 km/h |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 5–95% Non-Condensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
Applications
- Long-Range Point-to-Point Wireless Links
- ISP Wireless Backhaul
- Building-to-Building Network Connectivity
- Enterprise Network Backhaul
- Campus Network Connectivity
- High-Speed Internet Backhaul
- WISP Infrastructure
- Fiber Replacement Links
- Remote Site Connectivity
- High-Capacity Outdoor Networking
Advantages
- 5.4 Gbps total wireless throughput
- Long-range 60 GHz connectivity up to 15 km
- 46 dBi integrated high-gain antenna
- Weather-resilient 5 GHz backup radio
- High-speed 2.5 GbE and 10G SFP+ interfaces
- Integrated GPS and Bluetooth
- Precision alignment mounting
- UISP centralized management
- IPX6 outdoor protection
- Rugged construction for professional deployments
