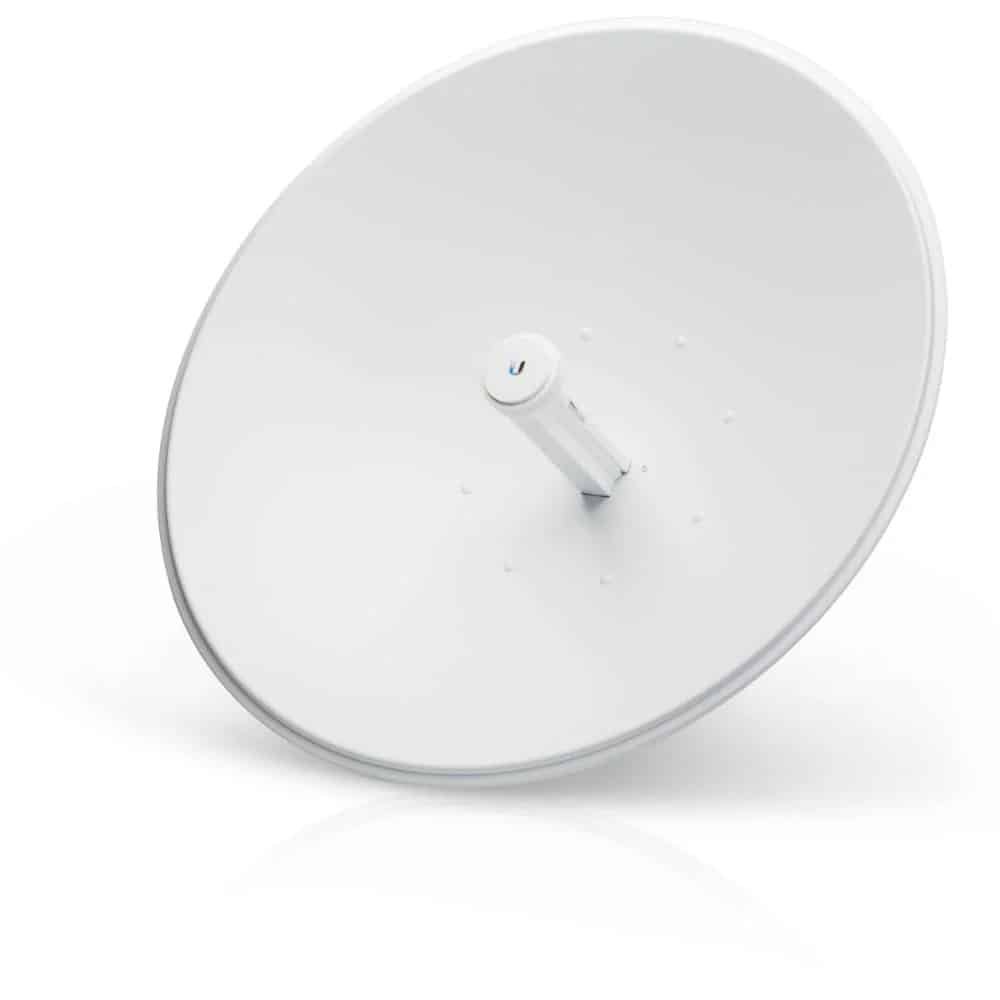

Ubiquiti PBE-5AC-620 – PowerBeam 5AC 620 29dBi 5GHz airMAX AC Wireless Bridge
Short Description
- 5 GHz High-Performance Outdoor Wireless Bridge
- 29 dBi High-Gain Directional Dish Antenna
- Up to 450+ Mbps Real TCP/IP Throughput
- airMAX AC Technology with TDMA
- 1 × 10/100/1000 Mbps Gigabit Ethernet Port
- Point-to-Point and Point-to-Multipoint Support
- PtP Channel Width up to 80 MHz
- PtMP Channel Width up to 40 MHz
- Passive PoE Powered
- 24V 0.5A Gigabit PoE Adapter Included
- 620 × 620 × 386 mm Large-Dish Design
- 6.4 kg Weight
- Pole-Mount Installation
- 200 km/h Wind Survivability
- -40°C to +70°C Operating Temperature
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti PBE-5AC-620 – PowerBeam 5AC 620 29dBi 5GHz airMAX AC Wireless Bridge
Product Description
The Ubiquiti PBE-5AC-620 PowerBeam 5AC 620 is a high-performance 5 GHz outdoor wireless bridge and CPE designed for long-range, high-capacity wireless connectivity. It features a large 29 dBi directional dish antenna combined with Ubiquiti airMAX AC technology for efficient wireless communication and reliable network backhaul.
Designed for professional outdoor deployments, the PowerBeam 5AC 620 is suitable for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) networks, ISP and WISP infrastructure, building-to-building links, CCTV backhaul, enterprise connectivity, and remote network extension.
Key Features
- 29 dBi high-gain directional antenna
- 5 GHz outdoor wireless bridge and CPE
- 450+ Mbps real TCP/IP throughput
- airMAX AC technology
- Access Point and Station operating modes
- Point-to-Point and Point-to-Multipoint support
- 1 × Gigabit Ethernet RJ45 port
- 10/20/30/40/50/60/80 MHz PtP channel widths
- 10/20/30/40 MHz PtMP channel widths
- Passive PoE 2-pair power
- 24V 0.5A Gigabit PoE adapter included
- 620 mm high-gain dish reflector
- UV-stabilized outdoor construction
- Pole-mount installation
- 200 km/h wind survivability
- ±24 kV air/contact ESD protection
- -40°C to +70°C operating temperature
- 5–95% non-condensing humidity
- CE, FCC, IC and RoHS certifications
- NDAA compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ubiquiti |
| Model | PBE-5AC-620 |
| Product Name | PowerBeam 5AC 620 |
| Product Type | Outdoor Wireless Bridge / CPE |
| Wireless Technology | airMAX AC |
| Frequency Band | 5 GHz |
| Supported Frequency Range | 5150–5875 MHz |
| Antenna Gain | 29 dBi |
| Antenna Type | Directional Dish |
| Throughput | 450+ Mbps Real TCP/IP |
| Networking Interface | 1 × 10/100/1000 Mbps Gigabit Ethernet |
| Operating Modes | Access Point / Station |
| PtP Channel Width | 10/20/30/40/50/60/80 MHz |
| PtMP Channel Width | 10/20/30/40 MHz |
| Polarization | Dual-Linear |
| Maximum VSWR | 1.6:1 |
| Power Method | Passive PoE 2-Pair |
| PoE Adapter | 24V, 0.5A Gigabit PoE |
| Supported Voltage | 20–27V DC |
| Maximum Power Consumption | 8.5W |
| Enclosure Material | UV-Stabilized Polycarbonate |
| Mounting | Pole Mount |
| Dimensions | 620 × 620 × 386 mm |
| Weight | 6.4 kg |
| Wind Survivability | 200 km/h |
| ESD Protection | ±24 kV Air / Contact |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | 5–95% Non-Condensing |
| Certifications | FCC, IC, CE, RoHS |
| NDAA Compliant | Yes |
Applications
- Point-to-Point wireless links
- Point-to-Multipoint wireless networks
- Long-range wireless backhaul
- Building-to-building connectivity
- ISP and WISP infrastructure
- CCTV and surveillance backhaul
- Enterprise outdoor networking
- Campus network connectivity
- Remote site connectivity
- Outdoor broadband networks
- High-capacity wireless infrastructure
Advantages
- 29 dBi high-gain antenna for focused long-range wireless connectivity
- 450+ Mbps real TCP/IP throughput
- 5 GHz airMAX AC technology
- Large 620 mm directional dish for enhanced beam directivity
- Gigabit Ethernet connectivity
- Supports both PtP and PtMP deployments
- Multiple channel bandwidth options
- Rugged outdoor construction
- 200 km/h wind survivability
- Passive PoE with included Gigabit PoE adapter
- Wide operating temperature range
- Professional solution for ISP and wireless backhaul deployments
