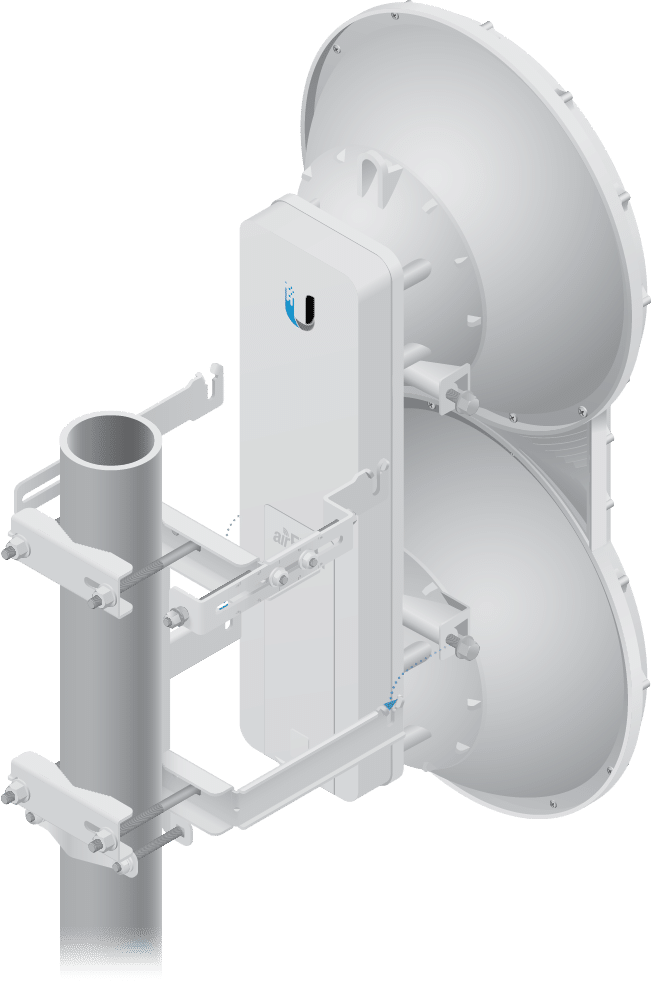

Ubiquiti AF-5U – airFiber 5 High-Band 5GHz Full-Duplex Point-to-Point Bridge
Short Description
- 5 GHz High-Performance Full-Duplex Point-to-Point Wireless Bridge
- Up to 1.2+ Gbps Maximum Throughput
- Up to 100+ km Maximum Range
- 23 dBi Integrated TX/RX Antenna Gain
- 6° Beamwidth with 70 dB Front-to-Back Ratio
- Dual-Slant Polarization
- 5725–5850 MHz FCC/IC Frequency Range
- Up to 6200 MHz Support in Other Regions
- 10/20/30/40/50 MHz Channel Bandwidth
- 1024QAM MIMO Modulation
- GPS Clock and Radio Frame Synchronization
- 128-Bit AES Encryption
- 1 × Gigabit Ethernet + 1 × 10/100 Mbps Ethernet
- Passive 4-Pair PoE with 50V 1.2A Gigabit PoE Adapter
- 40W Maximum Power Consumption
- 200 km/h Wind Survivability
- -40°C to +55°C Operating Temperature
- 16 kg Rugged Outdoor Construction
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
Ubiquiti AF-5U – airFiber 5 High-Band 5GHz Full-Duplex Point-to-Point Bridge
Product Description
The Ubiquiti AF-5U airFiber 5 High-Band is a high-performance 5 GHz full-duplex point-to-point wireless bridge designed for long-distance carrier backhaul, enterprise networking, ISP infrastructure, and high-capacity wireless links. It delivers up to 1.2+ Gbps throughput and supports distances of up to 100+ km, depending on the regulatory region and deployment conditions.
Key Features
- 5 GHz High-Band Point-to-Point Bridge
- Up to 1.2+ Gbps Throughput
- Up to 100+ km Maximum Range
- 23 dBi TX/RX Antenna Gain
- 6° Beamwidth
- 70 dB Front-to-Back Ratio
- Dual-Slant Polarization
- 28 dB Cross-Polarization Isolation
- GPS Clock and Radio Frame Synchronization
- 128-Bit AES Encryption
- 1024QAM MIMO
- 1 × Gigabit Ethernet Port
- 1 × 10/100 Mbps Ethernet Port
- RJ-12 Alignment Tone Port
- Passive 4-Pair PoE
- 50V 1.2A Gigabit PoE Adapter Included
- 200 km/h Wind Survivability
- NDAA Compliant
Technical Specifications
| Specification | Details |
|---|---|
| Model | AF-5U |
| Product Series | airFiber 5 High-Band |
| Application | Point-to-Point Wireless Bridge |
| Frequency Range | 5725–5850 MHz FCC/IC; 5725–5875 MHz ETSI; 5725–6200 MHz other regions |
| Maximum Throughput | 1.2+ Gbps |
| Maximum Range | 100+ km |
| Antenna Gain | 23 dBi TX / 23 dBi RX |
| Beamwidth | 6° |
| Front-to-Back Ratio | 70 dB |
| Polarization | Dual-Slant |
| Cross-Polarization Isolation | >28 dB |
| Channel Bandwidth | 10 / 20 / 30 / 40 / 50 MHz |
| Modulation | 1024QAM, 256QAM, 64QAM, 16QAM, QPSK, xRT QPSK |
| Synchronization | GPS |
| Frequency Accuracy | ±2.5 ppm without GPS / ±0.2 ppm with GPS |
| Encryption | 128-Bit AES |
| Ethernet Ports | 1 × Gigabit RJ45 + 1 × 10/100 Mbps RJ45 |
| Auxiliary Port | 1 × RJ-12 Alignment Tone |
| Power Method | Passive 4-Pair PoE |
| PoE Adapter | 50V 1.2A Gigabit PoE |
| Supported Voltage | 42–58V DC |
| Maximum Power Consumption | 40W |
| Dimensions | 938.4 × 468.4 × 281.4 mm |
| Weight | 16 kg |
| Mounting | Pole Mount Kit Included |
| Wind Loading | 863 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| Operating Temperature | -40°C to +55°C |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
Applications
- Long-Distance Point-to-Point Wireless Links
- ISP Wireless Backhaul
- Telecom and Carrier Backhaul
- Enterprise Campus Connectivity
- Building-to-Building Network Links
- High-Capacity Data Backhaul
- Remote Site Connectivity
- Dedicated Wireless Infrastructure
Advantages
- High-capacity 1.2+ Gbps wireless throughput
- Long-distance connectivity up to 100+ km
- Integrated high-gain directional antenna
- GPS-based synchronization
- Advanced MIMO modulation
- 128-bit AES wireless encryption
- Gigabit Ethernet connectivity
- Rugged outdoor construction
- High wind survivability
- Designed for professional wireless backhaul deployments
