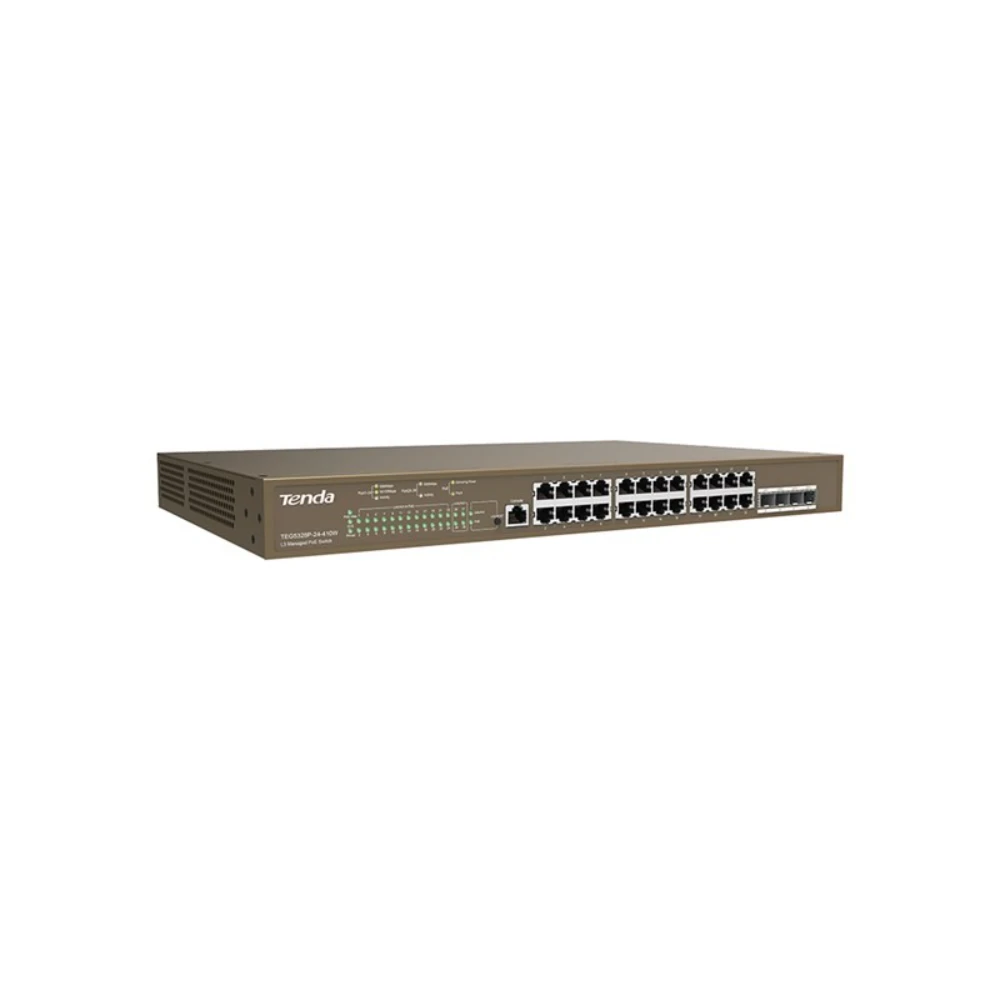

Tenda TEG5328P-24-410W

”

TENDA TEG5328P-24-410W DESCRIPTION

TEG5328P-24-410W    /    SWITCH    /    L3 MANAGED POE SWITCH

TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.

Specification

Model

TEG5328P-24-410W

Network standard

IEEE802.3? IEEE802.3u? IEEE802.3ab? IEEE802.3z? IEEE802.3x? IEEE802.3af/at? IEEE802.1p?IEEE802.1q? IEEE802.1w? IEEE802.1d? IEEE802.1s

LED indicator

One Link/Act or PoE LED indicator for each port

One Link/One Link/Act mode converting LED indicator for each device

One PoE mode converting LED indicator for each device

One PoE Max LED indicator for each device

One Power LED indicator for each device

One SYS LED indicator for each device

Interface

24 x 10/100/1000 Base-T Ethernet ports

4 x 1000 Base-X SFP ports

1 x Console port

Fan Quantity

2

Level of protection

Lightning protection for ports: ?6kV (common mode)

Lightning protection for power: ?6kV (common mode), ?4kV (differential mode)

ESD:

Air discharge: ±8kV

Contact discharge: ±6kV

Forwarding Mode

Store-and-forward

Switching Capacity

56Gbps

Packet Forwarding Rate

41.7Mpps

Buffer

12Mb

MAC Address Table

16K

Jumbo Frame

10K

PoE power supply

Support

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 370W

Input Voltage

100-240V AC 50/60Hz

Power Consumption

Full load: ?432W

Empty load: ?23W

Dimension

440 mm x 284 mm x 44 mm(L*W*H)

Mounting options

Desktop mounting

Rack mounting (19? 1U)

Wall mounting

Energy Efficient

Support

Environment

Operating temperature: 0°C – 45?

Storage temperature: -40°C – 70°C

Operating humidity: (10% – 90%)RH, non-condensing

Storage humidity: (5% – 90%)RH, non-condensing

Certification

CCC?FCC?CE?RoHS

L3 Features

Supports VLAN-based routing

Supports IPv4 static routing

Supports static ARP

PoE Supply

Supports port PoE configuration and power supply with priority

Supports PoE over-temperature protection

Supports PoE scheduled management

Supports intelligent management and PoE-powered device detection

(port status, power assignment and PoE-powered device status)

Security features

ARP receiving limit

Unknown MAC address discard

DoS attack defense

802.1x security authentication

Radius authentication

VLAN

IEEE 802.1Q VLAN

VLAN Layer-3 interfaces

Supports three-port modes: Access, Trunk and Hybrid

DHCP

DHCP Relay

DHCP Snooping

Supports Option 82 policy configuration

Port Aggregation

Static aggregation

LACP dynamic aggregation

Spanning tree

IEEE 802.1d STP (Spanning Tree Protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)

Supports edge port

Supports BPDU statistics

Multicast

IGMP Snooping V1/V2/V3

Supports port fast leave

Port Mirroring

Supports N: 1 port mirroring

QoS

SP (Strict Priority)

SWRR (Simple Weighted Round Robin)

WRR (Weighted Round Robin)

Supports 802.1p port trust mode

Supports DSCP port trust mode

Supports a maximum of 8 queue service quality mapping

ACL

Supports MAC ACL and IP ACL

Loading and upgrade

Supports FTP/TFTP/HTTP upgrade

Supports configuration import and export

Management and maintenance

Supports Telnet, Console

Supports SNMP V1/V2/V3

Supports WEB management and maintenance

Supports Ping/Tracert/Connection Detection

CPU Monitoring and memory monitoring”
