Superlead 7708 – 2D Presentation Barcode Scanner
Short Description
- 2D Presentation Barcode Scanner with 1D, 2D & QR Code Support
- 1280 × 1080 Pixel Image Resolution
- USB & RS232 Interfaces
- 650nm Red LED Illumination
- Wide 38.5° × 32.5° Field of View
- Supports Multiple Barcode Formats including PDF417, DataMatrix, QR Code, Aztec & Hanxin
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

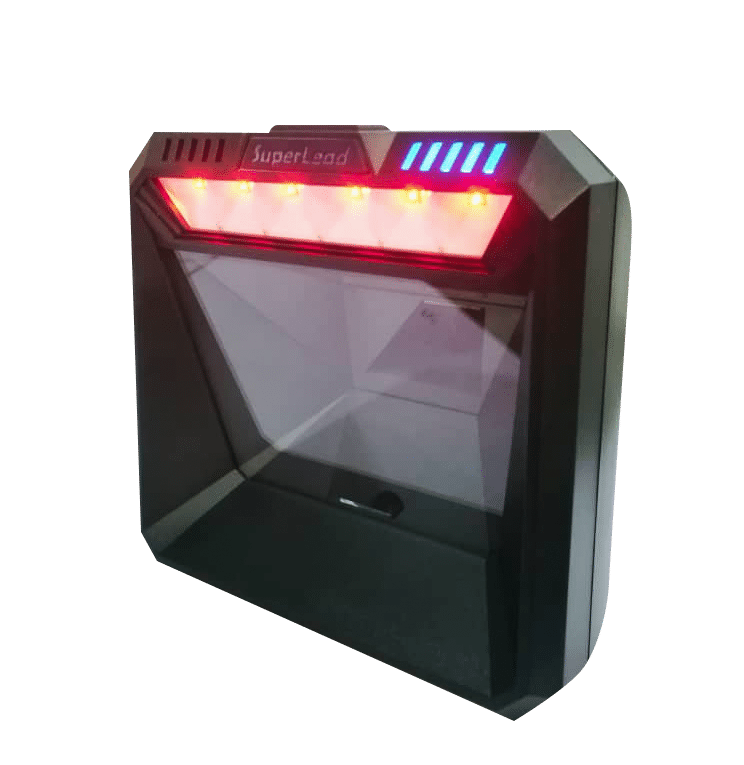

Superlead 7708 – 2D Presentation Barcode Scanner
Product Description
The Superlead 7708 is a versatile 2D presentation barcode scanner designed for retail, POS, inventory, and other commercial scanning applications. It supports a wide range of 1D and 2D barcode formats, including QR Code, DataMatrix, PDF417, Aztec, Hanxin, UPC, EAN, Code 128, Code 39, and more.
Key Features
- 1D & 2D Barcode Scanner
- QR Code Support
- 1280 × 1080 Pixel Image Resolution
- 650nm Red LED Illumination
- 38.5° × 32.5° Field of View
- USB & RS232 Interfaces
- Multiple Barcode Format Support
- 5V DC Power
- Compact Countertop Design
Technical Specifications
| Specification | Details |
|---|---|
| Model | Superlead 7708 |
| Product Type | 2D Presentation Barcode Scanner |
| Light Source | 650nm Red LED |
| Field of View | 38.5° × 32.5° |
| Roll / Pitch / Yaw | 360° / ±65° / ±60° |
| Image Resolution | 1280 × 1080 pixels |
| Interfaces | USB, RS232 |
| Decode Range | 4 mil: 0–50mm; 5 mil: 0–100mm; 13 mil: 0–220mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Voltage | 5 VDC |
| Current | 500mA |
| Dimensions | 152 × 149 × 80 mm |
| Weight | 376g |
Applications
The Superlead 7708 is suitable for retail stores, supermarkets, POS counters, inventory management, ticketing, billing systems, warehouses, and other commercial environments requiring reliable 1D and 2D barcode scanning.
Advantages
- 1D & 2D Barcode Support
- QR Code Scanning
- USB & RS232 Connectivity
- High Image Resolution
- Wide Field of View
- Flexible Scanning Angles
- Multiple Barcode Format Support
- Presentation-Style Countertop Design
