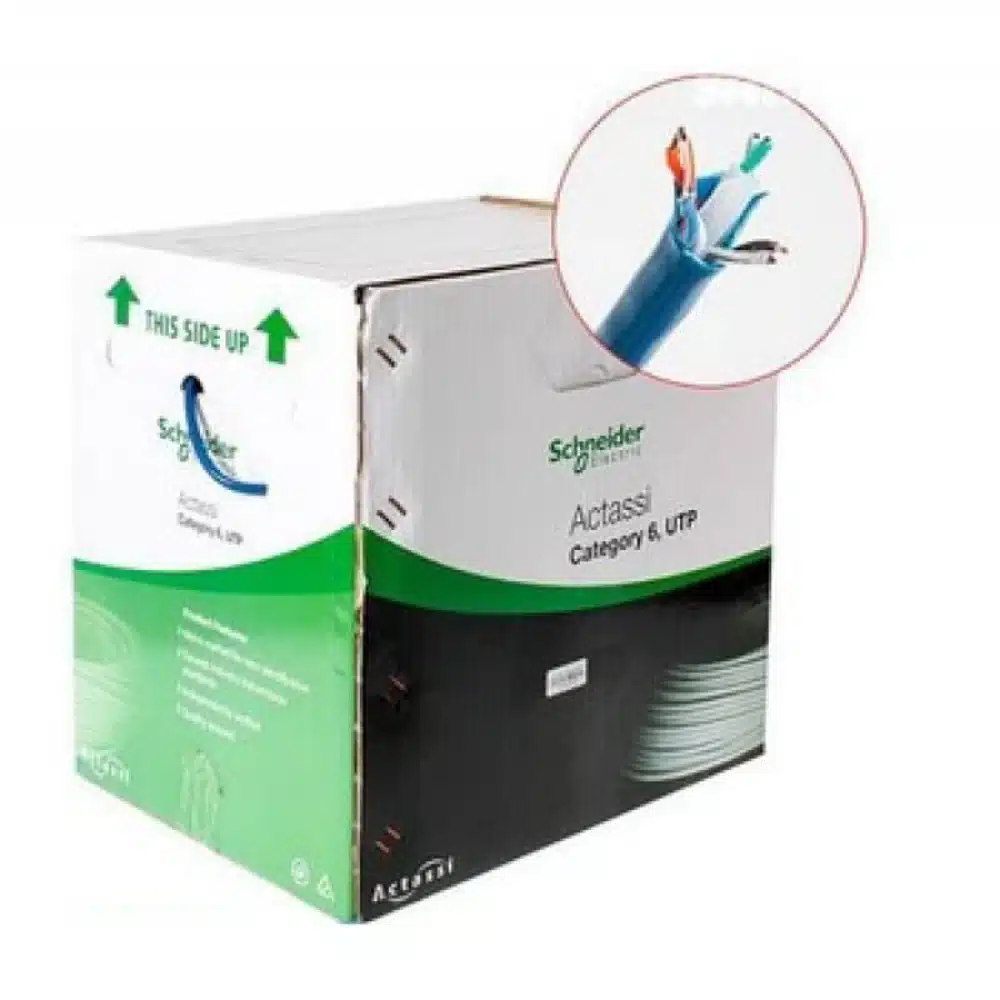

Schneider Actassi Cat6 UTP Unshielded Cable Roll, 305M

Name: Schneider Actassi Cat6 UTP Unshielded Cable Roll, 305M
SKU: 10972
Price: 55000 PKR
Availability: InStock

Original price was: ₨58,000.Current price is: ₨55,000.

Categories: Cat-6 UTP Cables, Networking Cables, Networking Products Tag: cat6

ACT4P6UCM3RBBU – Schneider Actassi Cat6 UTP Unshield Cable Roll, 305M
CAT6 4Pair Unshield Twisted Pair, CM rated, Schneider Actassi, 23AWG, 305m/box, Blue

Description
Reviews (0)

Description

Schneider Actassi Cat6 UTP Roll, 305M Characteristics

Main

Range of product	Actassi
Product or component type	Copper cable

Complementary

Type of cable	4 pair cables
Cable shielding type	UTP
Communication network category	6
Flame retardance	CM
Return loss	20.1 dB, at 100 MHz 25 dB, at 20 MHz 21.5 dB, at 62.5 MHz 24.5 dB, at 8 MHz 25 dB, at 10 MHz 24.3 dB, at 25 MHz 23.6 dB, at 31.25 MHz 25 dB, at 16 MHz 23 dB, at 4 MHz 19.4 dB, at 0.772 MHz 20 dB, at 1 MHz
Attenuation	22 dB at 100 MHz, cable length 100 m 1.8 dB at 0.772 MHz, cable length 100 m 4.1 dB at 4 MHz, cable length 100 m 8.2 dB at 16 MHz, cable length 100 m 5.8 dB at 8 MHz, cable length 100 m 11.7 dB at 31.25 MHz, cable length 100 m 10.4 dB at 25 MHz, cable length 100 m 17 dB at 62.5 MHz, cable length 100 m 6.5 dB at 10 MHz, cable length 100 m 9.3 dB at 20 MHz, cable length 100 m 2 dB at 1 MHz, cable length 100 m
Attenuation to crosstalk ratio (ACR)	37 dB at 20 MHz 13 dB at 100 MHz 21 dB at 62.5 MHz 65 dB at 0.772 MHz 46 dB at 8 MHz 34 dB at 25 MHz 31 dB at 31.25 MHz 44 dB at 10 MHz 52 dB at 4 MHz 39 dB at 16 MHz 63 dB at 1 MHz
Power Sum Near End Crosstalk (PS NEXT)	35.4 dB at 62.5 MHz 32.3 dB at 100 MHz 42.8 dB at 20 MHz 62.3 dB at 1 MHz 53.3 dB at 4 MHz 64 dB at 0.772 MHz 39.9 dB at 31.25 MHz 47.3 dB at 10 MHz 44.3 dB at 16 MHz 48.8 dB at 8 MHz 41.3 dB at 25 MHz
Near end crosstalk	38.4 dB at 62.5 MHz 42.9 dB at 31.25 MHz 67 dB at 0.772 MHz 35.3 dB at 100 MHz 51.8 dB at 8 MHz 45.8 dB at 20 MHz 47.3 dB at 16 MHz 44.3 dB at 25 MHz 50.3 dB at 10 MHz 56.3 dB at 4 MHz 65.3 dB at 1 MHz
Input impedance	100 Ohm (+/- 6) at 1…100 MHz
Loop resistance	<= 73.2 Ohm/km
Capacitance unbalance	330 pF / 100 m
Resistance unbalance	5 %
Colour tint	Blue
Wire insulation material	ON
Material conductor	Solid bare copper
AWG gauge	AWG 23
Temperature resistance	75 °C
Product certifications	UL
Cable outer diameter	4.9 mm
Cable length	305 m

Environment

Standards

UL 444
ISO / IEC 11801
ANSI / TIA / EIA-568-B

Offer Sustainability

Sustainable offer status	Green Premium product
Product environmental profile	Available
Product end-of-life instructions	Need no specific recycling operations
