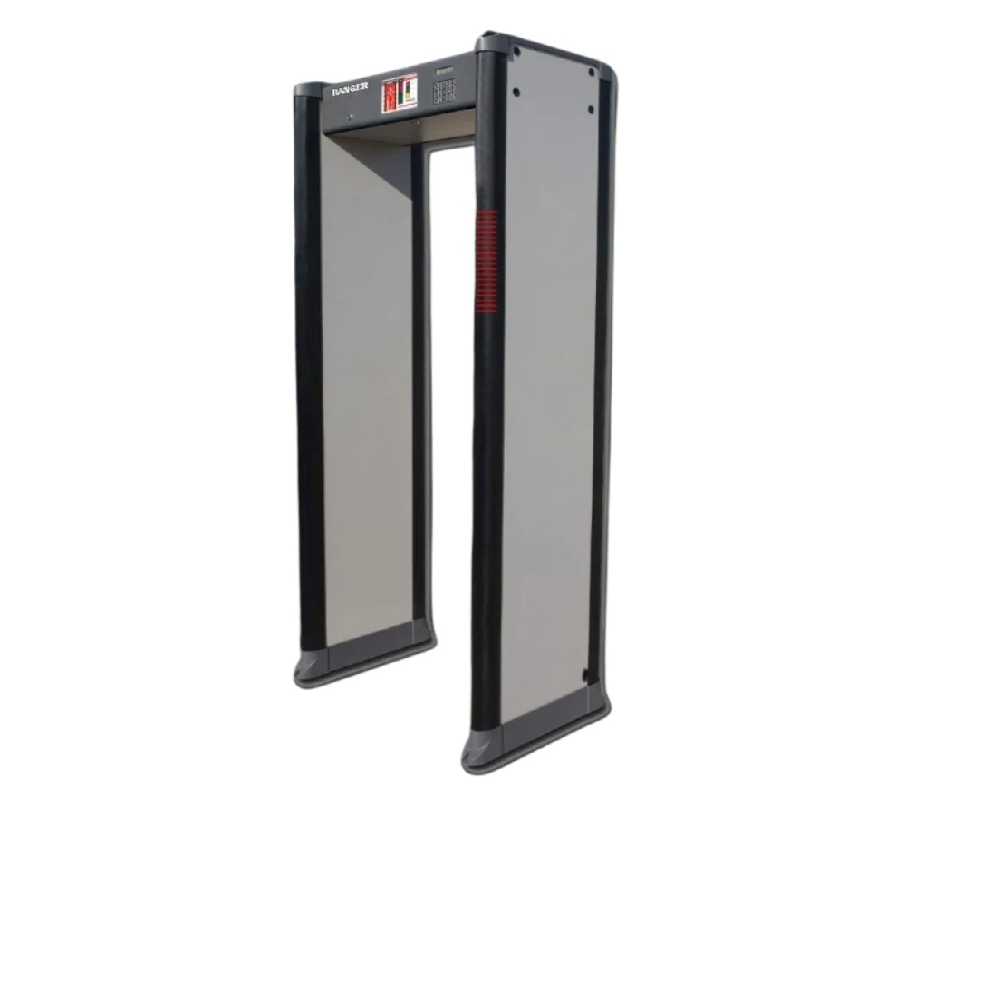

Ranger Security IntelliScan Walk Through Metal Detector 33 Zone | RSD-IntelliScan-33-Zone

Ranger Security IntelliScan Walk Through Metal Detector 33 Zone | RSD-IntelliScan-33-Zone

Product Overview

The IntelliScan 33-Zone system uses multi-zone detection technology to identify and locate metallic objects on the body with high accuracy. It can distinguish between harmless and potentially dangerous items, reducing false alarms and improving traffic flow.

Its advanced design makes it suitable for high-volume security checkpoints where efficiency and precision are equally important.

Product Description

The Ranger IntelliScan 33 Zone Walk Through Metal Detector is a high-end walk-through security metal detector designed for advanced threat detection and access control screening. It is one of the most powerful models in the Ranger IntelliScan series, offering 33 independent detection zones for precise identification of concealed metallic objects on a person.

It is widely used in airports, government buildings, prisons, embassies, stadiums, schools, and high-security facilities, where accurate and fast screening is critical.

The Intelliscan33 zone is Ranger Security’s top-of-the-line walk-through metal Detector. The Ranger Intelliscan revolutionized security metal detector screening and continues to set the standard for advanced technology metal detectors.

Key Features

1. 33 Independent Detection Zones
Provides precise location mapping of detected metal on the body (head, torso, legs, etc.), improving threat identification.

2. Advanced Threat Discrimination
Can differentiate between:

• Weapons (knives, guns, shanks)
• Harmless metal objects (belts, coins, jewelry)

3. High-Performance Signal Processing
Uses digital signal processing technology to reduce false alarms and improve detection accuracy.

4. Adjustable Sensitivity Levels
Each zone can be independently calibrated based on security requirements.

5. Multi-Program Security Modes
Includes:

• Factory presets
• User-defined configurations
• Custom security levels

6. Infrared Traffic Control System
Built-in IR sensors help:

• Count passengers
• Manage entry/exit flow
• Reduce congestion

7. Visual & Audio Alarm System
LED display shows exact detection zone, supported by sound alerts for immediate response.

8. Interference Rejection Technology
Minimizes false alarms caused by environmental or electronic interference.

9. Safe for All Users
Harmless to:

• Pregnant women
• Individuals with pacemakers

10. Networking & Integration Capability
Can integrate with central security systems, CCTV, and access control networks (via optional RangerNet system).

Features

• 33 Independent Detection Zones
• Advanced Discrimination Capabilities
• Security Level Program Factory Presets
• User Programmable Processor
• Digital Signal Processing and Diagnostics
• Interference Rejection Circuitry
• Adjustable Zone Sensitivity
• Continuous Wave Technology
• Harmless to Pacemakers and Pregnant Women

Technical Specifications (Typical)

• Model: RSD-IntelliScan-33-Zone
• Type: Walk Through Metal Detector
• Detection Zones: 33 independent zones
• Technology: Continuous wave + digital signal processing
• Power Supply: 115–230 VAC, 50–60 Hz
• Power Consumption: Low energy operation
• Dimensions: Approx. 2200 × 900 × 500 mm
• Weight: ~65–80 kg (varies by configuration)
• Alarm System: Audio + LED zone display
• Sensitivity: Adjustable per zone
• Installation: Floor-mounted

Specifications

• Dimensions: Header: 34″ x 11″ x 25″ (85 x 27.5 x 62.5 cm)
• Side Panels: 91″ x 9″ x 27″ (227.5 x 22.5 x 67.5 cm)
• Weight: Header: 37lbs (15.45 kg)
• Side Panels: 144 lbs (65.45 kg)
• Power Requirements: 115 – 230 VAC, 50 -60 Hz

Applications

• Airports and seaports
• Government and embassy buildings
• Prisons and correctional facilities
• Military and defense zones
• Schools, colleges, and universities
• Stadiums and public events
• Corporate headquarters
• Banks and financial institutions
• Industrial and factory security

Frequently Asked Questions (FAQs)

1. What is the Ranger IntelliScan 33 Zone used for?
It is used for detecting concealed metal objects on individuals during security screening.

2. How many detection zones does it have?
It has 33 independent detection zones for precise detection.

3. Can it detect weapons accurately?
Yes, it is designed to detect knives, guns, shanks, and other metallic threats.

4. Does it reduce false alarms?
Yes, it uses advanced discrimination and signal processing technology.

5. Is it safe for humans?
Yes, it is safe for pregnant women and people with pacemakers.

6. Can it be integrated with CCTV or access control?
Yes, it supports network integration via optional systems like RangerNet.

7. Is it suitable for high-traffic areas?
Yes, it is designed for airports, stadiums, and large public venues.

8. Does it show the exact location of metal?
Yes, the LED display indicates the exact body zone where metal is detected.

9. Can sensitivity be adjusted?
Yes, each zone can be individually programmed and adjusted.

10. Is installation complicated?
No, it is floor-mounted and designed for straightforward installation.

Why Choose IntelliScan 33 Zone?

The IntelliScan 33-Zone is designed for maximum security with minimal operational delays. Its ability to pinpoint exact metal locations, reduce false alarms, and handle high traffic flow makes it one of the most advanced walk-through metal detectors available.

Manufacturer’s Warranty

• 1 year warranty
