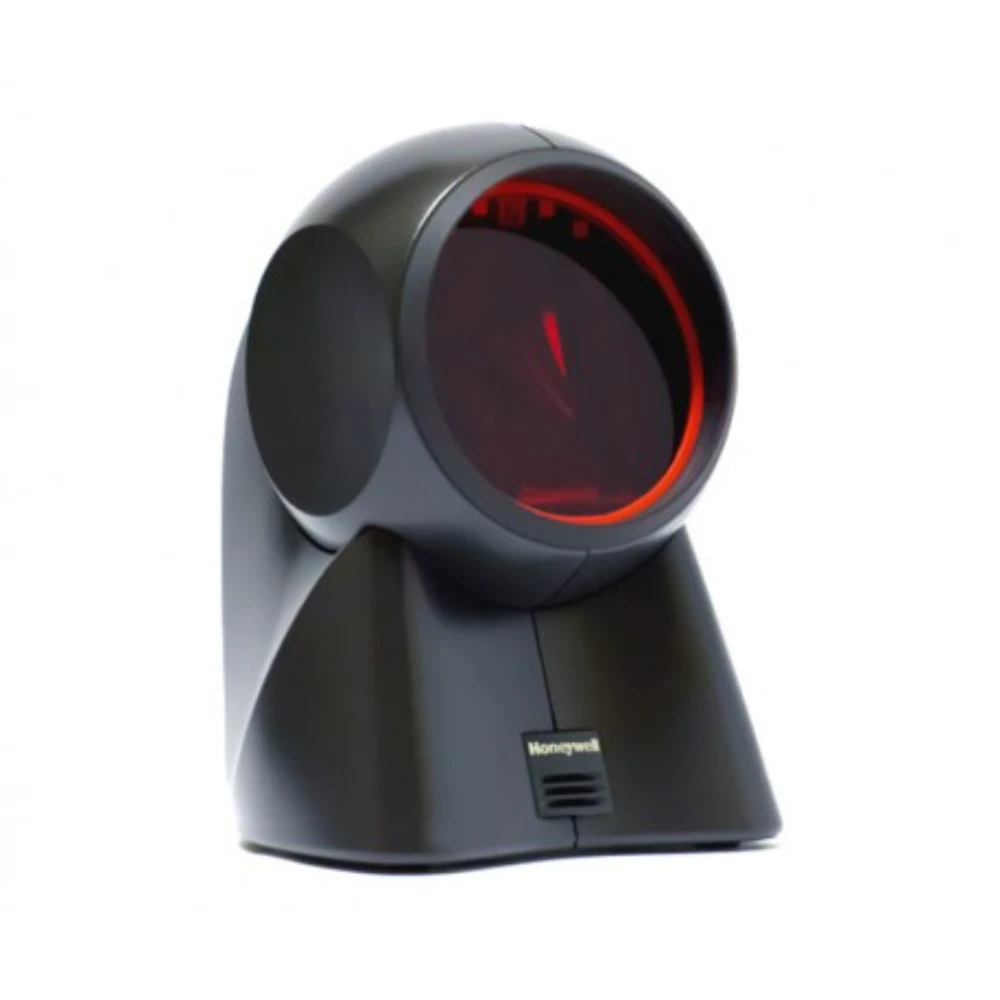

QR Reader Honeywell 7190G The Orbit
Honeywell 7190G, The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners .but adds an area imager for seamless scanning of digital 1D, 2D, and PDF codes in a single, convenient device.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From Rs. 300
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From Rs. 300
-
Warranty 1 year
-
Free 30-Day returns
Description
QR Reader Honeywell 7190G The Orbit
MECHANICAL
Dimensions (L x W x H)
108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
Weight
410 g (14.5 oz)
ENVIRONMENTAL
Storage Temperature
-40°C to 60°C (-40°F to 140°F)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Humidity
5% to 95% relative humidity, non-condensing
Drop
Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing
Sealed to resist airborne particulate contaminants
Light Levels
Laser: 4842 Lux
Imager: 100000 Lux
ELECTRICAL
Input Voltage
5 VDC ±0.25 V
Operating Power
472 mA @ 5 V
Standby Power
255 mA @ 5 V
Host System Interfaces
USB, RS-232, Keyboard Wedge, IBM468xx (RS485)
EAS Features
EAS with interlock and integrated RF EAS antenna (EAS model)
SCAN PERFORMANCE
Scan Pattern
Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480-pixel array)
Scan Speed
Omnidirectional: 1120 scan lines per second
FPS: 30
Scan Angle (Imager)
Horizontal: 40.0°
Vertical: 30.5°
Symbol Contrast
35% minimum reflectance difference
Pitch, Skew
Laser: 60°, 60°
Imager: 60°, 70°
Decode Capability
Laser: Reads standard 1D, GS1 DataBar symbologies
Imager: Reads standard 1D, PDF, and 2D symbologies
Warranty
Three-year factory warranty
“
