Matica EDIsecure XID8600 Dual-Sided Retransfer ID Card Printer

Key strengths

600 x 600dpi dual-sided printing
200 card input feeder / output hopper
Robust and durable print engine
Consistent print quality on multiple card surfaces/materials
High capacity consumables (1000 images)
Security printing including microtext and UV
Up to 125 cards per hour
USB and Ethernet

Description
Reviews (0)

Description

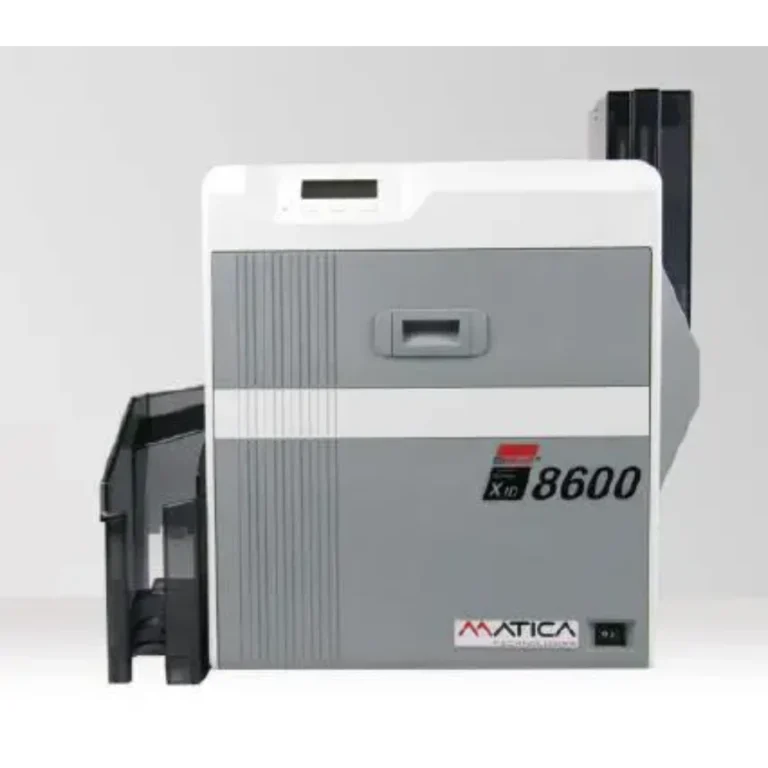

Matica EDIsecure XID8600 PVC Card Printer:

The Matica XID8600 is the high-end model of the proven 8000 series line of Matica’s XID retransfer printers. The XID 8600 features a ultra high resolution of 600dpi, perfect for the increased security printing demands in ID card applications, such as national ID programs and drivers license programs.

The standard model XID 8600 comes with a factory built-in flipper module for dual-sided printing, making it possible for extremely high resolution printing on both sides of the card.

On-demand modules are available for inline lamination on the front and/or backside of the card for additional security and extended surface protection against abrasion or other physical impacts.

Standard Features:

Dye-sublimation retransfer
Single- or double-sided over-the-edge retransfer printing
Prints up to 120 cards per hour (single-sided)
600 dpi print resolution
200 card input hopper capacity
100 card output hopper capacity
Lifetime printhead warranty

Card Sizes Accepted	CR80 – (CR80 is the size of a standard credit card)
Card Thickness Accepted	10-40 mil – hopper adjustment required
Printer Color Capability	Color & monochrome printing
Print Resolution DPI	600 DPI
Printer Includes	USB cable Power cable Microsoft Windows drivers User manual Empty ribbon cartridge – ribbon not included Empty retransfer film cartridge – film not included
Input Hopper Capacity	200
Interface	USB & Ethernet
OS Compatibility	Microsoft® Windows® 2000, XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit)
Printer Options	Encoding – Magnetic stripe – ISO 7811 or JIS2 Contact/contactless chip encoding – MIFARE, DESFire, HID iClass, Legic, etc. ILM-LS Lamination Module Extended warranties through ID Wholesaler
Output Hopper Capacity	100
Printing Speeds (sec/card)	30 seconds (full-color (YMCK) single-sided card)
Printing Capability	Single-sided & dual-sided printing
Warranty	3 years on printer (all parts & labor) and lifetime printhead coverage (with the use of EDIsecure materials)
Weight & Dimensions	30.6 lbs (21.9 kg), 13.5” x 14.7” x 12.6” (342.9mm x 373.4mm x 320.1mm)
