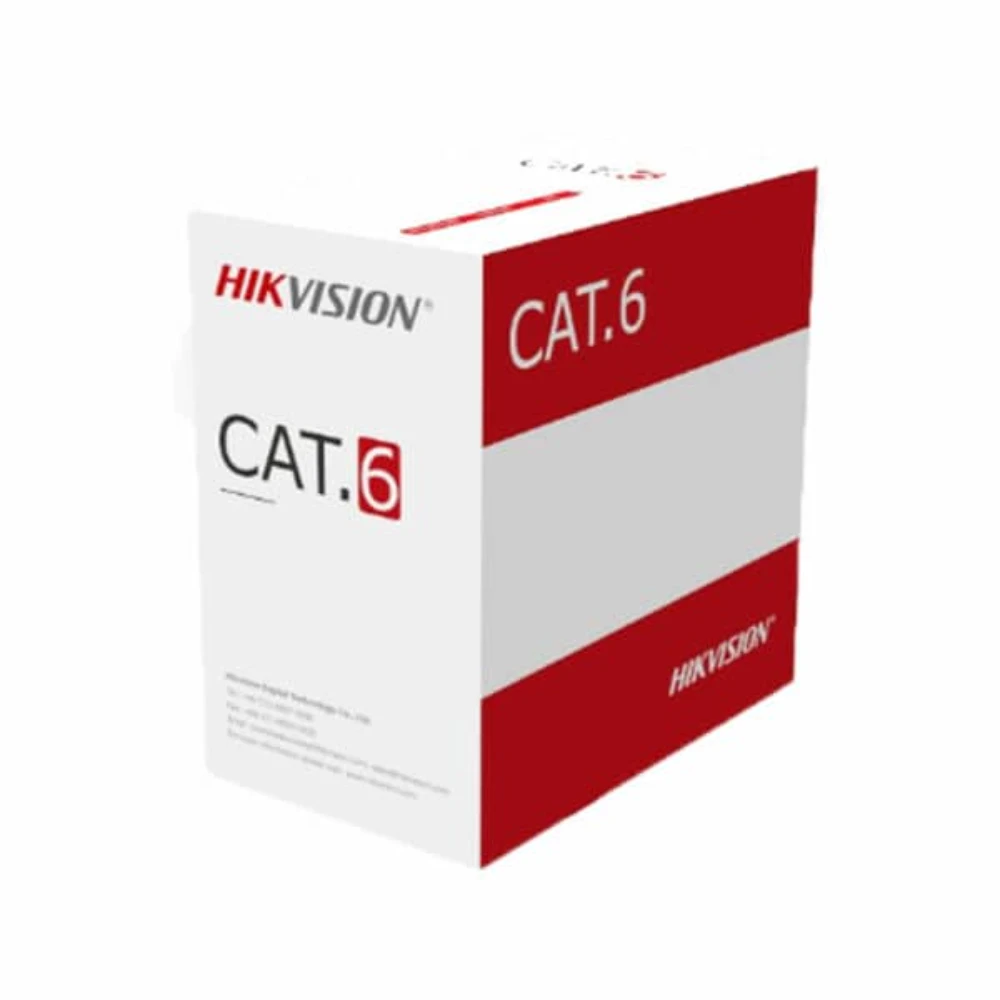

Hikvision DS-1LN6U-SC0-Cat-6 UTP Cable

• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801
• Compliant with RoHS 2.0
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance

Specification

General

• Rip-Cord: Yes
• Category: Cat.6
• Sheath Printing: HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
• Reference Standard: ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
• Fire Resistance: No
• Separator: Yes

Conductor

• Material: Solid-Bare Copper (99.95%)
• Diameter: 0.55 ± 0.005 mm, 23 AWG

Insulation

• Material: HDPE
• Diameter: 0.98 ± 0.05 mm

Sheath Physical Properties

• Before Aging

  Tensile strength ≥ 13.5 Mpa

  Elongation ≥ 150%

• Aging Period: 100°C × 24h × 10d
• After Aging

  Tensile strength ≥ 12.5 Mpa

  Elongation ≥ 125%

• Cold Bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

Electrical Characteristics(20℃)

• 1.0-250.0 MHz Impedance

  100 ± 15 Ω @ ≤ 100 MHz

  100 ± 25 Ω @100-250 MHz

• 1.0-250.0 Mhz Delay Skew: ≤ 45 ns/100 m
• DC Resistance: ≤ 9.38 Ω/100 m
• DC Conductor Resistance Unbalance: ≤ 5.0%
• Package Dimension: 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″) 12.3 ± 0.5kg
• Cable Length: (305 ± 1.5) m
• Ambient Temperature: -20°C to 75°C (-4°F to 167°F)
• Operating Voltage: 60 V

Sheath

• Thickness: 0.50 ± 0.10 mm
• Material: PVC
• Color: Orange
• Diameter: 6.00 ± 0.30 mm
