Description

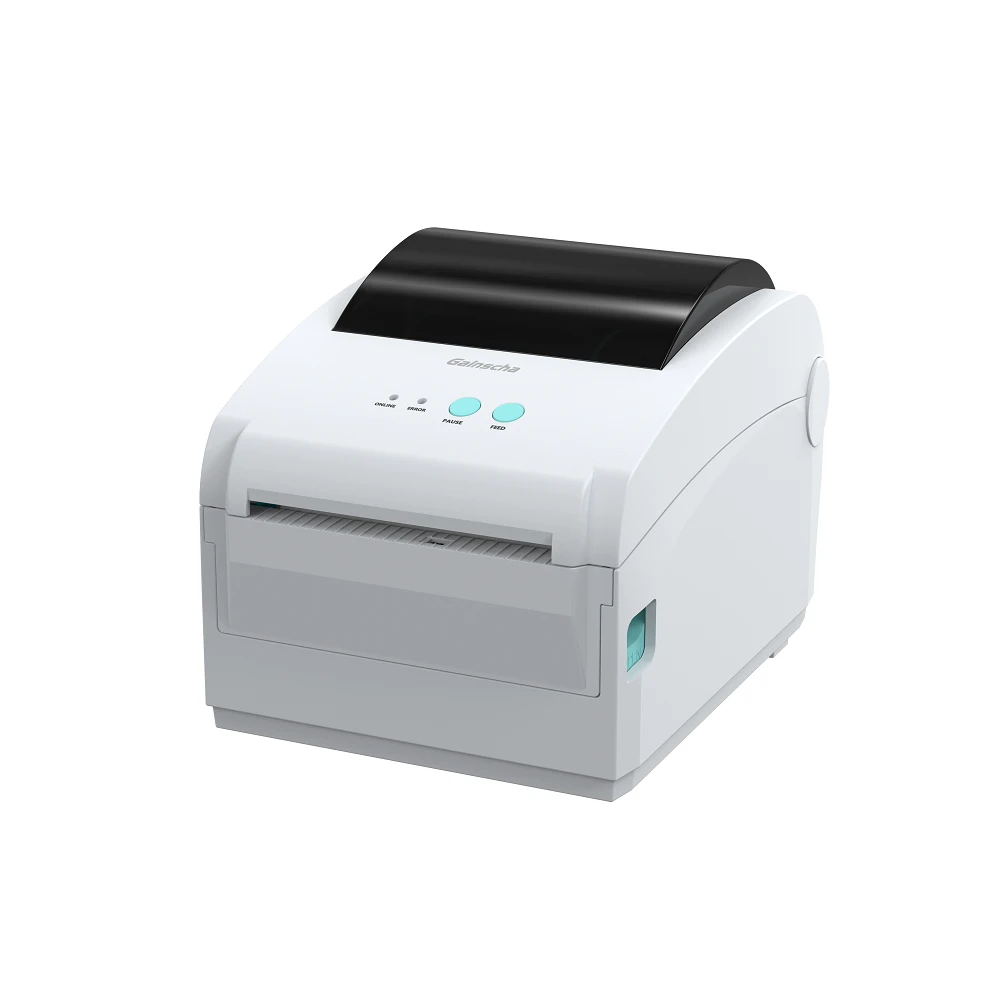

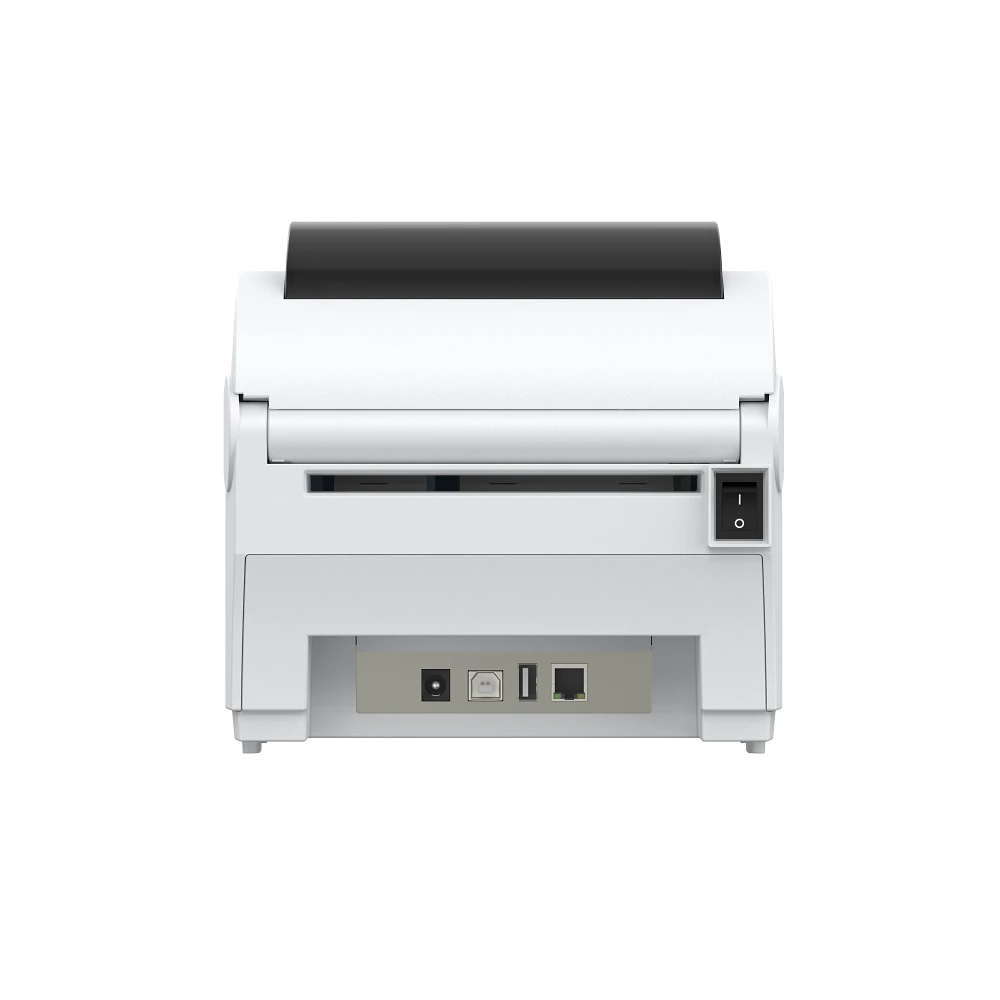

Gainscha GS-2408 Label Printer
A Gainscha label printer is a specialized device used in retail environments, specifically in supermarkets and grocery stores, to print price labels, shelf tags, and product information labels. These printers play a crucial role in efficiently managing inventory, pricing, and providing essential product details to customers.
| Level | Standard |
| Resolution | 8 dots/mm (203DPI) |
| Printing Method | Direct Thermal |
| Max. print speed | 203 mm (8″)/second |
| Max. print width | 104 mm (4.1″) |
| Max. print length | 2,794 mm (110″) |
| CPU | 400 MHz, 32 bits, ARM9 |
| Memory RAM | 64 MB SDRAM |
| Memory ROM | 32 MB Flash / 128 MB Flash(factory option) |
| Interface | • USB 2.0 High Speed 480Mbps • USB Host 2.0, for scanner or PC keyboard • Internal Ethernet 10/100Mbps • Internal Bluetooth 4.0 (factory option) • Internal WiFi (factory option) |
| Real Time Clock | N/A |
| Buzzer | N/A |
| Dealer options | N/A |
| Sensors | Head open sensor Black mark reflective sensor (moveable) Gap transmissive sensor (moveable) |
| Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz. Output: DC 24V, 2.5A, 60W |
| User Interface | • 1 power switch • 2 buttons (Feed & Pause) • 2 LEDs (Online，Error) |
| Internal fonts | • 8 alpha-numeric bitmap fonts • True type font engine (need download scalable font file) |
| 1D Barcode | Code 11，Code 39，Code 93，Code 128 (subsets A，B，C)，UPC-A，UPC-E，UCC-128，Codabar，EAN/JAN-8，EAN/JAN-13，Interleaved 2 of 5，ITF14，MSI Pleassy，PostCode，Telepen |
| 2D Barcode | QR Code, Micro QR Code, PDF417, Micro PDF417, Grid Matrix, MaxiCode, Aztec Code, Data Matrix |
| Rotation | Font and barcode support 0, 90, 180, 270 degree |
| Printer language | Compatible to TSPL, EPL, ZPL, ZPL II, DPL |
| Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
| Media width | 25 ~ 119 mm(0.9″~4.6″) |
| Media thickness | 0.055 ~ 0.19 mm (2.16 ~ 7.48mil) |
| Media core diameter | 25.4 mm (1″) |
| Label roll capacity | 127 mm (5″) OD |
| Label length | 5 ~ 2,794 mm (0.2″ ~ 110″) |
| Physical dimension | 180mm(W) x 174.7mm(H) x 238mm(L) |
| Net Weight | 1.85kg |
| Enclosure | ABS plastic |
| Ribbon | N/A |
| Ribbon width | N/A |
| Environment condition | Operation: 5~40°C，25~85% non-condensing Storage: -40~60°C, 10~90% non-condensing |
| Environment concern | Comply with RoHS, REACH, WEEE |
| Accessories | •Driver and software CD •Quick start guide •USB cable •Power cord •External universal switching power supply |
