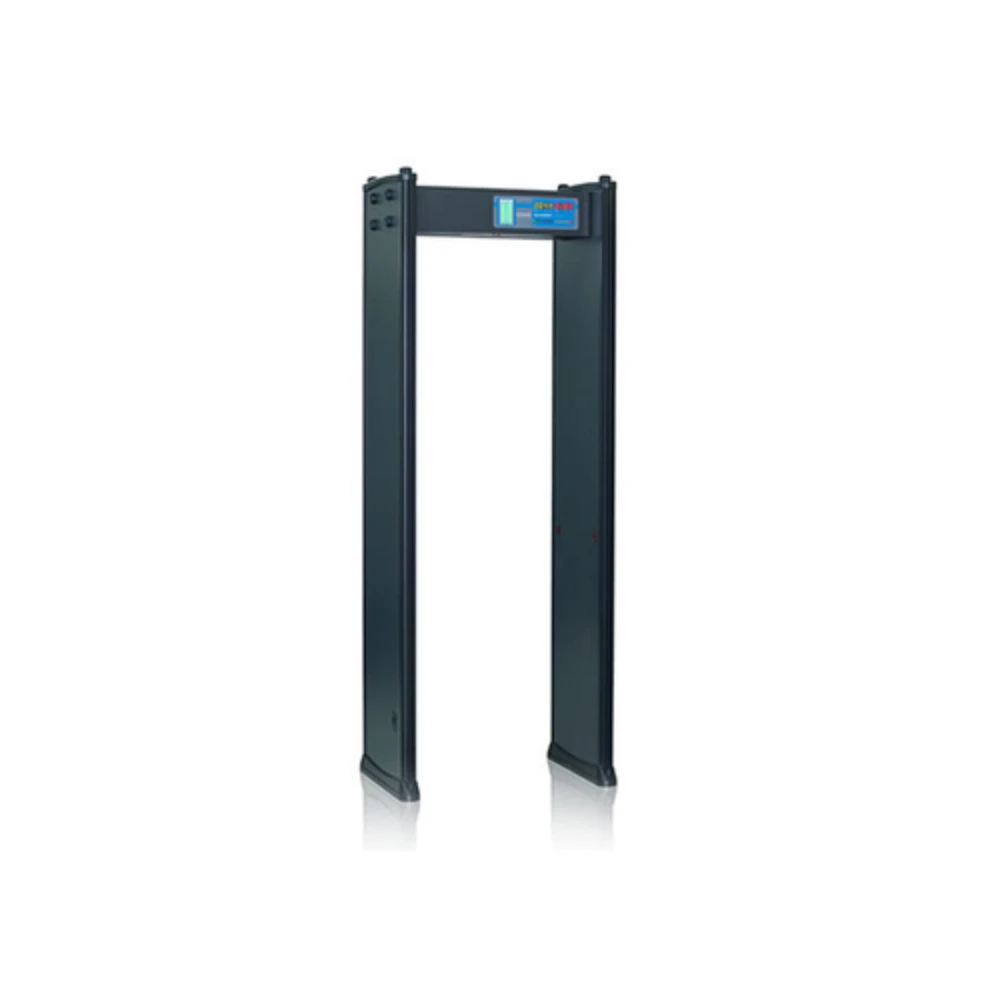

Exhibition Hall Security Door 24 Zones Metal Detector Gate

Exhibition Hall Security Door 24 Zones Metal Detector Gate

Product Overview

This 24-zone security gate uses advanced multi-zone electromagnetic detection technology to identify concealed metallic objects on individuals passing through the gate. When metal is detected, the system immediately triggers an alarm and indicates the exact body zone location, allowing security staff to respond quickly and efficiently.

It is designed for rapid screening environments, capable of handling high visitor traffic without delays while maintaining strong detection accuracy.

Product Description

The Exhibition Hall Security Door 24 Zone Metal Detector Gate is a professional walk-through security screening system designed for high-traffic public environments such as exhibitions, trade fairs, conference centers, and large events. With 24 independent detection zones, it provides accurate location-based metal detection for enhanced security control while maintaining smooth visitor flow.

It is commonly used in exhibition halls, stadiums, museums, hotels, government events, and corporate functions, where fast and reliable screening of large crowds is required.

Quick detail

• Application situation: outdoor use
• Appearance: European and American design style
• Easy to Install, Simple to Operate
• Sensitivity of each detection zone:255level
• High-speed detection: more than 60 people pass and detect in 1 minute
• Touch screen: 7-inch HDMI LCD touch screen,iPad interface style, easy to operate and understand.
• IP Grade: IP65 superior waterproof performance(optional)

Key Features

1. 24 Independent Detection Zones
Provides precise body mapping for detecting metal objects across different areas (head, torso, arms, legs).

2. High Sensitivity Detection System
Capable of detecting small to large metallic objects, including weapons and prohibited items.

3. Multi-Zone Alarm Indication
LED indicators show the exact zone of detection, helping security staff identify threats instantly.

4. Fast Throughput for Large Crowds
Designed for exhibition and event environments, allowing high passenger flow with minimal waiting time.

5. Adjustable Sensitivity Levels
Each zone can be individually configured for different security requirements.

6. Infrared Sensor Entry System
Automatically detects people entering the gate and ensures accurate scanning activation.

7. Audio & Visual Alarm System
Triggers sound alerts and LED light indicators for immediate attention.

8. Anti-Interference Technology
Stable performance even in environments with electrical or structural interference.

9. Self-Diagnostic Function
Automatically checks system status on startup for reliable operation.

10. Easy Installation & Portable Design
Modular structure allows quick setup and relocation for temporary events.

Features

• Adjustable sensitivity of each detection zone
• Operating frequency can be adjusted manually or automatically
• Move after folded or installation(two move methods to choose)
• Detection technology: Even detection technology, no blind spot
• Internet technology: Remote upgrade system and remote control system
• Working band: 100 working bands
• Sensitivity of each detection zone:255level
• Statistics: Record the pass and alarm numbers
• Tamper-Proof: operate program is protected by a password
• Mobile connection technology: realize mobile APP remote control
• Query function: The system has a real-time information query function
• Intelligent Standby: The system has intelligent standby operation alerts

Technical Specifications (Typical)

• Detection Zones: 24
• Technology: Multi-zone electromagnetic field detection
• Power Supply: AC 100–240V
• Operating Temperature: -20°C to +50°C
• Alarm System: Audio + LED zone display
• Throughput: High-speed (suitable for mass crowd entry)
• Structure: Archway / door frame design
• Installation Type: Floor-mounted, portable setup
• Sensitivity: Adjustable per zone (up to high precision levels depending on model)

Specification

Detection objects: knives,guns,coins             External Dimension:2250x850x500mm

Passage Dimension: 2051x710x500mm       Fold Dimension:889x606x484mm

Packing Dimension: 1000x720x590mm        Humidity: 99%, non-condensing

Working environment: -20 ?~85 ?              Weight: NW 48KG, GW 53KG

Input : AC 110V~240V/50Hz~60Hz               Output : DC 12V/5A 12W

Power supply: the whole system is equipped with polymer battery,life time 8,16,24,48,72

hours (optional).

Applications

• Exhibition centers and trade fairs
• Concerts and stadium events
• Museums and cultural centers
• Hotels and conference halls
• Government and corporate events
• Public festivals and gatherings
• Airports and temporary checkpoints

Frequently Asked Questions (FAQs)

1. What is the 24-zone security gate used for?
It is used to detect metal objects on people entering exhibition halls and events.

2. Why is it suitable for exhibitions?
Because it supports high-speed scanning of large crowds with minimal delay.

3. How many detection zones does it have?
It has 24 independent detection zones.

4. Can it detect small metal objects?
Yes, it can detect small and large metallic items depending on sensitivity settings.

5. Does it show the exact location of metal?
Yes, it shows zone-based LED indication for precise detection.

6. Is it portable?
Yes, it is designed for easy installation and relocation, ideal for events.

7. Is it safe for humans?
Yes, it uses low-frequency electromagnetic technology and is completely safe.

8. Can it handle large crowds?
Yes, it is designed for high throughput environments like exhibitions and stadiums.

9. Does it reduce false alarms?
Yes, it includes anti-interference and advanced filtering technology.

10. Where is it commonly used?
In exhibition halls, trade shows, concerts, hotels, and public events.

Why Choose 24 Zone Exhibition Hall Security Gate?

The 24-zone model is ideal for event-based security screening where speed, accuracy, and crowd management are critical. It offers:

• Better detection accuracy than 6/12-zone systems
• Fast processing for large visitor flow
• Easy setup for temporary or permanent installations
• Clear zone-based threat identification
