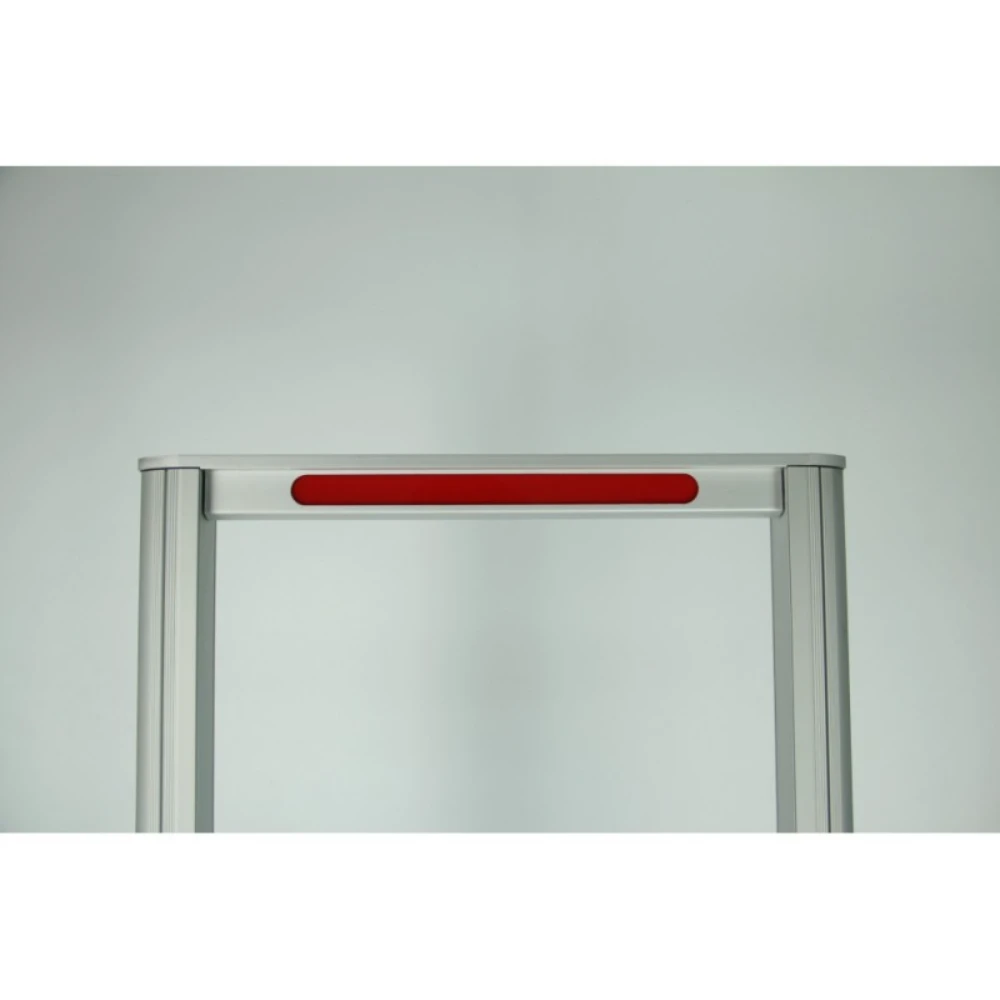

EAS Antenna Cross Point PRIMUS RF30

EAS Antenna Cross Point RF30

The Cross Point PRIMUS series is the logical choice for

those retailers requiring a compact designed and reliable

performing Electronic Article Surveillance system.

It is powered by Cross Point’s proven digital XR-23G electronics

which automatically adjusts itself to any type of environment for

optimal detection quality under all circumstances.

The Cross Point PRIMUS series is available in two different

models: a LUNA with optical alarm indicators and a NUDA

without these optical alarm indicators.

A step blocker prevents children from climbing into the antenna.

Optional panels can be printed with the store’s logo to enhance

the physical appearance.

PRIMUS RF Antenna Line

Features PRIMUS Nuda PRIMUS Luna

Anodized aluminum frame  

Optimal detection under all circumstances  

Adjustable sensitivity  

Adjustable power  

Synchronizing possibilities with other systems 1  

Red LED Alarm lights in top – 

Printable transparent panels  

Removable foot – –

Detection distance 3

Cross Point OSTRA D55 hard tag (Ø 55 mm) up to 1.90 m up to 1.90 m

Cross Point OSTRA D50 hard tag (Ø 50 mm) up to 1.85 m up to 1.85 m

Cross Point OSTRA D40 hard tag (Ø 40 mm) up to 1.65 m up to 1.65 m

4 x 4 cm paper label up to 1.45 m up to 1.45 m

Specifications

Antenna width (mm) 310 310

Antenna height (mm) 1.524 1.524

Antenna depth (base / profile mm) 45 / 37 45 / 37

Mains (VAC) 100 – 230 100 – 230

Board power (VDC) 24 24

Relay (NO, NC, COM) 1 1
