DS-K1T804AMF – Pro Series Fingerprint Access Control Terminal
Short Description
- 2.4-inch LCD screen for displaying time, date, and authentication results
- Multiple authentication methods, including fingerprint, Mifare card, and PIN code
- Max. 3,000 users, 3,000 fingerprints, 3,000 cards and 100,000 event records
- Supports fingerprint authentication with 1:1 and 1:N comparison modes
- Fingerprint recognition duration < 1 s
- Built-in Mifare 1 card reader with card reading distance of 0–4.5 cm
- Supports ISAPI and ISUP 5.0 protocols
- Supports TCP/IP and Wi-Fi communication
- Supports RS-485 and Wiegand interfaces
- Supports secure door control unit and fingerprint card reader via RS-485
- Supports alarm input and output, tamper detection, and door contact
- Supports USB flash drive for exporting card data and attendance reports
- Supports local time and attendance management with shift and holiday scheduling
- Supports automatic attendance report generation
- Supports Hik-Connect mobile client
- Supports standalone operation for locally adding person, card, and fingerprint information
- Supports data retention after power-off and automatic reboot through Watchdog
- Supports access control and time attendance functions
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

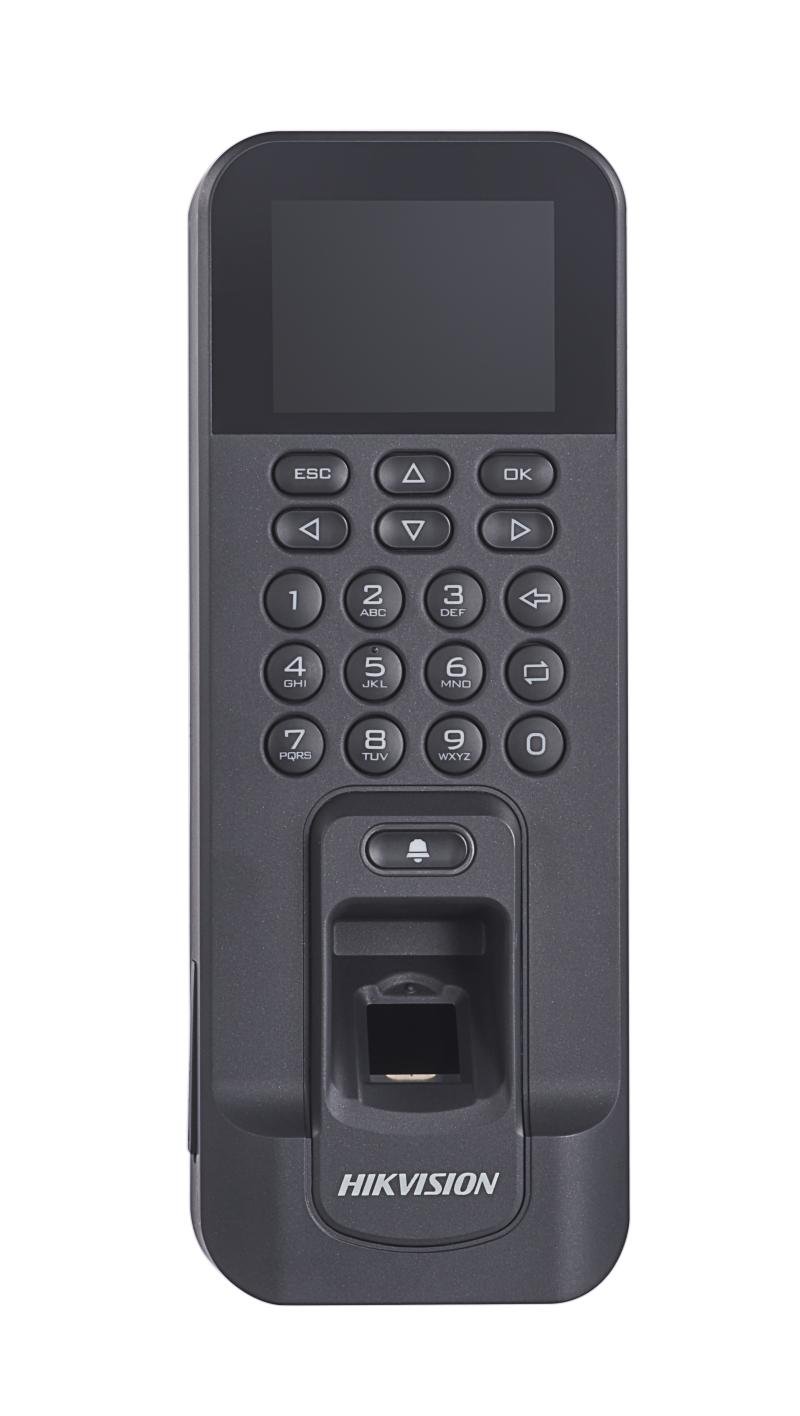

DS-K1T804AMF – Pro Series Fingerprint Access Control Terminal
Product Description
The Hikvision DS-K1T804AMF is a Pro Series Fingerprint Access Control Terminal designed for integrated access control and time attendance management. It combines fingerprint authentication, card access, and PIN authentication in a compact standalone terminal, making it suitable for offices, commercial buildings, factories, institutions, and other controlled environments.
The terminal features a 2.4-inch LCD screen with a 320 × 240 resolution for displaying the date, time, authentication results, and device information. It uses an optical fingerprint module with 1:1 and 1:N fingerprint comparison, providing fingerprint recognition in less than one second.
The DS-K1T804AMF can store up to 3,000 fingerprints, 3,000 Mifare 1 cards, and 100,000 events, providing sufficient capacity for employee access and attendance management in small and medium-sized organizations.
Key Features
- Pro Series Fingerprint Access Control Terminal
- 2.4-inch LCD-TFT Screen
- 320 × 240 Resolution
- Optical Fingerprint Module
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 100,000 Event Capacity
- Fingerprint Recognition <1 s
- 1:1 & 1:N Fingerprint Comparison
- Mifare 1 Card Reader
- PIN Authentication
- TCP/IP & Wi-Fi
- RS-485 & Wiegand
- ISAPI & ISUP 5.0
- Secure Door Control Unit Support
- Alarm Input & Output
- Tamper Detection
- USB Data Export
- 32 Normal Shift Schedules
- 32 Man-Hour Shift Schedules
- 32 Attendance Holiday Schedules
- Automatic Attendance Reports
- Hik-Connect Support
- Standalone Operation
- Watchdog Automatic Reboot
- Surface Mounting
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T804AMF |
| Series | Pro Series |
| Product Type | Fingerprint Access Control Terminal |
| Operating System | Linux |
| Display | 2.4-inch LCD-TFT |
| Display Resolution | 320 × 240 |
| Audio Output | 1 Loudspeaker, 1 Buzzer |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Fingerprint Module | Optical |
| Fingerprint Comparison | 1:1 and 1:N |
| Fingerprint Recognition Duration | <1 s |
| Fingerprint FAR | ≤0.001% |
| Fingerprint FRR | ≤0.01% |
| Card Type | Mifare 1 Card |
| Card Reading Distance | 0–4.5 cm |
| Card Reading Duration | <1 s |
| Wired Network | TCP/IP, 10/100 Mbps, Self-Adaptive |
| Wi-Fi | Supported |
| Network Interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Protocols | ISAPI, ISUP 5.0 |
| Power Supply | 12 VDC / 1 A |
| Working Temperature | -10°C to +55°C |
| Working Humidity | 10%–90%, Non-Condensing |
| Dimensions | 205 × 76.5 × 37 mm |
| Installation | Surface Mounting |
| Color | Black Included; Gold, Silver & White Optional |
Specifications are based primarily on Hikvision’s official datasheet.
Applications
The DS-K1T804AMF is suitable for:
- Office Access Control
- Employee Time Attendance
- Corporate Buildings
- Factories & Warehouses
- Commercial Buildings
- Schools & Educational Institutions
- Financial Institutions
- Staff Entrance Management
- Restricted Areas
- Door Access Management
- Integrated Access & Attendance Systems
Advantages
- Fast Fingerprint Authentication
- 3,000 Fingerprints & 3,000 Cards
- 100,000 Event Storage
- Fingerprint + Card + PIN Authentication
- TCP/IP & Wi-Fi Connectivity
- RS-485 & Wiegand Interfaces
- Integrated Access Control & Attendance
- USB Attendance Data Export
- Multiple Alarm & Security Functions
- Standalone Operation
- Automatic Attendance Reports
- Hik-Connect Support
- Watchdog Automatic Reboot
- Compact Surface-Mount Design
