DS-K1T344MBFWX-E1 – Value Series Face Recognition Terminal
Short Description
- 4.5-inch LCD touch screen
- 2 MP wide-angle lens for face recognition
- Built-in M1 card reading module
- Multiple authentication methods, including face, card, PIN, and fingerprint
- Max. 3,000 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events
- Face recognition distance of 0.3 to 1.5 m
- Face recognition duration of <0.2 s/User
- Face recognition accuracy rate of ≥99%
- Fingerprint recognition duration of <1 s
- Supports WDR for improved image quality in challenging lighting conditions
- Supports face anti-spoofing
- Supports QR code recognition through the built-in camera
- Supports two-way audio with client software, indoor station, and main station
- Supports mobile Web and PC Web configuration
- Supports standard PoE power supply
- Supports 12 VDC power supply
- PoE can power both the terminal and compatible door lock
- Supports 12 VDC/1 A power output for door lock
- Supports TCP/IP network communication
- Supports ISAPI and ISUP 5.0 protocols
- Supports 10/100 Mbps self-adaptive Ethernet
- Supports RS-485 and Wiegand interfaces
- Supports lock control, exit button, door contact, and tamper detection
- Supports USB interface
- Supports built-in access control functions
- Supports local time and attendance functions
- Supports M1 card reading at 13.56 MHz
- Supports audio prompts
- Supports time synchronization
- IP65-rated protection
- Compact wall-mounted design
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Black Friday Blowout!
Description

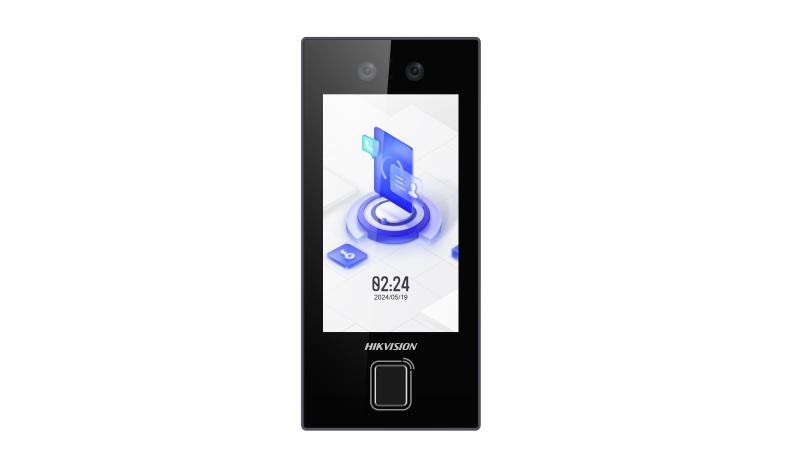

DS-K1T344MBFWX-E1 – Value Series Face Recognition Terminal
Product Description
The Hikvision DS-K1T344MBFWX-E1 is a Value Series Face Recognition Terminal designed for secure access control and time attendance applications. It combines face recognition, fingerprint, card, and PIN authentication in a compact terminal, making it suitable for offices, enterprises, commercial buildings, financial institutions, factories, schools, and other controlled environments.
The terminal features a 4.5-inch LCD touch screen and a 2 MP wide-angle lens, providing a convenient user interface and fast facial authentication. It supports face recognition at a distance of 0.3 to 1.5 m, with a recognition duration of less than 0.2 seconds per user and an accuracy rate of ≥99%.
The DS-K1T344MBFWX-E1 supports up to 3,000 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events, making it suitable for medium-sized access control and employee attendance deployments.
Key Features
- Value Series Face Recognition Terminal
- 4.5-inch LCD Touch Screen
- 2 MP Wide-Angle Lens
- Face, Fingerprint, M1 Card & PIN Authentication
- 3,000 Face Capacity
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 150,000 Event Capacity
- Face Recognition <0.2 s/User
- Face Recognition Accuracy ≥99%
- Face Recognition Distance 0.3–1.5 m
- Fingerprint Recognition <1 s
- WDR Support
- Face Anti-Spoofing
- QR Code Recognition
- Two-Way Audio
- 13.56 MHz M1 Card Reader
- Standard PoE
- 12 VDC Power Support
- Door Lock Power Support
- TCP/IP
- ISAPI & ISUP 5.0
- 10/100 Mbps Ethernet
- RS-485 & Wiegand
- Lock, Exit Button & Door Contact Interfaces
- Tamper Detection
- USB Interface
- Access Control Function
- Time Attendance Support
- Mobile Web & PC Web Configuration
- Audio Prompt
- Time Synchronization
- IP65 Protection
- Compact Wall-Mount Design
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T344MBFWX-E1 |
| Series | Value Series |
| Product Type | Face Recognition Terminal |
| Display | 4.5-inch LCD Touch Screen |
| Camera | 2 MP Wide-Angle Lens |
| Face Capacity | 3,000 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
| Authentication Methods | Face, Fingerprint, M1 Card, PIN |
| Card Type | M1 Card |
| Card Reading Frequency | 13.56 MHz |
| Face Recognition Duration | <0.2 s/User |
| Face Recognition Accuracy | ≥99% |
| Face Recognition Distance | 0.3–1.5 m |
| Fingerprint Recognition Duration | <1 s |
| WDR | Supported |
| Face Anti-Spoofing | Supported |
| QR Code Recognition | Supported |
| Network | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocols | TCP/IP, ISAPI, ISUP 5.0 |
| PoE | Supported |
| Network Interface | 1 × RJ-45 |
| RS-485 | Supported |
| Wiegand | Supported |
| Lock Output | Supported |
| Exit Button | Supported |
| Door Contact | Supported |
| Tamper Detection | Supported |
| USB | Supported |
| Power Supply | 12 VDC or PoE |
| Door Lock Power | Supported |
| Two-Way Audio | Supported |
| Time Attendance | Supported |
| Web Configuration | Mobile Web & PC Web |
| Audio Prompt | Supported |
| Time Synchronization | Supported |
| Installation | Wall Mounting |
| Protection Level | IP65 |
| Dimensions | 75.7 × 165.2 × 25 mm |
| Net Weight | 0.30 kg |
Specifications are based on Hikvision’s official DS-K1T344MBFWX-E1 documentation.
Applications
The DS-K1T344MBFWX-E1 is suitable for:
- Office Access Control
- Employee Time Attendance
- Corporate Buildings
- Factories & Warehouses
- Commercial Buildings
- Financial Institutions
- Retail Stores
- Schools & Educational Institutions
- Staff Entrance Management
- Restricted Areas
- Door Access Management
- Medium-Sized Businesses
- Integrated Access & Attendance Systems
Advantages
- Fast Face Recognition
- Face + Fingerprint + M1 Card + PIN Authentication
- 3,000 Face Capacity
- 3,000 Fingerprint & Card Capacity
- 2 MP Wide-Angle Camera
- Face Recognition Accuracy ≥99%
- WDR Support
- Face Anti-Spoofing
- QR Code Recognition
- Standard PoE Power
- Door Lock Power Support
- Two-Way Audio
- RS-485 & Wiegand Interfaces
- Multiple Door Control Interfaces
- Mobile & PC Web Configuration
- IP65 Protection
- Integrated Access Control & Time Attendance
- Compact Wall-Mount Design
