DS-K1T343MFWX – Value Series Face Recognition Terminal
Short Description
- 4.3-inch LCD capacitive touch screen with 480 × 272 resolution
- Multiple authentication methods, including face, fingerprint, and M1 card
- Max. 1,500 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events
- 2 MP wide-angle lens for fast and accurate face recognition
- Face recognition distance of 0.3–1.5 m
- Face recognition duration < 0.2 s/User with accuracy rate > 99%
- Supports fingerprint recognition with recognition duration < 1 s
- Built-in M1 card reading module with 13.56 MHz frequency
- Supports face anti-spoofing
- Supports ISAPI and ISUP 5.0 protocols
- Supports TCP/IP and Wi-Fi (2.4 GHz, 802.11b/g/n)
- Supports configuration via web client
- Supports two-way audio with client software, indoor station, and main station
- Supports RS-485 and Wiegand interfaces
- Supports lock control, exit button, door contact, and tamper detection
- Supports USB interface
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
- Supports face duplicate check to prevent multiple people from using the same face
- Supports attendance-only function
- Supports Hik-ProConnect and HikCentral Professional platforms
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description

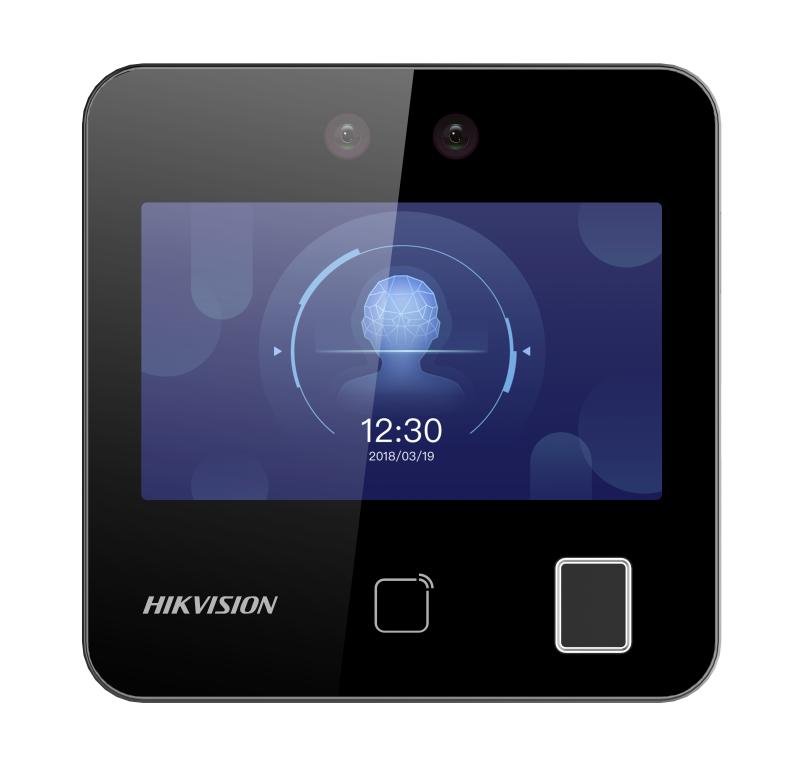

DS-K1T343MFWX – Value Series Face Recognition Terminal
Product Description
The Hikvision DS-K1T343MFWX is a Value Series Face Recognition Terminal designed for secure access control and employee time attendance applications. It combines face recognition, fingerprint authentication, and M1 card authentication in a compact terminal suitable for offices, enterprises, financial institutions, commercial buildings, and other controlled environments.
The terminal features a 4.3-inch capacitive LCD touch screen and a 2 MP wide-angle lens. Hikvision’s deep learning technology provides fast face recognition with a recognition duration of less than 0.2 seconds per user and an accuracy rate of more than 99%. The supported face recognition distance is 0.3 to 1.5 meters.
The DS-K1T343MFWX can store up to 1,500 faces, 3,000 fingerprints, 3,000 M1 cards, and 150,000 events, making it suitable for employee identification, access management, and attendance recording in small and medium-sized organizations.
Key Features
- Value Series Face Recognition Terminal
- 4.3-inch LCD Capacitive Touch Screen
- 480 × 272 Display Resolution
- 2 MP Wide-Angle Lens
- Face, Fingerprint & M1 Card Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 150,000 Event Capacity
- Face Recognition Distance: 0.3–1.5 m
- Face Recognition Duration: <0.2 s/User
- Face Recognition Accuracy: >99%
- Fingerprint Recognition <1 s
- Face Anti-Spoofing
- Face Duplicate Check
- TCP/IP & Wi-Fi
- ISAPI & ISUP 5.0
- Two-Way Audio
- RS-485 & Wiegand
- Lock, Exit Button & Door Contact Interfaces
- USB Interface
- Battery Power Support
- Local Time & Attendance
- Attendance-Only Function
- Hik-ProConnect & HikCentral Professional Support
- Wall or Base Mounting
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T343MFWX |
| Series | Value Series |
| Product Type | Face Recognition Terminal |
| Operating System | Linux |
| Display | 4.3-inch LCD |
| Operation Method | Capacitive Touch Screen |
| Display Resolution | 480 × 272 |
| Lens | 2 MP Wide-Angle |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
| Face Recognition Distance | 0.3–1.5 m |
| Face Recognition Duration | <0.2 s/User |
| Face Recognition Accuracy | >99% |
| Fingerprint Recognition Duration | <1 s |
| Card Type | M1 Card |
| Card Reading Frequency | 13.56 MHz |
| Wired Network | 10/100 Mbps Self-Adaptive |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Network Interface | 1 × RJ-45 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 |
| Protocols | ISAPI, ISUP 5.0 |
| Audio | Noise Suppression & Echo Cancellation |
| Face Anti-Spoofing | Supported |
| Power Supply | 12 VDC, 1 A |
| Battery Power | Supported by Battery in Bracket |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 0–90%, Non-Condensing |
| Dimensions | 118.4 × 118.4 × 21.8 mm |
| Installation | Wall Mounting / Base Mounting |
| Application Environment | Indoor |
| Platforms | Hik-ProConnect, HikCentral Professional |
Specifications are based on Hikvision’s official product information and datasheet.
Applications
The DS-K1T343MFWX is suitable for:
- Office Access Control
- Employee Time Attendance
- Corporate Buildings
- Factories & Warehouses
- Commercial Buildings
- Schools & Educational Institutions
- Financial Institutions
- Staff Entrance Management
- Restricted Areas
- Door Access Management
- Attendance-Only Applications
- Integrated Access & Attendance Systems
Advantages
- Fast and Accurate Face Recognition
- Face + Fingerprint + M1 Card Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint & Card Capacity
- 150,000 Event Storage
- Face Anti-Spoofing
- Face Duplicate Check
- Wired & Wi-Fi Connectivity
- Two-Way Audio
- RS-485 & Wiegand Interfaces
- Integrated Access Control & Attendance
- Battery Power Support
- Compact Touchscreen Design
- Hik-ProConnect & HikCentral Compatibility
