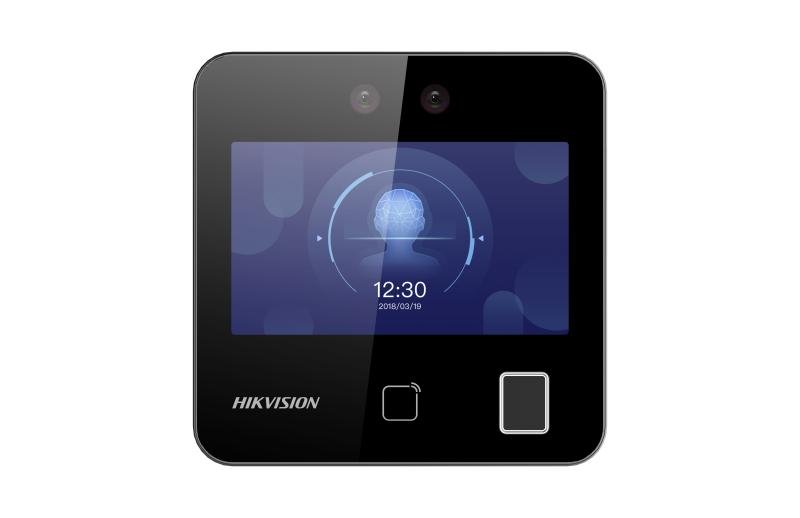

DS-K1T343MFWX-B – Value Series Face Access Terminal
Short Description
- 4.3-inch LCD capacitive touch screen with 480 × 272 resolution
- Multiple authentication methods, including face, fingerprint, and card (M1 card)
- Max. 1500 faces, 3000 fingerprints, 3000 cards, and 150,000 events
- 2 MP wide-angle lens with face recognition distance of 0.3 m to 1.5 m
- Face recognition duration of less than 0.2 s/User with accuracy rate greater than 99%
- Supports face anti-spoofing for enhanced authentication security
- Supports ISAPI, ISUP 5.0, SDK, SIP, and RTSP protocols
- Configuration via the web client
- Supports wired network and Wi-Fi (2.4 GHz, 802.11b/g/n)
- Supports two-way audio with client software, indoor station, and main station
- Supports wiring with lock control, exit button, door contact, RS-485, and Wiegand interfaces
- Supports M1 card reading at 13.56 MHz
- Supports power supply by battery in the bracket
- Supports access control and local time and attendance function
- Supports face duplicate check to prevent multiple people from using the same face
- Supports attendance-only function
- Supports Push SDK
- Supports SIP servers including ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, and Kamailio
- Supports wall mounting and base mounting for indoor installation
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
DS-K1T343MFWX-B – Value Series Face Access Terminal
Product Description
The Hikvision DS-K1T343MFWX-B is a Value Series Face Access Terminal designed for secure access control and local time and attendance applications. It combines face recognition, fingerprint authentication, and M1 card authentication in a compact terminal, making it suitable for offices, commercial buildings, enterprises, financial institutions, and other controlled environments.
The terminal features a 4.3-inch LCD capacitive touch screen with a 480 × 272 resolution and incorporates a 2 MP wide-angle camera system for fast and accurate face recognition. Face recognition is supported at distances from 0.3 m to 1.5 m, with a recognition duration of less than 0.2 seconds per user and an accuracy rate of greater than 99% under controlled testing conditions.
The DS-K1T343MFWX-B supports up to 1,500 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events, providing sufficient local capacity for many small and medium-sized access control and attendance deployments. It also supports face anti-spoofing and face duplicate checking for enhanced identity management.
Key Features
- Value Series Face Access Terminal
- 4.3-inch LCD Capacitive Touch Screen
- 480 × 272 Display Resolution
- 2 MP Wide-Angle Camera
- Face, Fingerprint & M1 Card Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 150,000 Event Capacity
- Face Recognition Distance: 0.3–1.5 m
- Face Recognition Duration: <0.2 s/User
- Face Recognition Accuracy: >99%
- Face Anti-Spoofing
- Face Duplicate Check
- 10/100 Mbps Ethernet
- 2.4 GHz Wi-Fi
- RS-485 & Wiegand
- Lock, Exit Button & Door Contact Interfaces
- Two-Way Audio
- ISAPI & ISUP 5.0
- Local Time & Attendance
- Battery Power Support
- Wall & Base Mounting
- Indoor Application
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T343MFWX-B |
| Series | Value Series |
| Product Type | Face Access Terminal |
| Operating System | Linux |
| Display | 4.3-inch LCD |
| Operation Method | Capacitive Touch Screen |
| Resolution | 480 × 272 |
| Camera | 2 × Lenses |
| Camera Resolution | 2 MP |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
| Face Recognition Distance | 0.3–1.5 m |
| Face Recognition Accuracy | >99% |
| Face Recognition Duration | <0.2 s/User |
| Fingerprint Recognition Duration | <1 s |
| Card Type | M1 Card |
| Card Frequency | 13.56 MHz |
| Network Interface | 1 × RJ-45, 10/100 Mbps |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Network Protocols | SDK, SIP, RTSP, ISAPI, ISUP 5.0 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| RS-485 | 1, Half Duplex, Hikvision |
| Wiegand | 1 × W26/W34 |
| USB | 1 |
| Audio | Built-in Microphone & Loudspeaker |
| Power Supply | 12 VDC, 1 A |
| Battery Power | Supported in Bracket |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 0–90%, Non-Condensing |
| Dimensions | 118.4 × 118.4 × 21.8 mm |
| Installation | Wall Mounting / Base Mounting |
| Application Environment | Indoor |
Specifications are based on Hikvision’s official product information and datasheet.
Applications
The DS-K1T343MFWX-B is suitable for:
- Office Access Control
- Employee Time Attendance
- Corporate Buildings
- Commercial Buildings
- Factories & Warehouses
- Schools & Educational Institutions
- Financial Institutions
- Staff Entrance Management
- Restricted Areas
- Door Access Management
- Integrated Access & Attendance Systems
Advantages
- Fast Face Recognition
- Face + Fingerprint + Card Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 150,000 Event Storage
- Face Anti-Spoofing
- Face Duplicate Check
- Wired & Wi-Fi Connectivity
- RS-485 & Wiegand Support
- Two-Way Audio
- Local Time & Attendance Function
- Battery Power Support
- Compact Touchscreen Design
- Multiple Access Control Interfaces
