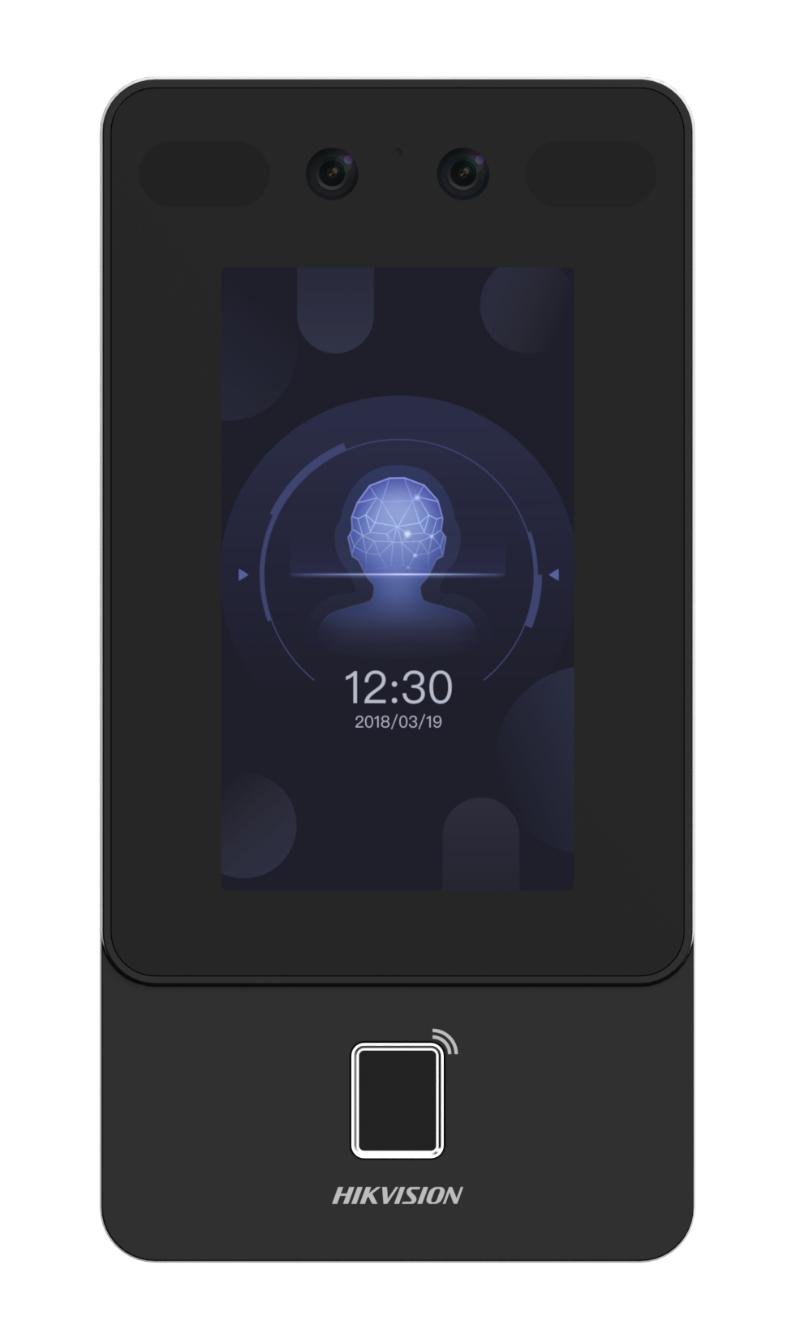

DS-K1T342MFWX – Value Series Face Recognition Terminal
Short Description
- 4.3-inch LCD capacitive touch screen with 272 × 480 resolution
- 2 MP dual-lens wide-angle camera for fast and accurate face recognition
- Multiple authentication methods, including face, fingerprint, M1 card, and password
- Max. 1,500 faces, 3,000 fingerprints, 3,000 cards, and 150,000 events
- Face recognition distance of 0.3–1.5 m
- Face recognition duration < 0.2 s/User with accuracy rate ≥ 99%
- Supports fingerprint recognition with recognition duration < 1 s
- Built-in M1 card reading module with 13.56 MHz frequency
- Supports face anti-spoofing and mask recognition
- Supports audio prompts and time synchronization
- Supports TCP/IP and Wi-Fi (2.4 GHz, 802.11b/g/n)
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via web client
- Supports two-way audio with client software, indoor station, and main station
- Supports RS-485 and Wiegand interfaces
- Supports lock control, exit button, door contact, and tamper detection
- Supports USB interface
- Supports built-in access control and local time attendance functions
- Supports Hik-ProConnect and HikCentral Professional platforms
- IP65-rated design with wall-mount installation
- Supports operation from -30°C to 60°C
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address. Delivery charges are Rs. 500 plus as per distance basis
2-3 Days
Minimum Rs. 500
-
In case of advance payment
Free delivery available
-
In case Cash on delivery
Minimum Rs. 1,500 confirmation deposit is mandatory
2-3 Days
2-3 Days
Free Delivery
Minimum Rs. 500
-
Warranty as per Manufacturer
-
Free 7-Days return
Description
DS-K1T342MFWX – Value Series Face Recognition Terminal
Product Description
The Hikvision DS-K1T342MFWX is a Value Series Face Recognition Terminal designed to provide secure and convenient access control and employee time attendance. It combines face recognition, fingerprint, M1 card, and password authentication in one compact terminal, making it suitable for offices, enterprises, commercial buildings, factories, financial institutions, and other controlled environments.
The terminal features a 4.3-inch capacitive LCD touch screen and a 2 MP dual-lens camera. Its deep learning-based face recognition technology provides fast authentication with a recognition duration of less than 0.2 seconds per user and an accuracy rate of 99% or higher. Face recognition is supported at a distance of 0.3 to 1.5 meters.
The DS-K1T342MFWX supports up to 1,500 faces, 3,000 fingerprints, 3,000 M1 cards, and 150,000 events, making it suitable for employee access and attendance management in a wide range of organizations.
Key Features
- Value Series Face Recognition Terminal
- 4.3-inch LCD Capacitive Touch Screen
- 272 × 480 Display Resolution
- 2 MP Dual-Lens Camera
- Face, Fingerprint, M1 Card & Password Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint Capacity
- 3,000 Card Capacity
- 150,000 Event Capacity
- Face Recognition Distance: 0.3–1.5 m
- Face Recognition Duration: <0.2 s/User
- Face Recognition Accuracy: ≥99%
- Fingerprint Recognition <1 s
- Face Anti-Spoofing
- Mask Recognition
- Audio Prompt
- Time Synchronization
- TCP/IP & 2.4 GHz Wi-Fi
- ISAPI & ISUP 5.0
- Web Client Configuration
- Two-Way Audio
- RS-485 & Wiegand
- Built-in Access Control
- Lock, Exit Button & Door Contact Interfaces
- USB Interface
- Local Time & Attendance
- IP65 Protection
- -30°C to 60°C Operating Temperature
- Wall Mounting
- Hik-ProConnect & HikCentral Professional Support
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T342MFWX |
| Series | Value Series |
| Product Type | Face Recognition Terminal |
| Operating System | Linux |
| Display | 4.3-inch LCD |
| Operation Method | Capacitive Touch Screen |
| Display Resolution | 272 × 480 |
| Camera | 2 MP Dual-Lens |
| Video Standard | PAL / NTSC |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 150,000 |
| Face Recognition Distance | 0.3–1.5 m |
| Face Recognition Duration | <0.2 s/User |
| Face Recognition Accuracy | ≥99% |
| Fingerprint Recognition Duration | <1 s |
| Card Type | M1 Card |
| Card Reading Frequency | 13.56 MHz |
| Face Anti-Spoofing | Supported |
| Mask Recognition | Supported |
| Wired Network | 10/100 Mbps Self-Adaptive |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Network Interface | 1 × RJ-45 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Protocols | ISAPI, ISUP 5.0 |
| Two-Way Audio | Supported |
| Audio Quality | Noise Suppression & Echo Cancellation |
| Power Supply | 12 VDC, 1 A |
| Working Temperature | -30°C to 60°C |
| Working Humidity | 0–90%, Non-Condensing |
| Protection Rating | IP65 |
| Dimensions | 91.3 × 181.3 × 24.5 mm |
| Installation | Wall Mounting |
| Weight | Net: 0.36 kg; Gross: 0.93 kg |
| Platforms | Hik-ProConnect, HikCentral Professional |
Specifications are based primarily on Hikvision’s latest published datasheet, supplemented by Hikvision’s product information.
Applications
The DS-K1T342MFWX is suitable for:
- Office Access Control
- Employee Time Attendance
- Corporate Buildings
- Factories & Warehouses
- Commercial Buildings
- Schools & Educational Institutions
- Financial Institutions
- Staff Entrance Management
- Restricted Areas
- Door Access Management
- Employee Attendance Systems
- Integrated Access & Attendance Systems
Advantages
- Fast and Accurate Face Recognition
- Face + Fingerprint + M1 Card + Password Authentication
- 1,500 Face Capacity
- 3,000 Fingerprint & Card Capacity
- 150,000 Event Storage
- Face Anti-Spoofing
- Mask Recognition
- Wired & Wi-Fi Connectivity
- Two-Way Audio
- RS-485 & Wiegand Interfaces
- Integrated Access Control & Attendance
- IP65 Protection
- Wide -30°C to 60°C Operating Range
- Compact Wall-Mount Design
- Hik-ProConnect & HikCentral Compatibility
