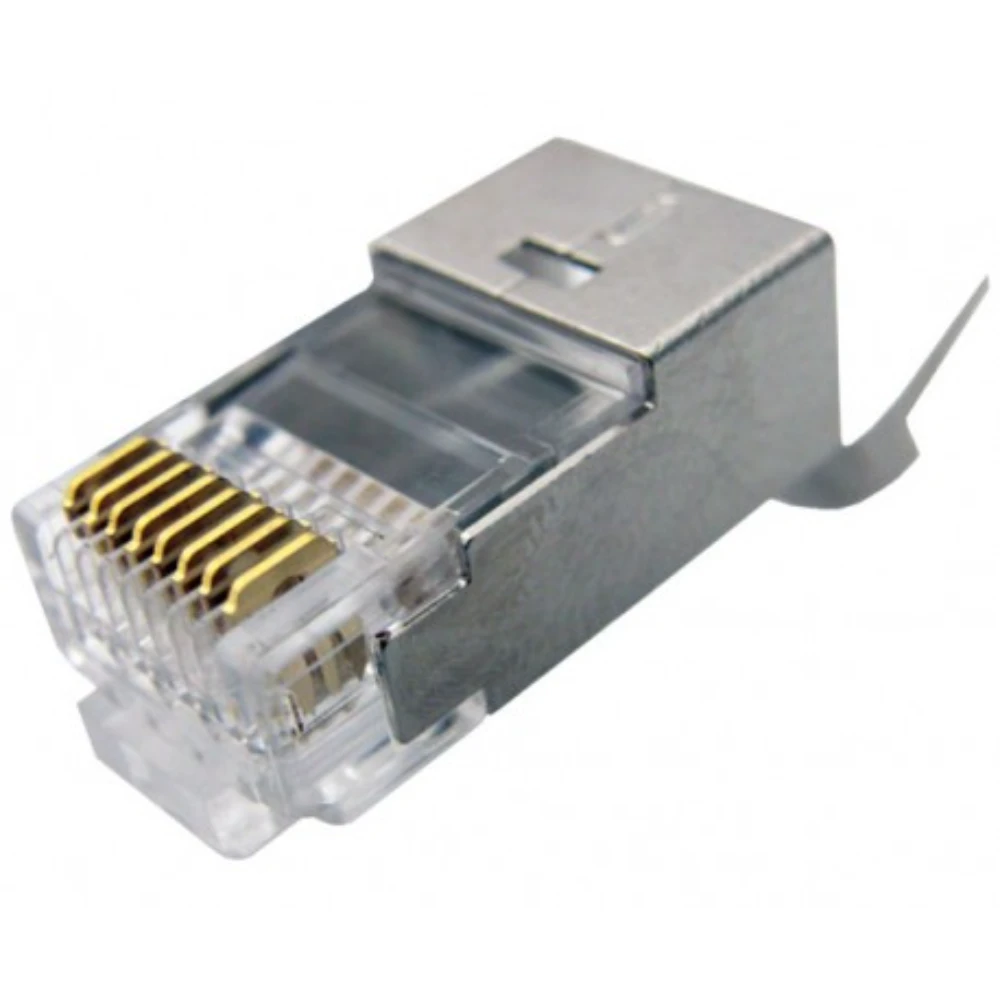

Black Copper CAT7 Connector

”

Features

? Ideal for creating superior high-performance CAT6A patch cables in 10Gigabit Ethernet applications where high-         density routers and switches are employed

? Meets CAT6a performance requirements per ANSI/TIA-568-B.2-10

? Robust shield termination and strain relief allow for a one-step termination process

? The optional slimline boot features integrated strain relief and latch protection

? Selectively plated contacts with 50 micro-inches of gold

? UL 94-V0 plastic components

? RoHS compliant

Electrical Specifications

• UL Applications: 250 Volts AC Max., at 2 AMPS

• Dielectric With Standing Voltage: 500 Volts AC

• Insulation Resistance: 100 M ?

• Termination: Resistance 20m ? Max After

Mechanical Specifications

• Cable-To-Plug Tensile Strength: 20 Pound Min.

• Durability: 200 Matting Cycles

Physical Characteristics

• Housing: Polycarbonate, UL94V-0

• Color: Transparent

• Contact Blade: Copper Alloy

• Conductor: Stranded & Solid Wire, 22 – 26 AWG

(Plug Can Be Used For Wire OD’s Of Under 1.5 mm

& Cable Out Jacket OD Should Be Under 8.0 mm)

• Gold Plating: 50?”

• Shielded Shell: Copper Alloy”
