Description

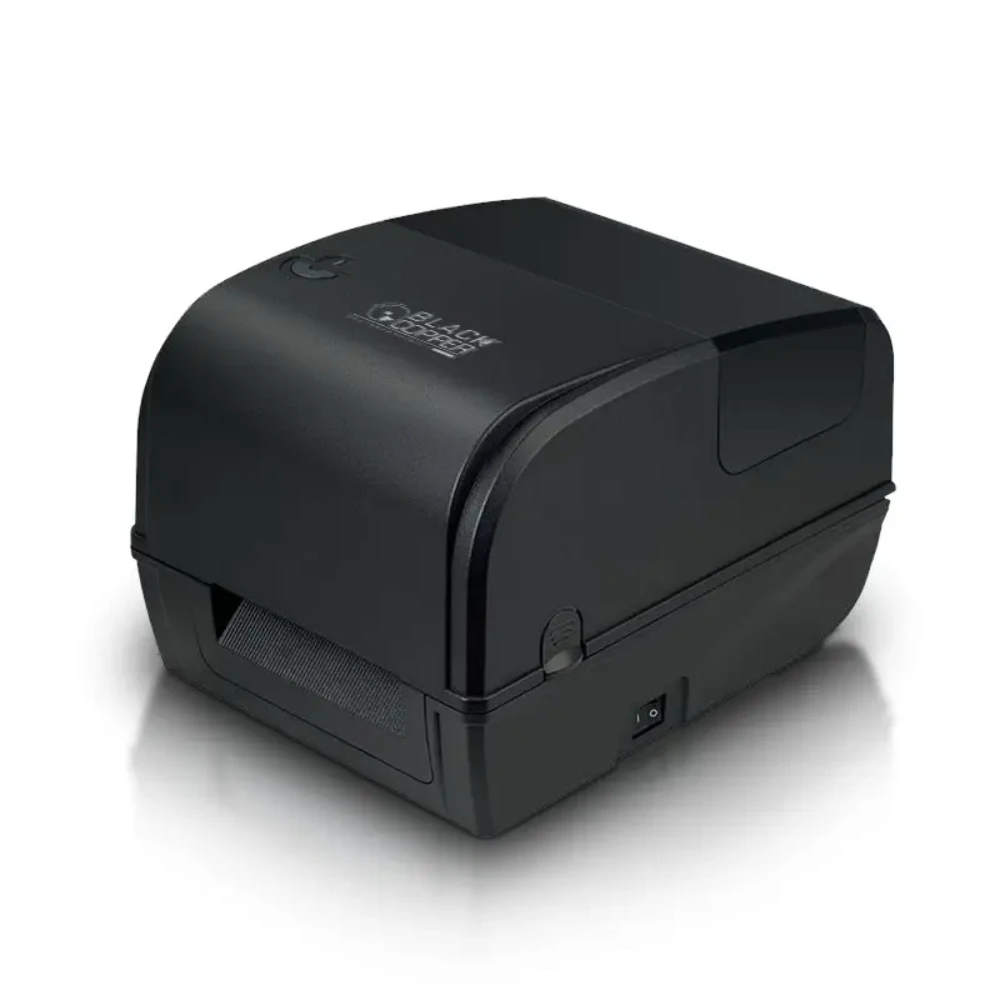

Black Copper BC-LP2500 Description
High-Definition Thermal Barcode Label Printer With LAN Port Interface
Black Copper BC-LP2500 is available in both direct thermal and thermal transfer. It contains a powerful 32-bit processor for fast label throughout and 16MB flash memory for increased storage of fonts and graphics. The printing speed can be up to 127mm per second and with 300 meter ribbon limit downtime by requiring less frequent replacement.
Features
● Dual-motor gear driver design
● Head-up sensor and platen replacement
● 300 meters ribbon capacity
● 200 MHz 32-bit processor with 16MB SDRAM,16MB flash memory
● Free bundled labeling software and windows drivers
Specifications
| Printer Model | BC-LP2500 |
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Thermal Transfer / Direct Thermal |
| Max.print speed | 127 mm/s Max. |
| Max.print width | 108 mm (4.25″) |
| Max.print length | 1778 mm (70″) |
| Media | |
| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 25.4-118mm (1.0”-4.6”) |
| Media thickness | 0.06~0.254 mm (2.36~10mil) |
| Media core diameter | 25.4 ~ 76.2 mm (1 “~ 3 “) |
| Label length | 10 – 1778 mm(0.39″ ~ 70″ ) |
| Label roll capacity | 127 mm (5“) OD (External diameter) |
| Ribbon capacity | Max.300m |
| Ribbon width | 110 mm |
| Ribbon core inner diameter |
25.4 mm (1″) |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb |
| Interface | Standard version: USB+Lan Optional:WIFI/Bluetooth/TF card |
| Sensors | ①Gap sensor ②Cover opening sensor ③Black mark sensor ④Ribbon sensor |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5)
digits add-on, MSI, PLESSEY, POSTNET, China POST |
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Rotation | 0°、90°、180°、270° |
| Emulation | TSPL、EPL、ZPL、DPL |
| Physical Features | |
| Dimension | 299 mm (D) x 235 mm (W) x 198.3 mm (H) |
| Weight | 2.55kg |
| Reliability | |
| Print head life | 30 km |
| Software | |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Android/iOS |
| Power supply | |
| Input：AC 110-240V,1.8A, 50-60Hz | |
| Output：DC 24V, 2.5A, 60W | |
| Options | |
| Factory Options | ① Built-in Ethernet server (10/100 Mbps); ② RS-232C (2400-115200 bps) communication interface;
③ Cutter ④ Peeling machine ⑤ Bluetooth module ⑥ WiFi module |
| Dealer Options | ①External paper roll holder and 1 “paper roll; ②Extension board for external paper roll holder |
| Environmental Conditions | |
| Operation
environment |
5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing |
