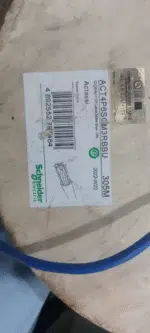

Schneider Electric Actassi – Cable – Category 6 FTP 305m Blue CM

Name: Schneider Electric Actassi - Cable - Category 6 FTP 305m Blue CM
Brand: schneider
SKU: 30074
Availability: InStock

Original price was: ₨ 85,000.Current price is: ₨ 83,000.

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From Rs. 300

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From Rs. 300

Warranty 1 year

More details

Free 30-Day returns

More details

Description

Actassi – cable – category 6 – 4 pair – FTP – 305m – blue – CM

ACT4P6SCM3RBBU

This Actassi copper cable is a 4-pair Category 6 superior product delivering excellent network performance when used in conjunction with other Actassi Category 6 products. The Category 6 cable consists of 4 pairs of solid insulated copper 23 AWG and is UL listed. The Category 6 cable provides a significant margin above the minimum Category 6 near end crosstalk NEXT requirement of ANSI/TIA/EIA-568 and ISO/IEC 11801. This FTP cable length is 305m, with blue sheath colour.

Main
Range	Actassi
Product or component type	Copper cable
Colour tint	Blue
Cable shielding type	F/UTP

Complementary
Type of cable	4 pair cables
Communication network category	6
Minimum return loss	Guaranteed: 19.4 dB at 0.772 MHz Guaranteed: 20 dB at 1 MHz Guaranteed: 23 dB at 4 MHz Guaranteed: 24.5 dB at 8 MHz Guaranteed: 25 dB at 10 MHz Guaranteed: 25 dB at 16 MHz Guaranteed: 25 dB at 20 MHz Guaranteed: 24.3 dB at 25 MHz Guaranteed: 23.6 dB at 31.25 MHz Guaranteed: 21.5 dB at 62.5 MHz Guaranteed: 20.1 dB at 100 MHz
Attenuation	Guaranteed: 1.8 dB @ 0.772 MHz per 100 m cable Guaranteed: 2 dB @ 1 MHz per 100 m cable Guaranteed: 4.1 dB @ 4 MHz per 100 m cable Guaranteed: 5.8 dB @ 8 MHz per 100 m cable Guaranteed: 6.5 dB @ 10 MHz per 100 m cable Guaranteed: 8.2 dB @ 16 MHz per 100 m cable Guaranteed: 9.3 dB @ 20 MHz per 100 m cable Guaranteed: 10.4 dB @ 25 MHz per 100 m cable Guaranteed: 11.7 dB @ 31.25 MHz per 100 m cable Guaranteed: 17 dB @ 62.5 MHz per 100 m cable Guaranteed: 22 dB @ 100 MHz per 100 m cable
Power sum near-end crosstalk [PSNEXT]	Guaranteed: 64 dB at 0.772 MHz Guaranteed: 62.3 dB at 1 MHz Guaranteed: 53.3 dB at 4 MHz Guaranteed: 48.8 dB at 8 MHz Guaranteed: 47.3 dB at 10 MHz Guaranteed: 44.3 dB at 16 MHz Guaranteed: 42.8 dB at 20 MHz Guaranteed: 41.3 dB at 25 MHz Guaranteed: 39.9 dB at 31.25 MHz Guaranteed: 35.4 dB at 62.5 MHz Guaranteed: 32.3 dB at 100 MHz
Near end crosstalk [NEXT]	Guaranteed: 67 dB at 0.772 MHz Guaranteed: 65.3 dB at 1 MHz Guaranteed: 56.3 dB at 4 MHz Guaranteed: 51.8 dB at 8 MHz Guaranteed: 50.3 dB at 10 MHz Guaranteed: 47.3 dB at 16 MHz Guaranteed: 45.8 dB at 20 MHz Guaranteed: 44.3 dB at 25 MHz Guaranteed: 42.9 dB at 31.25 MHz Guaranteed: 38.4 dB at 62.5 MHz Guaranteed: 35.3 dB at 100 MHz
Input impedance	100 Ohm (+/- 6) at 1…100 MHz
Maximum loop resistance	73.2 Ohm
Capacitance unbalance	330 pF / 100 m
Maximum resistance unbalance	5 %
Wire insulation material	PE
Conductor material	Solid bare copper
AWG gauge	AWG 24
Cable outer diameter	4.9 mm
Cable length	305 m
